AUDIO / VIDEO  STEREO JACK ADAPTER ASSEMBLY(for RHD)  INSTALLATION

86190C 1.INSTALL NO. 1 STEREO JACK ADAPTER ASSEMBLY

a.

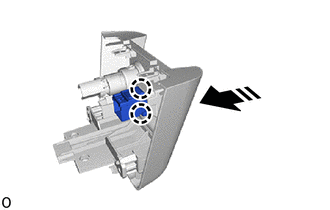

for Bench Seat Type:

i.

0,0 0,0 false

Install in this Direction

Attach the claw to install the No. 1 stereo jack adapter assembly as shown in the illustration.

b.

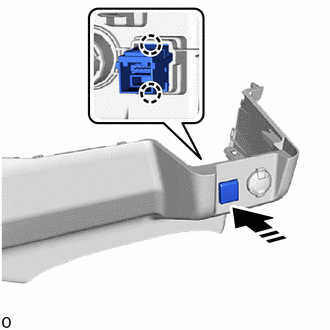

for Separate Seat Type:

i.

0,0 0,0 false

Install in this Direction

Attach the claw to install the No. 1 stereo jack adapter assembly as shown in the illustration.

55524H 2.INSTALL SWITCH BASE HOLE COVER (for Separate Seat Type)

55646 3.INSTALL NO. 3 INSTRUMENT PANEL UNDER COVER (for Bench Seat Type)

58534E 4.INSTALL CENTER FLOOR CARPET COVER LH (for Bench Seat Type)

58533C 5.INSTALL CENTER FLOOR CARPET COVER RH (for Bench Seat Type)

58802E 6.INSTALL FRONT CONSOLE BOX SUB-ASSEMBLY (for Bench Seat Type, w/ Console Tray)

58839A 7.INSTALL CONSOLE BOX HOLE COVER (for Bench Seat Type, w/ Console Tray)

55438A 8.INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL RETAINER (for Bench Seat Type)

55642 9.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER (for Bench Seat Type)

55318C 10.INSTALL INSTRUMENT SIDE PANEL LH (for Bench Seat Type)

55012A 11.INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (for Bench Seat Type)

55632B 12.INSTALL NO. 2 INSTRUMENT PANEL UNDER TRAY SUPPORT (for Bench Seat Type)

62112 13.INSTALL COWL SIDE TRIM BOARD LH (for Bench Seat Type)

67914B 14.INSTALL FRONT DOOR SCUFF PLATE LH (for Bench Seat Type)

67912A 15.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH (for Bench Seat Type)

73900 16.INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (for Bench Seat Type)

55433B 17.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL (for Bench Seat Type)

55044C 18.INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for Bench Seat Type)

55432D 19.INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL (for Bench Seat Type)

77306 20.INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Bench Seat Type)

53601 21.INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (for Bench Seat Type)

55641 22.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER (for Bench Seat Type)

55317A 23.INSTALL INSTRUMENT SIDE PANEL RH (for Bench Seat Type)

55011A 24.INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (for Bench Seat Type)

55631A 25.INSTALL NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER (for Bench Seat Type)

62111C 26.INSTALL COWL SIDE TRIM BOARD RH (for Bench Seat Type)

67913B 27.INSTALL FRONT DOOR SCUFF PLATE RH (for Bench Seat Type)

67911B 28.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE RH (for Bench Seat Type)

29.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Bench Seat Type)

30. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (for Bench Seat Type)

31.PERFORM DIAGNOSTIC SYSTEM CHECK (for Bench Seat Type)

32.CHECK SRS WARNING LIGHT (for Bench Seat Type)
