7GR-FKS FUEL  FUEL INJECTOR(for Port Injection)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during port fuel injector assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Battery terminal is disconnected/reconnected Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system (Click here)
·

Replacement of port fuel injector assembly

·

Replacement of fuel pressure sensor (fuel delivery pipe with sensor assembly)

·

Replacement of throttle body with motor assembly

·

Cleaning the deposits from the throttle body with motor assembly


Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative when not Performed Necessary Procedures Link
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative when not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



CAUTION:
·
A360563

Never perform work on fuel system components near any possible ignition sources.

·

Vaporized fuel could ignite, resulting in a serious accident.

·
A360564

Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.

·

Sparks could cause vaporized fuel to ignite, resulting in a serious accident.



PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 23800 5.REMOVE FUEL DELIVERY WITH SENSOR PIPE ASSEMBLY

NOTICE:
·

Do not remove the fuel pressure sensor from the fuel delivery with sensor pipe assembly.

·

If a fuel pressure sensor is removed, replace the fuel delivery with sensor pipe assembly (fuel pressure sensor) with a new one.



a.
A437982

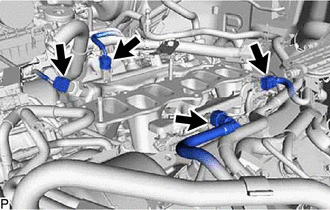

Disconnect the 3 connectors.


b.

Disconnect the No. 1 fuel tube sub-assembly from the fuel delivery with sensor pipe assembly.

Click hereEngine / Hybrid System>7GR-FKS (FUEL)>FUEL SYSTEM>PRECAUTION


c.
A437983

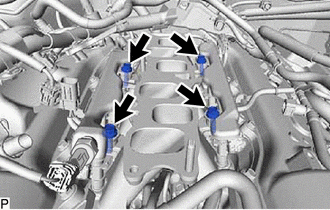

Remove the 4 bolts and fuel delivery with sensor pipe assembly with the 6 fuel injector assemblies from the intake manifold.

NOTICE:
·

Be careful not to drop the port fuel injector assemblies when removing the fuel delivery with sensor pipe assembly.

·

When removing the fuel delivery with sensor pipe assembly, hold the pipe by both ends and pull it straight upward.




d.

Remove the 4 No. 1 delivery pipe spacers from the intake manifold.


e.

Remove the 6 injector vibration insulators from the intake manifold.


Hide 23250F 6.REMOVE PORT FUEL INJECTOR ASSEMBLY

NOTICE:
A361004

For reinstallation, attach a tag or label to the injector shaft.


a.

for Bank 1:

i.
A361002

Detach the clamp from the fuel delivery with sensor pipe assembly.


ii.

Remove the 3 port fuel injector assemblies from the fuel delivery with sensor pipe assembly.


iii.
A361003

Disconnect the 3 connectors and remove the 3 port fuel injector assemblies.


iv.
A273065C04
2.917,1.094 3,0.667 3,0.667 3.146,0.667 false 3.198,0.604 3.396,0.823 0.198,0.219 10 false *1
*1 O-ring


Remove the O-ring from the port fuel injector assembly.



b.

for Bank 2:

i.
A361000

Detach the clamp from the fuel delivery with sensor pipe assembly.


ii.

Remove the 3 port fuel injector assemblies from the fuel delivery with sensor pipe assembly.


iii.
A361001

Disconnect the 3 connectors and remove the 3 port fuel injector assemblies.


iv.
A273065C04
2.917,1.094 3,0.667 3,0.667 3.146,0.667 false 3.198,0.604 3.396,0.823 0.198,0.219 10 false *1
*1 O-ring


Remove the O-ring from the port fuel injector assembly.
