7GR-FKS INTAKE / EXHAUST  INTAKE MANIFOLD  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during intake manifold removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Battery terminal is disconnected/reconnected Memorize steering angle neutral point Parking assist monitor system (Click here)
·

Replacement of throttle body with motor assembly

·

Cleaning the deposits from the throttle body with motor assembly

·

Gas leak from exhaust system is repaired


Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative when not Performed Necessary Procedures Link
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative when not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 2. PRECAUTION

NOTICE:

After turning the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 17881 12.REMOVE NO. 1 AIR CLEANER HOSE

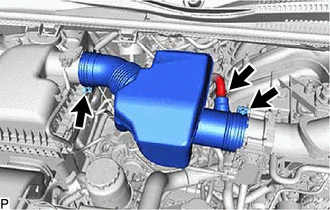

a.
A436919

Slide the clamp and disconnect the No. 2 PCV hose from the No. 1 air cleaner hose.


b.

Loosen the 2 hose clamps.


c.

Remove the No. 1 air cleaner hose.


Hide 17126 13.REMOVE NO. 2 SURGE TANK STAY

a.

for Manual Transmission:

i.

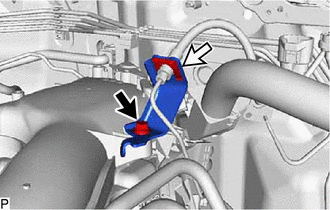

A436921C01
1.292,0.979 1.448,1.177 0.156,0.198 10 false .
V100135

Bolt
V100136

Clip


Remove the bolt and clip and disconnect the flexible hose bracket.


ii.
A436922C01

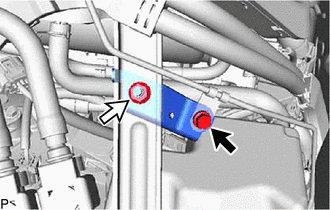

2.25,1.333 2.406,1.531 0.156,0.198 10 false .
V100135

Bolt
V100136

Nut


w/o Secondary Air Injection System:

Remove the bolt and nut and clutch hose bracket.


iii.

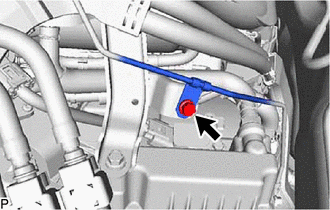

A443459

w/ Secondary Air Injection System:

Remove the bolt.



b.

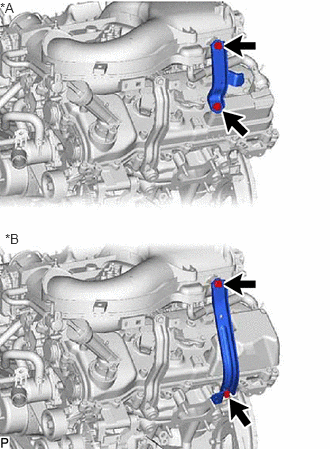

A437881C01
0,0 0.313,0.156 0.313,0.156 10 false *A 0.052,2.406 0.365,2.563 0.313,0.156 10 false *B
*A w/ Secondary Air Injection System
*B w/o Secondary Air Injection System


Remove the 2 bolts and No. 2 surge tank stay from the cylinder head LH and intake air surge tank assembly.


Hide 17125 14.REMOVE NO. 1 SURGE TANK STAY

a.
A437917

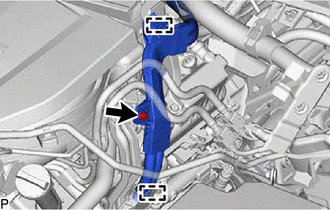

Remove the bolt and disconnect the 2 wire harness clamps.


b.

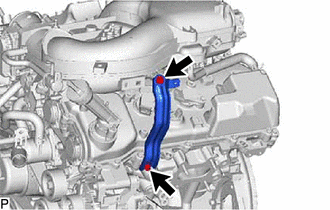

A437882

Remove the 2 bolts and No. 1 surge tank stay from the cylinder head LH and intake air surge tank assembly.


Hide 22267A 15.REMOVE THROTTLE BODY BRACKET

a.
A443462

w/ Secondary Air Injection System:

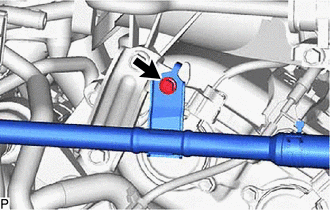

Remove the bolt and air tube assembly from the throttle body bracket.


b.
A436926

Remove the 2 bolts and throttle body bracket from the timing chain or belt cover sub-assembly and intake air surge tank assembly.


Hide 17190 17.REMOVE INTAKE AIR SURGE TANK ASSEMBLY

a.
A436925

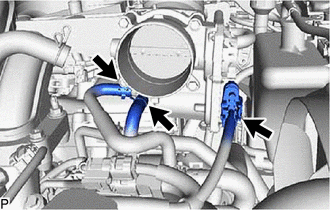

Disconnect the throttle body with motor connector from the throttle body with motor assembly.


b.

Slide the 2 clamps and disconnect the No. 4 water by-pass hose and No. 5 water by-pass hose from the throttle body with motor assembly.


c.
A436923

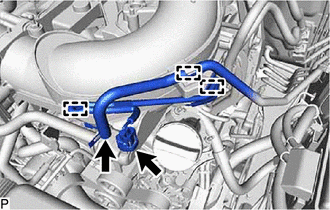

Detach the 2 wire harness clamps and disconnect the purge VSV connector from the purge VSV.


d.

Detach the clamp from the intake air surge tank assembly.


e.

Slide the clamp and disconnect the fuel vapor feed hose from the purge VSV.


f.
A436924

Detach the clamp to disconnect the No. 1 fuel pipe sub-assembly and No. 2 fuel pipe sub-assembly from the intake air surge tank assembly.


g.
A436927

Remove the 2 bolts to disconnect the engine wire from the intake air surge tank assembly.


h.
A441047

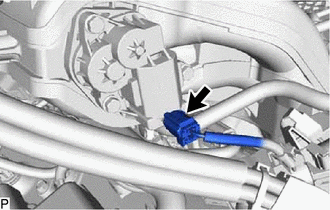

Disconnect the intake air control valve actuator connector from the intake air control valve actuator.


i.

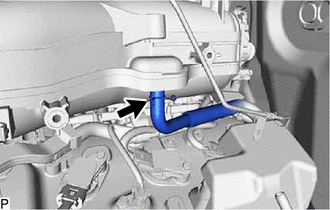

A437884

Slide the clamp and disconnect the PCV hose from the intake air surge tank assembly.


j.

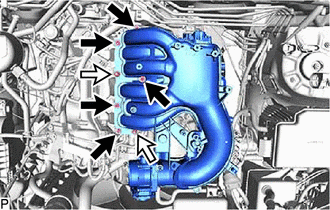

A437885C01
0,0 0,0 false
V100135

Bolt
V100136

Nut


Remove the 2 nuts, 5 bolts and intake air surge tank assembly from the intake manifold.


k.

Remove the air surge tank to intake manifold gasket from the intake air surge tank assembly.


Hide 17111 19.REMOVE INTAKE MANIFOLD

a.

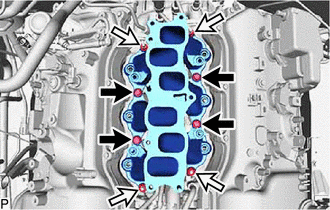

A437886C01
0,0 0,0 false
V100135

Bolt
V100136

Nut


Remove the 4 nuts, 4 bolts and intake manifold from the cylinder head sub-assembly and cylinder head LH.


b.

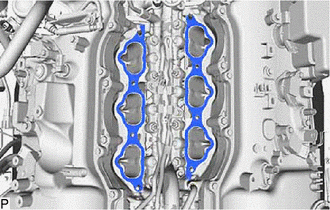

A437887

Remove the 2 No. 1 intake manifold to head gaskets from the cylinder head sub-assembly and cylinder head LH.
