RM35X0E _53 Suspension _078885 TIRE PRESSURE MONITORING _0388791 TIRE PRESSURE WARNING RECEIVER(for Standard Roof) A

TIRE PRESSURE MONITORING TIRE PRESSURE WARNING RECEIVER(for Standard Roof) INSTALLATION

PROCEDURE

Hide Display 89760C 1.INSTALL TIRE PRESSURE WARNING ECU AND RECEIVER

a.

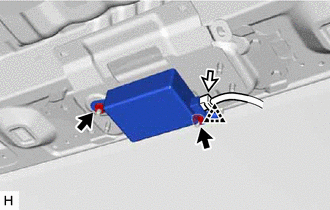

C419078C01

0,0 0,0 false

	Nut
	Connector

for Wagon:

i.

Connect the connector.

ii.

Attach a clip to temporarily install the tire pressure warning ECU and receiver.

iii.

Install the 2 nuts.

Torque:: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

b.

except Wagon:

i.

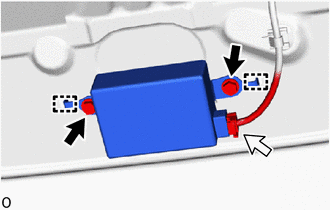

C413102C02

0,0 0,0 false

	Bolt
	Connector

Connect the connector.

ii.

Attach the 2 guides to temporarily install the tire pressure warning ECU and receiver.

iii.

Install the 2 bolts.

Torque:: 12 N*m (122 kgf*cm, 9 ft.*lbf)

Hide Display 63320E 2.INSTALL REAR ROOF HEADLINING ASSEMBLY

·

for Semi-trim: Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>INSTALLATION201906,202208,_58,_078375,_0380060,RM100000001IXV3,202208,202310,_58,_078375,_0380060,RM1000000024I17,202310,999999,_58,_078375,_0380060,RM100000002EPY4,

·

for Full-trim: Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5,202208,202310,_58,_078375,_0381233,RM1000000024I1A,202310,999999,_58,_078375,_0381233,RM100000002EPY6,

·

for Wagon:Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>INSTALLATION201906,202310,_58,_078375,_0396474,RM100000001IHQ6,202310,999999,_58,_078375,_0396474,RM100000002EPY2,

Hide Display 3. REGISTRATION OF TRANSMITTER ID

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>REGISTRATION201906,999999,_53,_078885,_0382739,RM100000001IHE1,

Hide Display 4.INSPECT TIRE PRESSURE WARNING SYSTEM

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>TEST MODE PROCEDURE201902,999999,_53,_078885,_0382739,RM100000001G6WG,

Hide Display 5.PERFORM INITIALIZATION

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>INITIALIZATION201906,999999,_53,_078885,_0382739,RM100000001IHE2,
