RM35X0E
_51
Engine / Hybrid System
_078884
CRUISE CONTROL
_0384730
MILLIMETER WAVE RADAR SENSOR
A
CRUISE CONTROL MILLIMETER WAVE RADAR SENSOR INSTALLATION
CAUTION / NOTICE / HINT
- NOTICE:
-
If the millimeter wave radar sensor assembly has been struck or dropped, replace the millimeter wave radar sensor assembly with a new one.
PROCEDURE
88211B

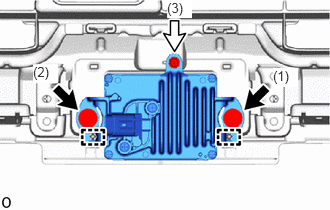

1.INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY
a.
2.844,0.708 3.104,0.906
0.26,0.198
10
true
(1)
0.344,0.667 0.604,0.865
0.26,0.198
10
true
(2)
1.74,0 2,0.188
0.26,0.188
10
true
(3)
|
Bolt |
|
Screw |
Attach the guide.
b.
Temporarily install the millimeter wave radar sensor assembly with the 2 bolts and screw.
c.
Tighten the 2 bolts and screw in the order shown in the illustration.
- Torque:
- Bolt : 2.5 N*m (25 kgf*cm, 22 in.*lbf)
53101
2.INSTALL RADIATOR GRILLE SUB-ASSEMBLY
86790B
3.ADJUST FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)
4.ADJUST MILLIMETER WAVE RADAR SENSOR
a.
When the millimeter wave radar sensor assembly is replaced with a new one, adjustment of the radar sensor beam axis must be performed.
