EXTERIOR PANELS / TRIM  RADIATOR GRILLE(except Wagon)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:

A bolt without a torque specification is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS


PROCEDURE

Hide 53101 1.INSTALL RADIATOR GRILLE SUB-ASSEMBLY

a.

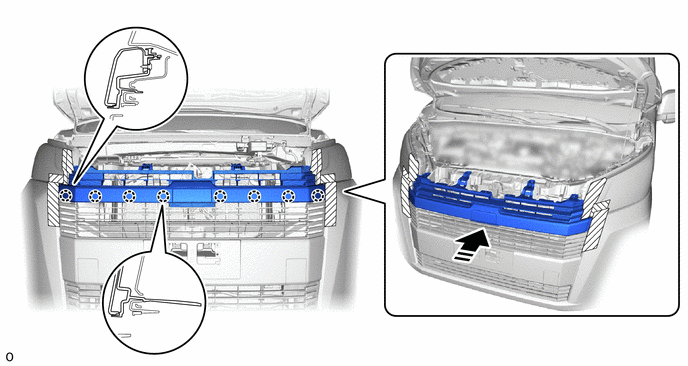

Attach the claw and install the radiator grille sub-assembly as shown in the illustration.

B524319C01
0,0 0,0 false
V113147

Install in this Direction - -



b.

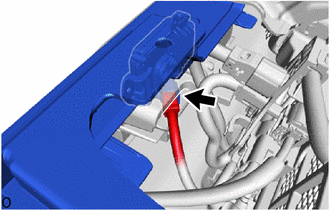

B524311

w/ Pre-collision System:

i.

Connect the connector.



c.

Remove the protective tape.


d.

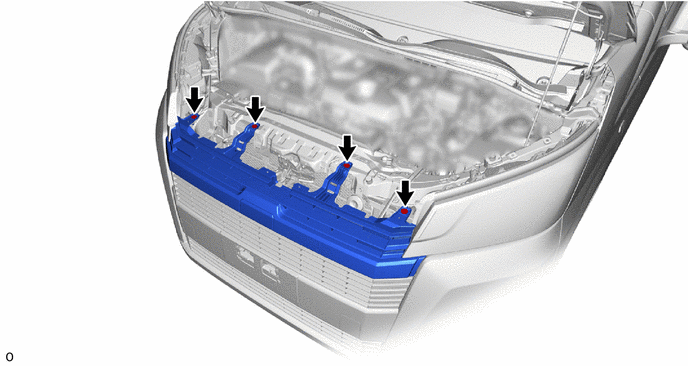

Install the 4 bolts.

B524309


Hide 53106B 2.INSTALL RADIATOR COVER SUB-ASSEMBLY

a.
B524486C01
0,0 0,0 false
V113147

Install in this Direction

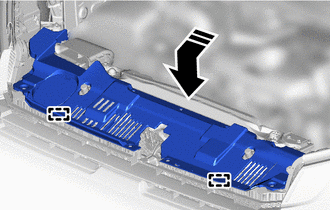

Attach the guide and install the radiator cover sub-assembly as shown in the illustration.


b.

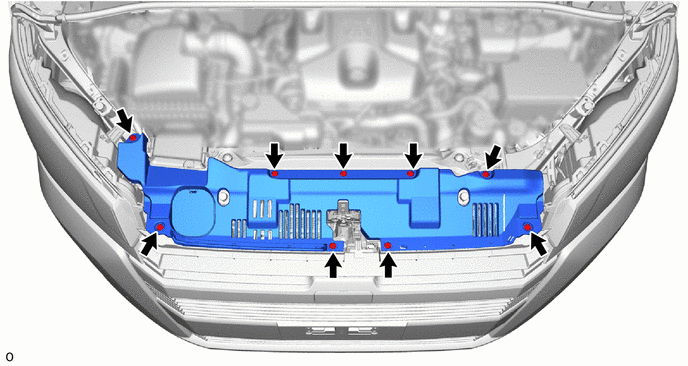

Install the 9 clips.

B524308
