RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0397097 RADIATOR GRILLE(for Wagon) A

EXTERIOR PANELS / TRIM  RADIATOR GRILLE(for Wagon)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:

A bolt without a torque specification is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS


PROCEDURE

Hide 53101 1.INSTALL RADIATOR GRILLE SUB-ASSEMBLY

a.

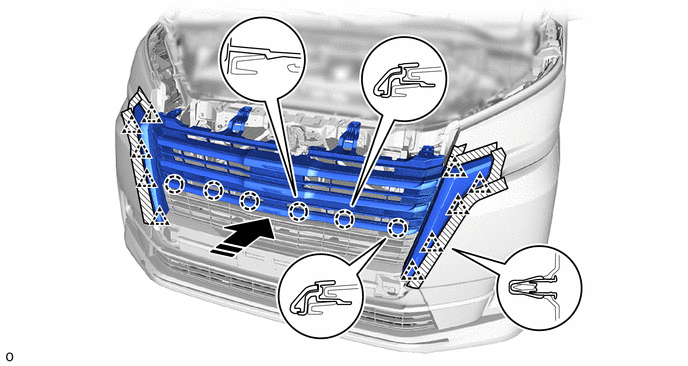

Attach the 10 clips and claw and install the radiator grille sub-assembly as shown in the illustration.

B550127
0,0 0,0 false
V113147

Install in this Direction - -



b.
B550122C02
1.917,1.635 2.146,1.833 0.229,0.198 12 true *A 1.052,1.698 1.281,1.896 0.229,0.198 12 true *B
*A w/ Pre-collision System
*B w/ Panoramic View Monitor System


w/ Pre-collision System:

i.

Connect the connector.



c.

w/ Panoramic View Monitor System:

i.

Connect the connector.



d.

Remove the protective tape.


e.

Install the 4 bolts.

B551939


Hide 52128B 2.INSTALL FRONT BUMPER HOLE COVER LH

a.
B550121
0,0 0,0 false
V113147

Install in this Direction
V100135

Fall Prevention Hook

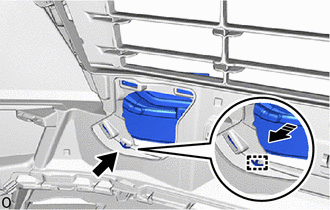

Connect the fall prevention hook as shown in the illustration.


b.
B550119
0,0 0,0 false
V113147

Install in this Direction

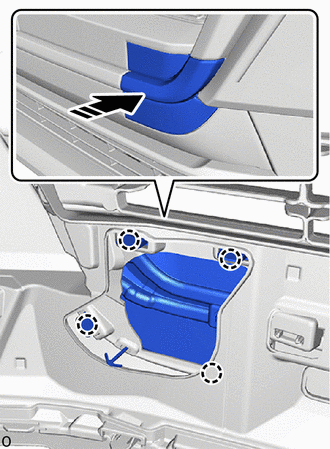

Attach the claw and install the front bumper hole cover LH as shown in the illustration.


Hide 52127D 3.INSTALL FRONT BUMPER HOLE COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 53106B 4.INSTALL RADIATOR COVER SUB-ASSEMBLY

a.
B550117
0,0 0,0 false
V113147

Install in this Direction

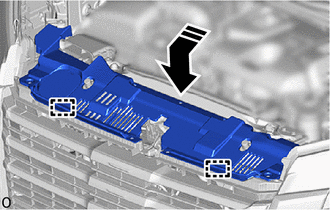

Attach the guide and install the radiator cover sub-assembly as shown in the illustration.


b.

Install the 9 clips.

B550115
