SUPPLEMENTAL RESTRAINT SYSTEMS  SIDE AIRBAG SENSOR(for Front Door)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 8983AA 1.INSTALL SIDE AIRBAG PRESSURE SENSOR LH

a.

Check that the ignition switch is off.


b.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:
·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.




c.

Connect the airbag connector.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:

·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR




d.

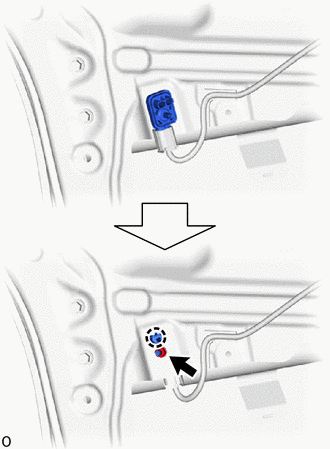

B524594

Attach the claw to hold the side airbag pressure sensor LH in place.

NOTICE:
·

If the side airbag pressure sensor LH has been dropped, replace it with a new one.

·

When installing the side airbag pressure sensor LH, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

·

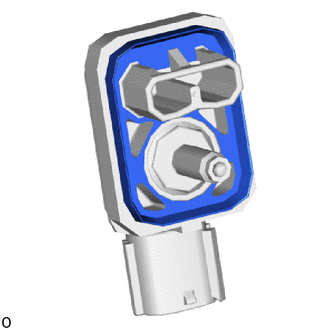

B520059

Waterproof rubber seals that are damaged on the side airbag pressure sensor LH (blue area in illustration) cannot be reused.




e.

Install the nut.

Torque:
9.0 N*m (92 kgf*cm, 80 in.*lbf)


f.

Check that there is no looseness in the installation parts of the side airbag pressure sensor LH.


Hide 4.INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY

Hide 5.INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY

Hide 8. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
