RM35X0E _58 Vehicle Interior _079257 SUPPLEMENTAL RESTRAINT SYSTEMS _0384938 FRONT PASSENGER AIRBAG ASSEMBLY A

SUPPLEMENTAL RESTRAINT SYSTEMS  FRONT PASSENGER AIRBAG ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 73960A 1.INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

a.

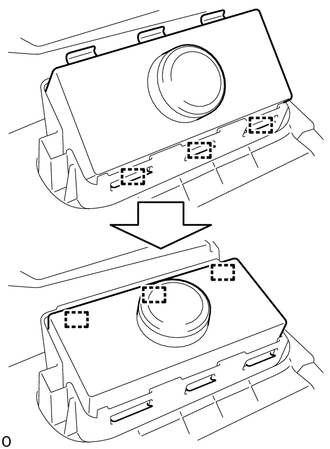

B528872

Attach the 3 hooks.


b.

Push in the instrument panel passenger airbag assembly to attach the 3 hooks.


c.
B528870

Install the 2 screws.


d.

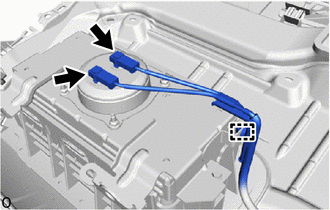

B524650

Connect the 2 airbag connectors.

NOTICE:
·

When connecting any airbag connector, take care not to damage the airbag wire harness.

·

Be sure to connect the connectors to each corresponding color.



HINT:

Refer to How to Connect or Disconnect Airbag Connector:

·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR




e.

Attach the wire harness clamp.


Hide 4. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
