RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0398437 REAR SEAT OUTER BELT ASSEMBLY(for Manual Captain Seat) A

SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY(for Manual Captain Seat)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the rear seat 3 point type belt assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures not Performed Link
Disconnect cable from negative (-) battery terminal Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system (Click here)

HINT:
·

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

The procedure listed below is a representative example.

·

Use the same procedure for first row and second row, unless otherwise specified.



PROCEDURE

Hide 1. PRECAUTION (for First Row)

CAUTION:
B394719

Be sure to read Precaution thoroughly before servicing.

·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION



NOTICE:
·

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

If the pretensioner has been deployed, replace any damaged parts as necessary.



Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for First Row)

·

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL

·

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL


CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



Hide 72880C 14.REMOVE LH SEAT NO. 1 SEAT ARMREST ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 73390 16.REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH (ANCHOR)

a.

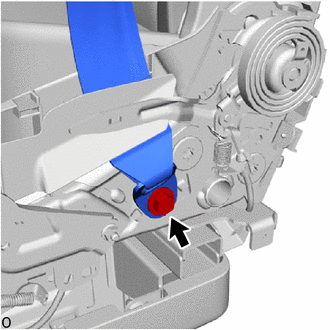

B548276

Remove the bolt and anchor of the rear seat 3 point type belt assembly LH.


Hide 79077G 23.REMOVE NO. 2 SEAT INNER LEG COVER SUB-ASSEMBLY RH (for Second Row, w/o Power Supply Unit)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>DISASSEMBLY

Hide 73390 29.REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH

a.

for First Row:

i.
B553619

Disconnect the connector.



b.
B553003

Remove the 3 screws.


c.

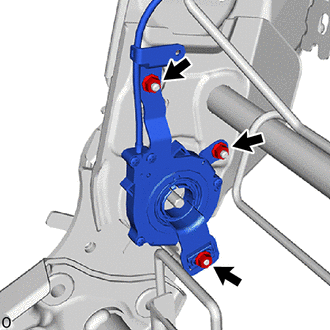

B553001

Remove the 3 nuts and reclining sensor.


d.

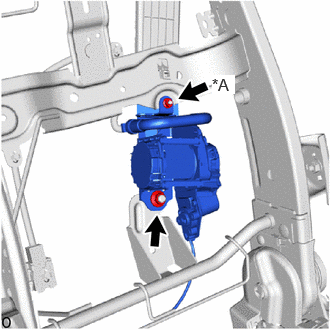

B553004C01
2.208,0.781 2.448,0.979 0.24,0.198 12 true *A
*A for First Row


for First Row:

i.

Remove the 2 nuts.



e.

for Second Row:

i.

Remove the nut.



f.

for LH Side:

i.
B553005C01
1.667,0.417 2.188,0.271 true 2.323,1.219 2.844,1.073 true 2.354,2.219 2.875,2.073 true 1.188,2.063 1.188,2.448 true 1.49,1.99 1.49,2.448 1.49,2.448 0.771,2.448 true 2.208,0.146 2.521,0.302 0.313,0.156 10 false *a 0.573,2.344 0.76,2.542 0.188,0.198 10 true *b 2.125,1.125 2.302,1.323 0.177,0.198 10 false *a 2.156,2.135 2.333,2.333 0.177,0.198 10 false *a
*a Clamp
*b Guide


for First Row:

Detach the clamp.


ii.

Detach the guide and remove the rear seat 3 point type belt assembly LH.



g.

for RH Side:

i.
B553006C01
0.677,0.781 0.99,1.031 true 2.688,0.583 3.021,0.521 true 0.563,1.802 0.563,2.448 true 1.719,2 1.719,2.385 true 2.125,0.365 1.719,0.5 true 3.031,0.396 3.208,0.594 0.177,0.198 10 true *a 1.646,2.396 1.833,2.594 0.188,0.198 10 true *b 1,1.01 1.177,1.208 0.177,0.198 10 false *a 0.49,2.469 0.667,2.667 0.177,0.198 10 false *a 2.135,0.24 2.313,0.438 0.177,0.198 10 true *a
*a Clamp
*b Guide


for First Row:

Detach the clamp.


ii.

Detach the guide and remove the rear seat 3 point type belt assembly RH.
