RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389010 FRONT CENTER SEAT OUTER BELT(for Sliding Bench Seat Type) A

SEAT BELT FRONT CENTER SEAT OUTER BELT(for Sliding Bench Seat Type) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front seat 3 point type belt assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 1. PRECAUTION (w/ Front Seat Side Airbag)

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3.REMOVE FRONT SEAT ASSEMBLY RH

Remove the front seat assembly RH.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REMOVAL201906,999999,_58,_078601,_0381329,RM100000001ITAH,

w/ Center Seatback Board:

1.708,0.354 2.198,0.25 true 2.229,0.177 2.542,0.333 0.313,0.156 10 false *1

*1	Seat Lock Band Assembly
	Fold in this Direction

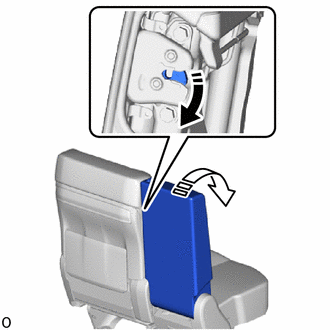

Pull the seat lock band assembly and move the center seatback assembly as shown in the illustration.

for RHD, w/ Center Seatback Board:

0,0 0,0 false

	Pull up in this Direction
	Fastening Tape

Detach the fastening tape and pull up the seatback cover as shown in the illustration.

ii.

0,0 0,0 false

	Release in the this Direction
	Fold in the this Direction

Release the front seatback lock assembly and fold the center seatback assembly as shown in the illustration.

Hide Display 72329D 4.REMOVE SEAT ADJUSTER BOLT COVER RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0030,

Hide Display 72525M 5.REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0031,

Hide Display 71811T 6.REMOVE FRONT SEAT CUSHION SHIELD RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0010,

Hide Display 73120 7.REMOVE FRONT SEAT 3 POINT TYPE BELT ASSEMBLY LH (SEAT ANCHOR)

1.521,1.375 2.24,1.146 true 0.25,1.75 0.646,1.375 true 2.24,1.01 2.51,1.229 0.271,0.219 12 true *A 0.063,1.75 0.333,1.969 0.271,0.219 12 true *A

for Wagon

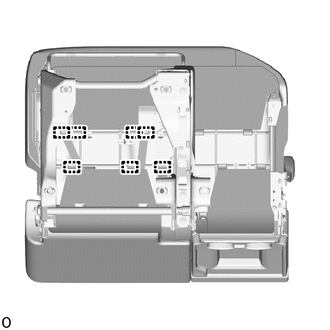

Detach the hook.

for Van, w/ Seat Belt Warning System:

0.781,0.594 1.365,0.688 1.365,0.688 1.104,0.323 true 1.375,0.573 1.635,0.802 0.26,0.229 12 true *A

*A	w/ Center Seat Occupant Detection Sensor

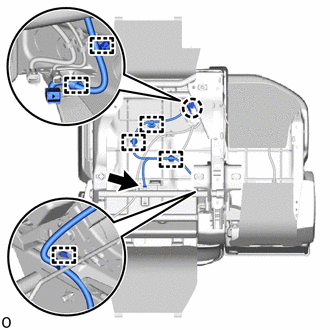

Detach the claw and clamp.

ii.

Disconnect the connector.

w/ Center Seat Occupant Detection Sensor:

Disconnect the connector.

for Wagon:

Disconnect the connector.

ii.

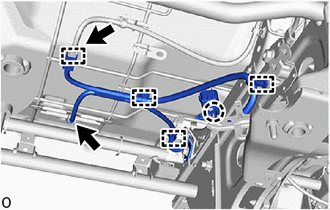

Detach the claw and clamp.

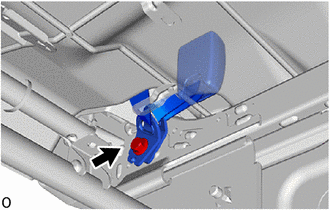

Remove the bolt.

0,0 0,0 false

Band

Detach the band and remove the seat anchor of the front seat 3 point type belt assembly LH and front seat inner belt assembly RH.

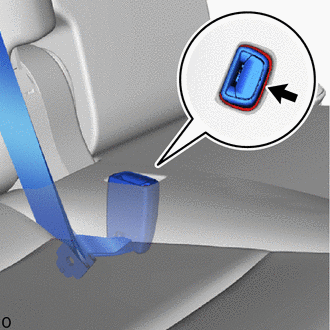

Hide Display 73178A 8.REMOVE SEAT BELT ANCHOR COVER CAP

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0003,

Hide Display 73373 9.REMOVE REAR SEAT SHOULDER BELT COVER

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0004,

Hide Display 71705F 10.REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY RH (for Wagon)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0047,

Hide Display 71073A 11.REMOVE FRONT SEATBACK COVER SUB-ASSEMBLY RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0026,

Hide Display 79158 12.REMOVE SEATBACK COVER PLATE RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0043,

Hide Display 71551A 13.REMOVE FRONT SEATBACK PAD RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0027,

Hide Display 74810L 14.REMOVE FRONT PROTECTOR ASSEMBLY RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0037,

Hide Display 71H75B 15.REMOVE RH SEATBACK FRAME RECLINING ADJUSTER INSIDE COVER

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>DISASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAL_01_0002,

Hide Display 73120 16.REMOVE FRONT SEAT 3 POINT TYPE BELT ASSEMBLY LH

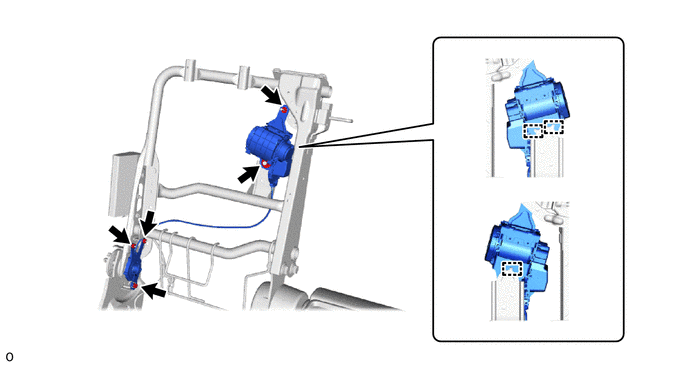

Remove the 3 nuts A and reclining sensor of the front seat 3 point type belt assembly LH.

4.625,0.479 5.021,0.813 0.396,0.333 12 false *A 4.646,2.021 4.99,2.292 0.344,0.271 12 false *B 2.542,0.677 2.719,0.875 0.177,0.198 10 true B 2.271,1.917 2.448,2.115 0.177,0.198 10 true B 0.927,2.188 1.104,2.385 0.177,0.198 10 true A 1.5,1.948 1.677,2.146 0.177,0.198 10 true A 1.74,2.99 1.917,3.188 0.177,0.198 10 true A

for LHD

for RHD

Remove the 2 nuts B and retractor of the front seat 3 point type belt assembly LH.

Detach the guide and remove the front seat 3 point type belt assembly LH.
