RM35X0E _51 Engine / Hybrid System _078884 CRUISE CONTROL _0384730 MILLIMETER WAVE RADAR SENSOR A

CRUISE CONTROL MILLIMETER WAVE RADAR SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during millimeter wave radar sensor assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Millimeter wave radar sensor assembly	Adjust millimeter wave radar sensor assembly	· Dynamic radar cruise control system · Lane control system · Road sign assist system · Front radar sensor system · Pre-collision system · Automatic high beam system	(201906,202208,_51,_078884,_0384730,RM100000001IUMI,202208,999999,_51,_078884,_0384730,RM1000000024I1I,)
Radiator grille assembly (Including removal and installation)	Front television camera view adjustment	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)

PROCEDURE

Hide Display 53101 1.REMOVE RADIATOR GRILLE SUB-ASSEMBLY

for Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>RADIATOR GRILLE (for Wagon)>REMOVAL201906,999999,_59,_079322,_0397097,RM100000001IMU6,

except Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>RADIATOR GRILLE (except Wagon)>REMOVAL201906,999999,_59,_079322,_0397096,RM100000001IMTX,

Hide Display 88211B 2.REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

NOTICE:: Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.

0,0 0,0 false

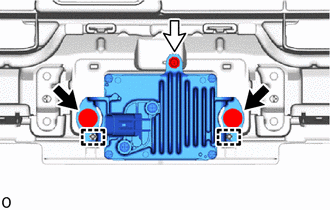

	Bolt
	Screw

Remove the 2 bolts and screw.

Detach the guide and remove the millimeter wave radar sensor assembly.
