EXTERIOR PANELS / TRIM RADIATOR GRILLE(for Wagon) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are replaced during the radiator grille sub-assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
· Front television camera assembly (Including removal and installation) · Radiator grille assembly (Including removal and installation) · Front bumper assembly (Including removal and installation)	Front television camera view adjustment	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)
· Front television camera assembly, radiator grille assembly or front bumper assembly · Television camera assembly · Side television camera assembly LH or outer rear view mirror assembly LH · Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment (Adjustment of all cameras) HINT: Replacement or removal and installation of 2 or more parts	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)

HINT:: When the radiator grille sub-assembly is damaged or deformed due to an accident or contact with other objects, etc., or the radiator grille installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.; Click hereEngine / Hybrid System>CRUISE CONTROL>MILLIMETER WAVE RADAR SENSOR>ADJUSTMENT201906,202208,_51,_078884,_0384730,RM100000001IUMI,202208,999999,_51,_078884,_0384730,RM1000000024I1I,

PROCEDURE

Hide Display 53106B 1.REMOVE RADIATOR COVER SUB-ASSEMBLY

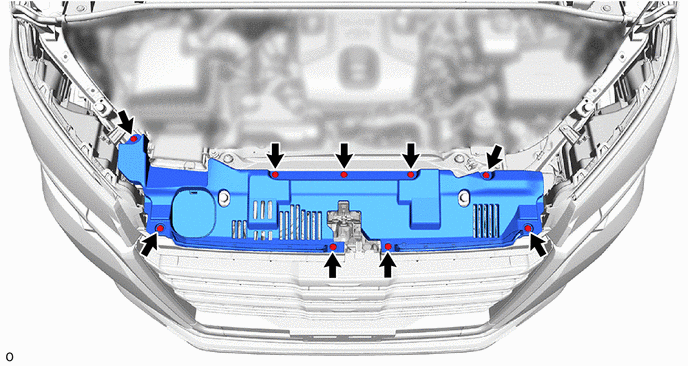

Remove the 9 clips.

0,0 0,0 false

Remove in this Direction

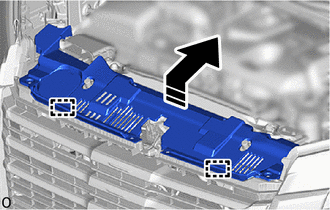

Detach the guide and remove the radiator cover sub-assembly as shown in the illustration.

Hide Display 52128B 2.REMOVE FRONT BUMPER HOLE COVER LH

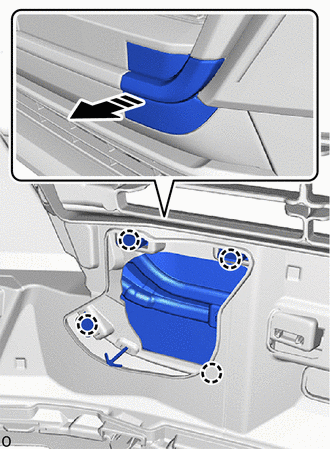

0,0 0,0 false

Remove in this Direction

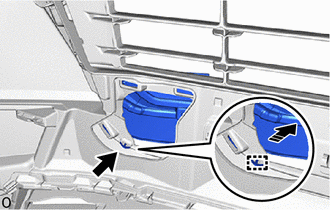

Detach the claw as shown in the illustration.

0,0 0,0 false

	Remove in this Direction
	Fall Prevention Hook

Disconnect the fall prevention hook and remove the front bumper hole cover LH as shown in the illustration.

Hide Display 52127D 3.REMOVE FRONT BUMPER HOLE COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 53101 4.REMOVE RADIATOR GRILLE SUB-ASSEMBLY

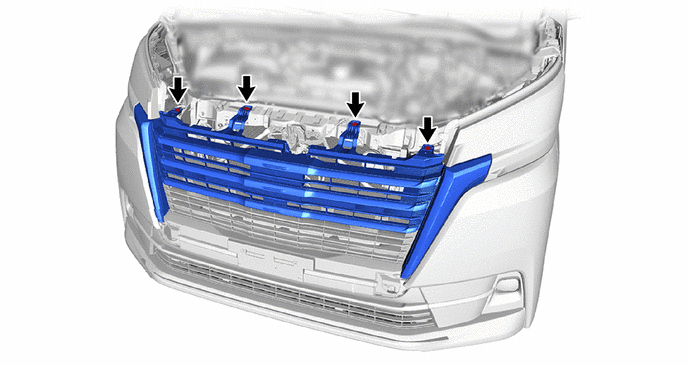

Remove the 4 bolts.

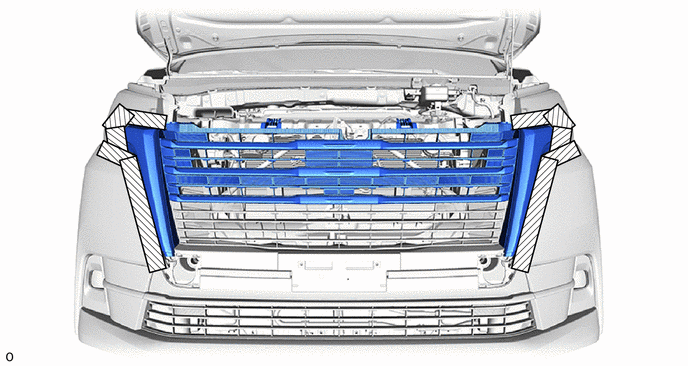

Apply protective tape around the radiator grille sub-assembly.

0,0 0,0 false

Protective Tape

1.917,1.635 2.146,1.833 0.229,0.198 12 true *A 1.052,1.698 1.281,1.896 0.229,0.198 12 true *B

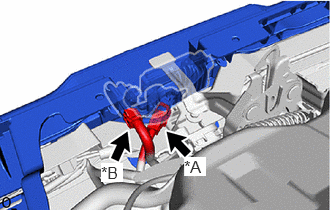

*A	w/ Pre-collision System
*B	w/ Panoramic View Monitor System

w/ Pre-collision System:

Disconnect the connector.

w/ Panoramic View Monitor System:

Disconnect the connector.

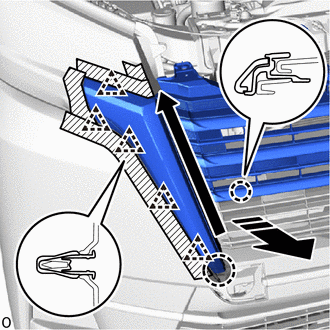

0,0 0,0 false

	Place Hand Here
	Remove in this Direction
	Order of Removal

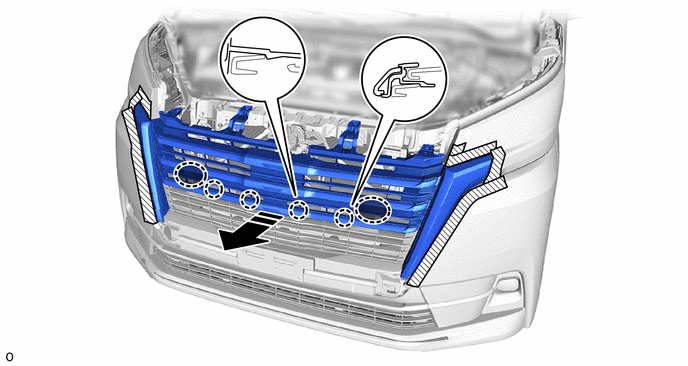

Detach the 5 clips and claw as shown in the illustration.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction
	Order of Removal

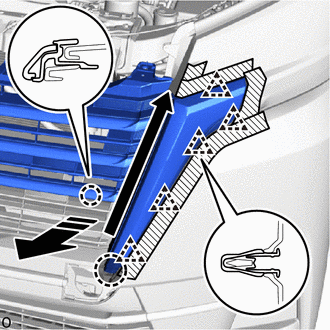

Detach the 5 clips and claw as shown in the illustration.

Detach the claw and remove the radiator grille sub-assembly as shown in the illustration.

0,0 0,0 false

Place Hand Here

Remove in this Direction
