RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0397096 RADIATOR GRILLE(except Wagon) A

EXTERIOR PANELS / TRIM  RADIATOR GRILLE(except Wagon)  REMOVAL


CAUTION / NOTICE / HINT

HINT:

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.

Click hereEngine / Hybrid System>CRUISE CONTROL>MILLIMETER WAVE RADAR SENSOR>ADJUSTMENT


PROCEDURE

Hide 53106B 1.REMOVE RADIATOR COVER SUB-ASSEMBLY

a.

Remove the 9 clips.

B524308


b.
B524485C02
0,0 0,0 false
V113147

Remove in this Direction

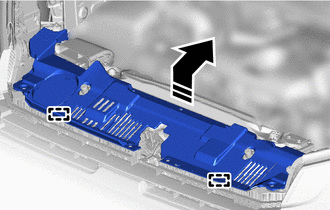

Detach the guide and remove the radiator cover sub-assembly as shown in the illustration.


Hide 53101 2.REMOVE RADIATOR GRILLE SUB-ASSEMBLY

a.

Remove the 4 bolts.

B524309


b.

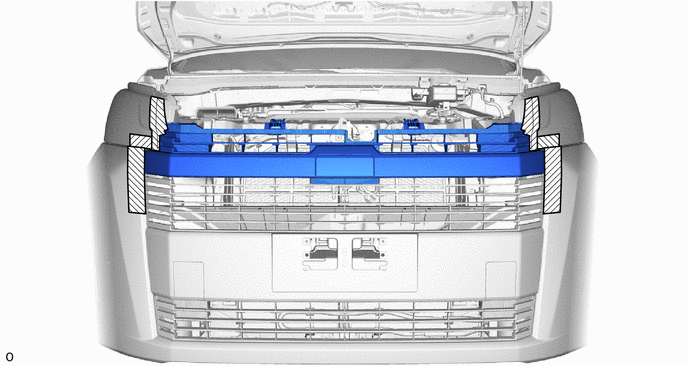

Apply protective tape around the radiator grille sub-assembly.

B524310C01
0,0 0,0 false
V100155

Protective Tape - -



c.
B524311

w/ Pre-collision System:

i.

Disconnect the connector.



d.

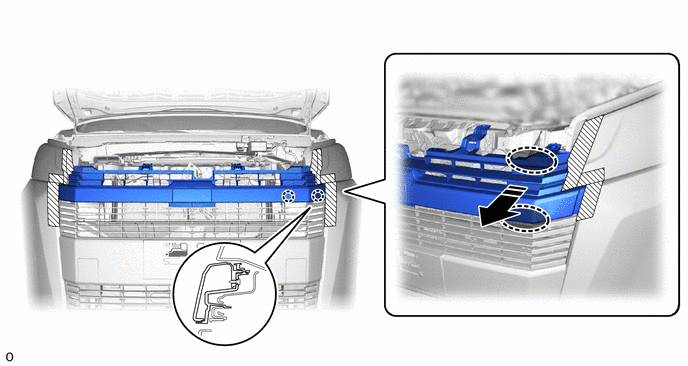

Detach the claw as shown in the illustration.

B545286C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction



e.

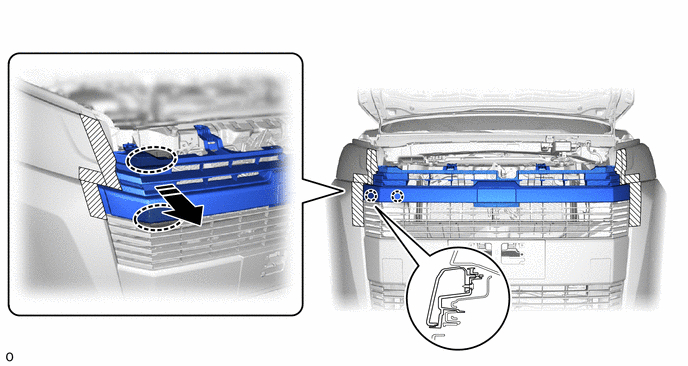

Detach the claw as shown in the illustration.

B545287C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction



f.

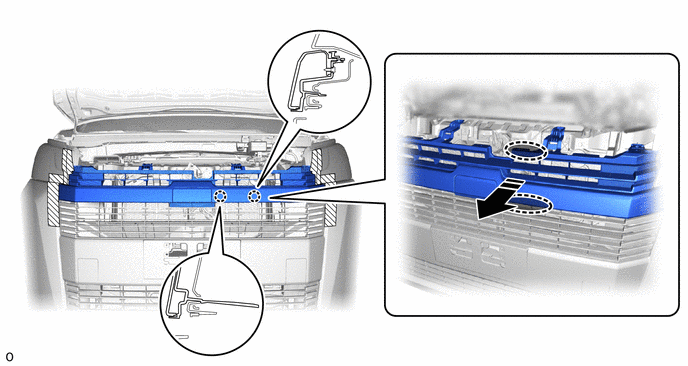

Detach the claw as shown in the illustration.

B545288C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction



g.

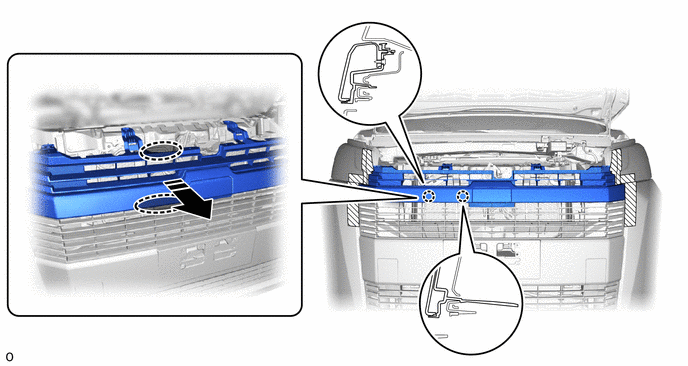

Detach the claw and remove the radiator grille sub-assembly as shown in the illustration.

B545289C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction
