NETWORKING NETWORK GATEWAY ECU INSTALLATION
PROCEDURE
89111
1.INSTALL NETWORK GATEWAY ECU
for LHD:

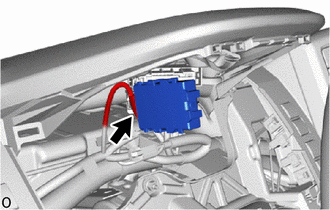

Connect the connector and install the network gateway ECU.

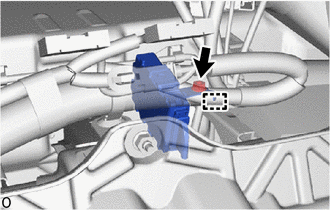

Attach the guide and connect the network gateway ECU to the instrument panel reinforcement assembly.
Install the nut.
- Torque:
- 5.5 N*m (56 kgf*cm, 49 in.*lbf)
for RHD:
Connect the connector and install the network gateway ECU.

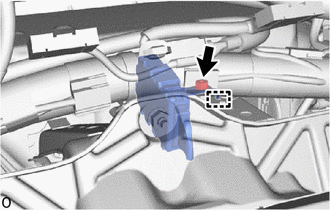

Attach the guide and connect the network gateway ECU to the instrument panel reinforcement assembly.
Install the nut.
- Torque:
- 5.5 N*m (56 kgf*cm, 49 in.*lbf)
86792C
2.INSTALL PARKING ASSIST ECU (w/ Panoramic View Monitor System)
88051B
3.INSTALL NO. 1 ION GENERATOR SUB-ASSEMBLY (w/ Ion Generator)
83100
4.INSTALL COMBINATION METER ASSEMBLY
5.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
