PROCEDURE

Hide Display 1. PRECAUTION (w/ Front Seat Side Airbag)

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

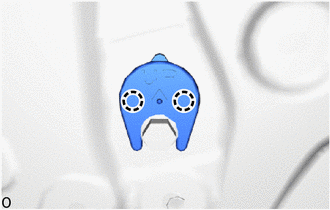

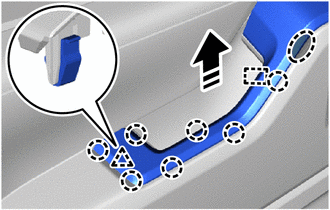

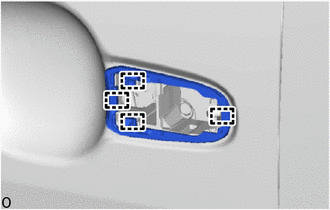

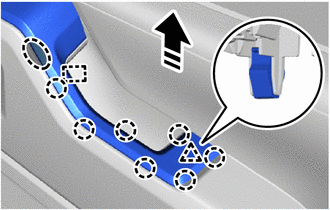

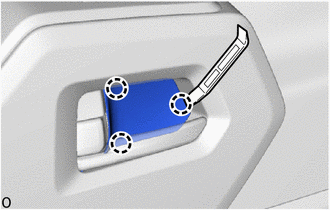

Hide Display 69278B 3.REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH

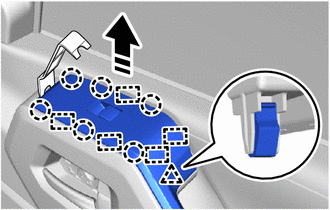

Using moulding remover A, detach the claw and remove the front door inside handle bezel LH.

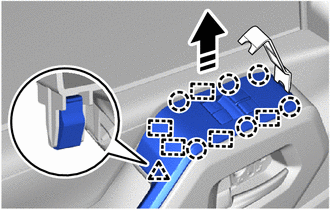

Hide Display 4.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

0,0 0,0 false

Remove in this Direction

Using moulding remover B, detach the claw, guide and clip toward the front of the vehicle in the direction of the arrow shown in the illustration.

0,0 0,0 false

Remove in this Direction

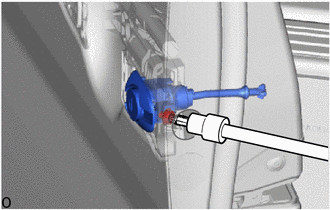

Place your hand at the position shown in the illustration and while pulling the multiplex network master switch assembly with front door armrest base panel toward you, detach the claw, guide and clip.

NOTICE:: Do not damage the multiplex network master switch assembly with front door armrest base panel.

HINT:: Completely detach each claw and clip.

3.052,0.677 3.323,0.917 0.271,0.24 12 false *A

*A	w/ Power Mirror Control System

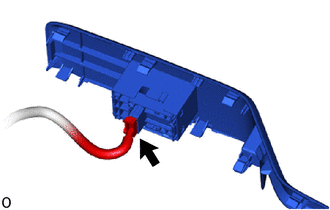

Disconnect the connector.

w/ Power Mirror Control System:

Disconnect the connector.

0.625,2.75 0.958,2.917 true 0.365,2.656 0.583,2.865 0.219,0.208 10 true *a

*a	Tether
	Turn in this Direction

Rotate the multiplex network master switch assembly with front door armrest base panel 90° clockwise and align the hole of the front door trim panel assembly with the tether position as shown in the illustration.

0,0 0,0 false

Remove in this Direction

Remove the tether and multiplex network master switch assembly with front door armrest base panel as shown in the illustration.

Hide Display 84040 5.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY (for Driver Side)

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW MASTER SWITCH>REMOVAL201902,999999,_59,_079318,_0384707,RM100000001GI0D_01_0002,

Hide Display 84870A 6.REMOVE OUTER MIRROR SWITCH ASSEMBLY (w/ Power Mirror Control System)

Click hereVehicle Exterior>MIRROR (EXT)>OUTER MIRROR SWITCH>REMOVAL201902,999999,_59,_079319,_0384986,RM100000001GJJX_02_0015,

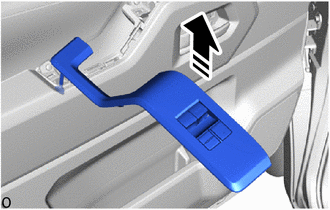

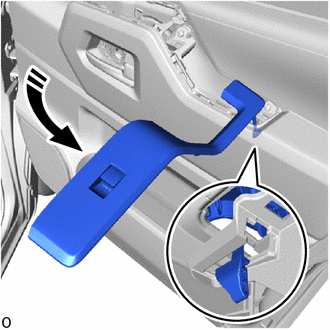

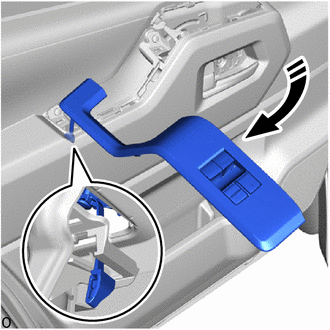

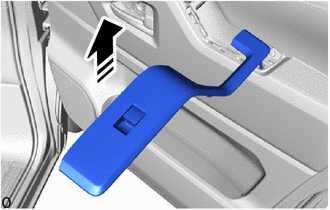

Hide Display 7.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

0,0 0,0 false

Remove in this Direction

Using moulding remover B, detach the claw, guide and clip toward the front of the vehicle in the direction of the arrow shown in the illustration.

0,0 0,0 false

Remove in this Direction

Place your hand at the position shown in the illustration and while pulling the power window regulator switch assembly with front door armrest base panel toward you, detach the claw, guide and clip.

NOTICE:: Do not damage the power window regulator switch assembly with front door armrest base panel.

HINT:: Completely detach each claw and clip.

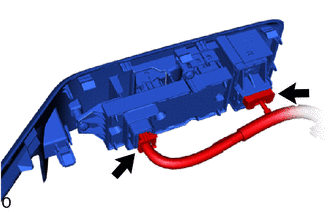

Disconnect the connector.

2.063,2.615 2.344,2.792 true 1.833,2.5 2.042,2.708 0.208,0.208 10 true *a

*a	Tether
	Turn in this Direction

Rotate the power window regulator switch assembly with front door armrest base panel 90° counterclockwise and align the hole of the front door trim panel assembly with the tether position as shown in the illustration.

0,0 0,0 false

Remove in this Direction

Remove the tether and power window regulator switch assembly with front door armrest base panel as shown in the illustration.

Hide Display 84810 8.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Front Passenger Side)

Click hereVehicle Exterior>WINDOW / GLASS>FRONT PASSENGER SIDE POWER WINDOW SWITCH>REMOVAL201902,999999,_59,_079318,_0384708,RM100000001GI0H_02_0001,

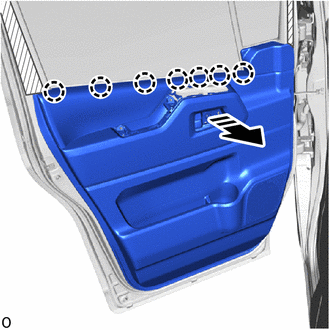

Hide Display 67602 9.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

0,0 0,0 false

Protective Tape

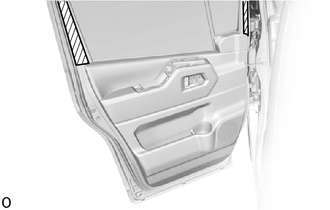

Apply protective tape to the front door panel as shown in the illustration.

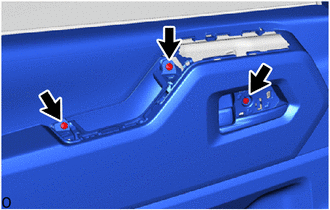

Remove the 3 screws.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

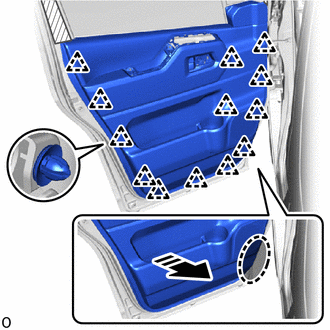

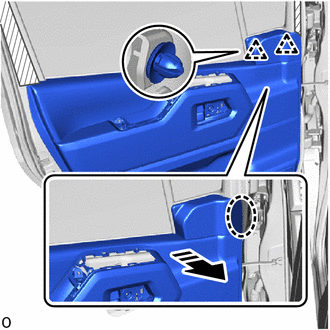

Place your hand at the position shown in the illustration, and while pulling the front door trim board sub-assembly LH toward you, detach the clip.

HINT:: Securely detach the clips one by one.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration, and while pulling the front door trim board sub-assembly LH toward you, detach the clip.

0,0 0,0 false

Remove in this Direction

Pull the front door trim board sub-assembly LH in the direction indicated by the arrow shown in the illustration to detach the claw and remove the front door trim board sub-assembly LH.

1.771,0.865 2.125,0.75 true 1.323,1.26 1.646,1.125 true 2.188,0.656 2.396,0.844 0.208,0.188 10 true *1 1.063,1.24 1.271,1.417 0.208,0.177 10 true *2

*1	Front Door Inside Locking Cable Assembly LH
*2	Front Door Lock Remote Control Cable Assembly LH
	Remove in this Direction

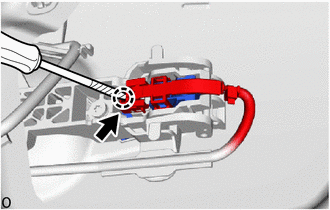

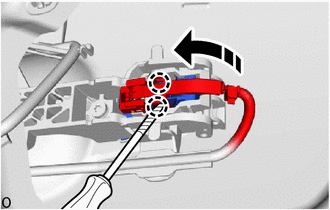

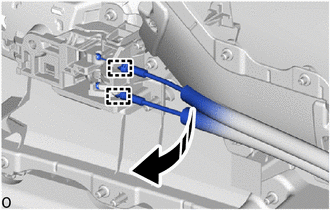

Detach the clamp and disconnect the front door lock remote control cable assembly LH and front door inside looking cable assembly LH as shown in the illustration.

Disconnect the connector.

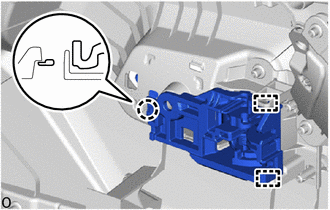

Hide Display 69206B 10.REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY LH

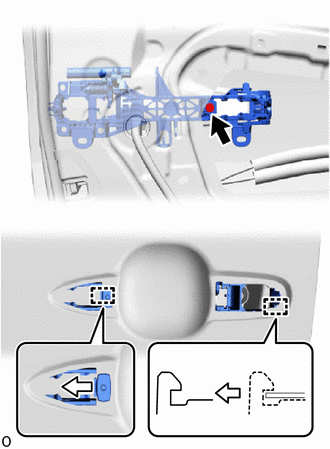

Detach the clamp and claw.

0,0 0,0 false

Remove in this Direction

Remove the front door inside handle sub-assembly LH in the direction indicated by the arrow as shown in the illustration.

Hide Display 68172A 11.REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP LH

0,0 0,0 false

Remove in this Direction

Remove the front door inner glass weatherstrip LH as shown in the illustration.

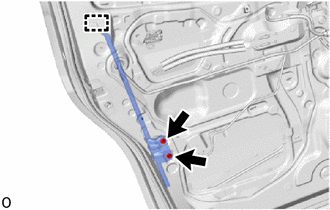

Hide Display 68195B 12.REMOVE FRONT DOOR REAR BELT SEAL LH

0,0 0,0 false

Remove in this Direction

Remove the front door rear belt seal LH as shown in the illustration.

Hide Display 68193C 13.REMOVE FRONT DOOR FRONT BELT SEAL LH

0,0 0,0 false

Remove in this Direction

Detach the grommet and remove the front door front belt seal LH as shown in the illustration.

Hide Display 87940 14.REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL201906,999999,_59,_079319,_0384984,RM100000001IZUT_03_0016,

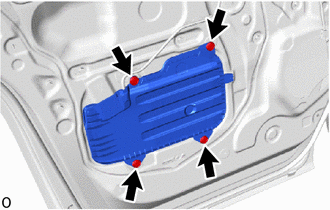

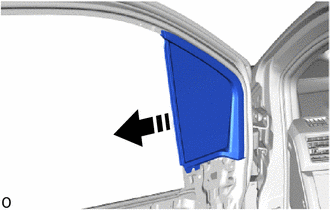

Hide Display 67832A 15.REMOVE FRONT DOOR NO. 5 SERVICE HOLE COVER LH

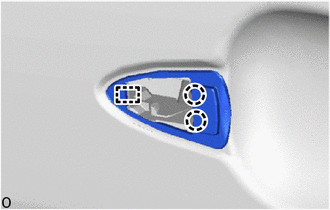

Remove the 2 screws.

Detach the claw and remove the front door No. 5 service hole cover LH.

Detach the claw and remove the 2 grommets.

Hide Display 86160 16.REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>FRONT DOOR SPEAKER>REMOVAL201902,999999,_56,_078377,_0380010,RM100000001FSED_02_0001,

Hide Display 67626A 17.REMOVE NO. 2 DOOR TRIM BRACKET

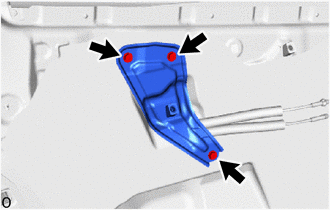

Remove the 3 screws and No. 2 door trim bracket.

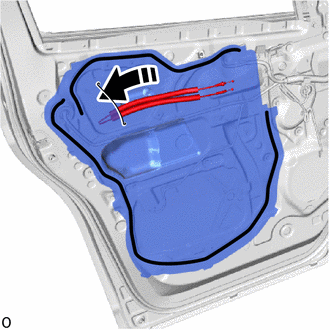

Hide Display 67832 18.REMOVE FRONT DOOR SERVICE HOLE COVER LH

1.75,0.969 2.146,0.417 true 2.031,1.469 1.729,1.073 true 2.042,1.51 2.281,1.698 0.24,0.188 10 true *1 2.208,0.271 2.448,0.458 0.24,0.188 10 true *2

*1	Front Door Lock Remote Control Cable Assembly LH
*2	Front Door Inside Locking Cable Assembly LH
	Remove in this Direction

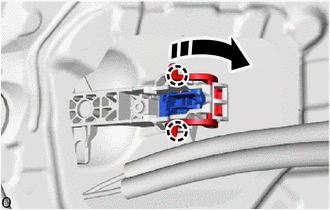

Pull out the front door lock remote control cable LH and front door inside locking cable LH from the front door service hole cover LH, and then remove the front door service hole cover LH.

HINT:: Remove any remaining butyl tape from the front door panel.

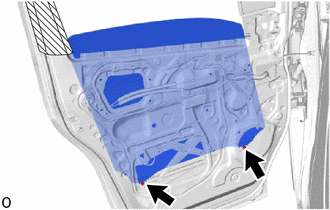

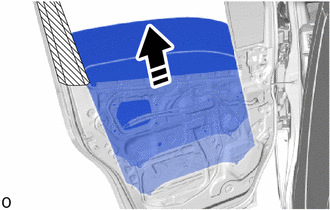

Hide Display 67836C 19.REMOVE FRONT DOOR NO. 3 SERVICE HOLE COVER LH (w/ Curtain Shield Airbag)

0,0 0,0 false

Remove in this Direction

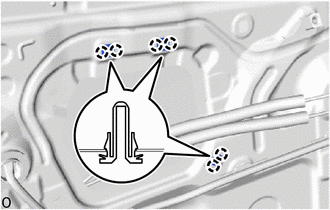

Remove the 2 clips.

Detach the claw and remove the front door No. 3 service hole cover LH as shown in the illustration.

Detach the claw and remove the 3 grommets.

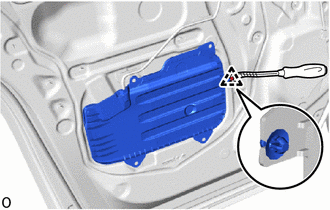

Hide Display 67838F 20.REMOVE FRONT DOOR NO. 4 SERVICE HOLE COVER LH (w/ Curtain Shield Airbag)

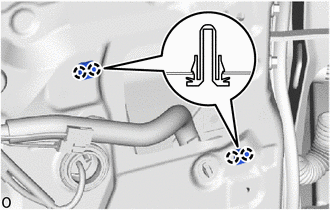

Remove the 4 clips.

0,0 0,0 false

Protective Tape

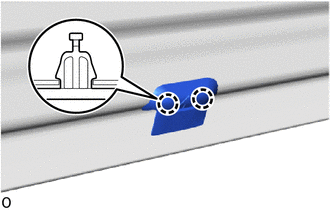

Using a clip remover with its tip wrapped with protective tape, detach the clip and remove the front door No. 4 service hole cover LH.

Hide Display 8983AA 21.REMOVE SIDE AIRBAG PRESSURE SENSOR LH (w/ Front Seat Side Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Front Door)>REMOVAL201906,999999,_58,_079257,_0384944,RM100000001IWA5_01_0141,

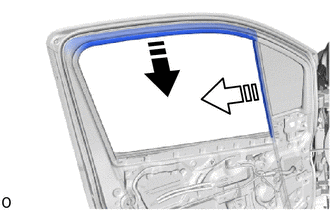

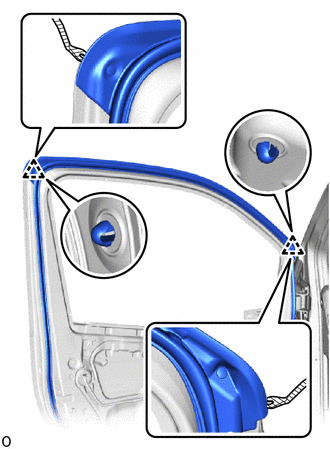

Hide Display 68151D 22.DISCONNECT FRONT DOOR GLASS RUN LH

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

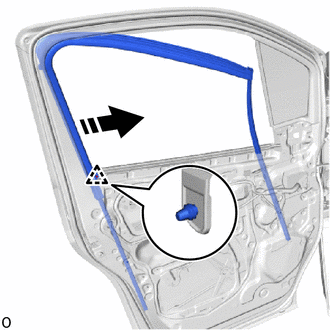

Disconnect the front door glass run LH as shown in the illustration.

HINT:: Leave the rear side of the front door glass run LH on the front door front lower frame sub-assembly LH.

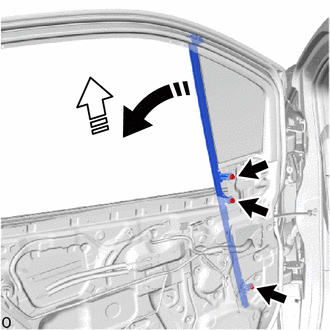

Hide Display 67402F 23.REMOVE FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY LH

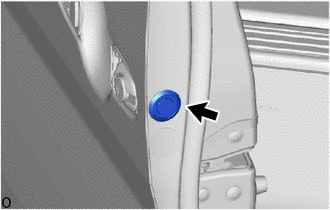

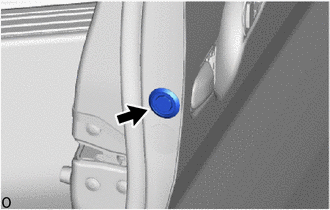

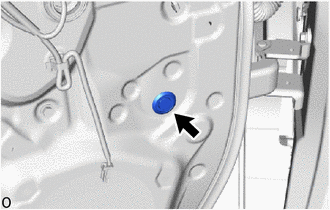

Remove the hole plug.

0,0 0,0 false

Lift up in this Direction

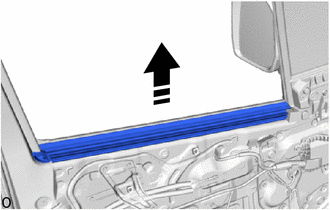

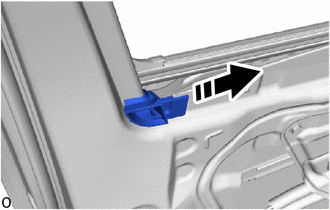

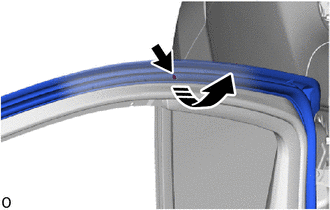

Lift up the front door weatherstrip LH as shown in the illustration.

Remove the screw.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Remove the 3 bolts.

Tilt the front door front lower frame sub-assembly LH in the direction (1) indicated by the arrow shown in the illustration.

Pull out the front door front lower frame sub-assembly LH and remove it from the front door panel assembly LH in the direction (2) indicated by the arrow shown in the illustration.

Hide Display 68102 24.REMOVE FRONT DOOR GLASS SUB-ASSEMBLY LH

for Driver Side:

Connect the multiplex network master switch assembly connector.

for Front Passenger Side:

Connect the power window regulator switch assembly connector.

Connect the cable to the negative (-) battery terminal.

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

ii.

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Turn the ignition switch to ON.

Move the front door glass sub-assembly LH until the installation bolts can be seen.

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal.

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

ii.

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

After disconnecting the cable from the negative (-) battery terminal, wait for at least 90 seconds to start the operation.

·

If the airbag deploys for any reason, it may cause a serious accident.

for Driver Side:

Disconnect the multiplex network master switch assembly connector.

for Front Passenger Side:

Disconnect the power window regulator switch assembly connector.

0,0 0,0 false

Protective Tape

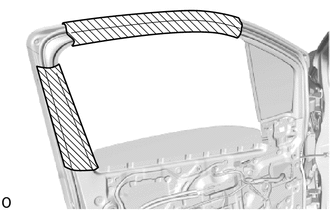

Apply protective tape around the front door panel assembly as shown in the illustration.

Remove the 2 bolts.

NOTICE:: After the bolts are removed, do not allow the front door glass sub-assembly LH to fall.

0,0 0,0 false

Remove in this Direction

Remove the front door glass sub-assembly LH in the direction indicated by the arrow shown in the illustration.

NOTICE:: Be careful not to damage the front door glass sub-assembly LH.

Hide Display 68151D 25.REMOVE FRONT DOOR GLASS RUN LH

0,0 0,0 false

Remove in this Direction

Detach the clip.

Remove the front door glass run LH as shown in the illustration.

Hide Display 67834 26.REMOVE FRONT DOOR NO. 2 SERVICE HOLE COVER LH

Detach the claw and remove the front door No. 2 service hole cover LH.

Hide Display 69820 27.REMOVE FRONT DOOR WINDOW REGULATOR ASSEMBLY LH

1.458,0.656 1.948,0.823 true 1.198,0.51 1.417,0.708 0.219,0.198 10 true *a

*a	Temporary Bolt
	Bolt
	Connector

Disconnect the connector.

Loosen the temporary bolt.

NOTICE:: Do not remove the temporary bolt. If the temporary bolt is removed, the front door window regulator sub-assembly may fall and cause damage.

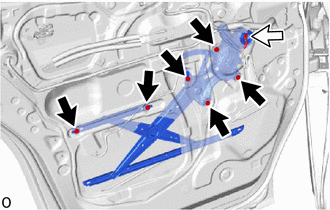

Remove the 5 bolts and front door window regulator assembly LH.

NOTICE:: Do not damage the front door panel assembly with the front door window regulator assembly LH.

HINT:

0,0 0,0 false

Remove in this Direction

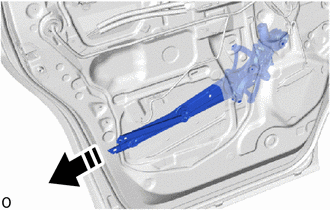

When removing the front door window regulator assembly LH, pull it out from the service hole as shown in the illustration.

Remove the temporary bolt from the front door window regulator assembly LH.

Hide Display 85720C 28.REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR>REMOVAL201906,999999,_59,_079318,_0384709,RM100000001IUIB_01_0001,

Hide Display 68126 29.REMOVE FRONT DOOR FIX WINDOW GLASS LH

0,0 0,0 false

Remove in this Direction

Remove the front door fix window glass LH with the front door fix window weatherstrip LH as shown in the illustration.

Hide Display 68216 30.REMOVE FRONT DOOR FIX WINDOW WEATHERSTRIP LH

Remove the front door fix window weatherstrip LH from the front door fix window glass LH.

Hide Display 67404F 31.REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY LH

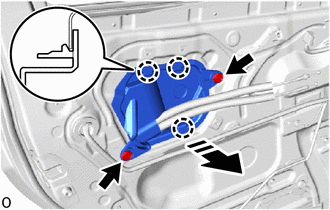

Remove the 2 bolts.

Detach the guide and remove the front door rear lower frame sub-assembly LH.

Hide Display 68210C 32.REMOVE FRONT DOOR OUTER GLASS WEATHERSTRIP ASSEMBLY LH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT DOOR BELT MOULDING>REMOVAL201906,999999,_59,_079322,_0385753,RM100000001JRD9_01_0271,

Hide Display 69220 33.REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH

0,0 0,0 false

	Remove in this Direction
	Protective Tape

w/ Entry and Start System:

Using a screwdriver with its tip wrapped with protective tape, detach the claw and open the connector cover as shown in the illustration.

ii.

0,0 0,0 false

Protective Tape

Using a screwdriver with its tip wrapped with protective tape, detach the claw to disconnect the connector and connector cover as shown in the illustration.

2.458,1.833 2.052,1.281 true 2.448,1.885 2.677,2.063 0.229,0.177 10 true *1

*1	Holder

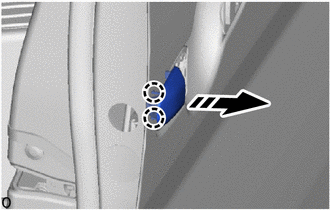

	Remove in this Direction

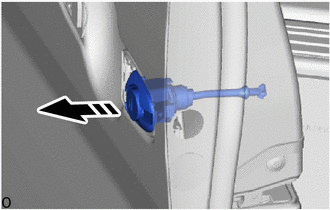

Detach the claw and move the holder in the direction indicated by the arrow shown in the illustration.

0,0 0,0 false

Remove in this Direction

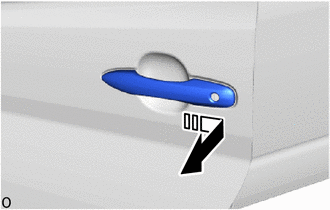

Remove the front door outside handle assembly LH by sliding and pulling it in the direction indicated by the arrow in the illustration.

Hide Display 69503 34.REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY LH (w/ Lock Cylinder)

Remove the hole plug.

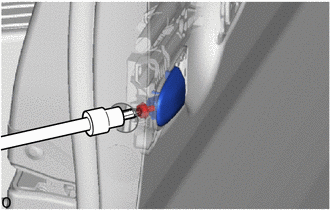

Using a T30 "TORX" socket wrench, loosen the "TORX" screw.

0,0 0,0 false

Remove in this Direction

Remove the front door lock cylinder assembly LH as shown in the illustration.

Hide Display 69217E 35.REMOVE FRONT DOOR OUTSIDE HANDLE COVER RH (w/o Lock Cylinder)

Remove the hole plug.

Using a T30 "TORX" socket wrench, loosen the "TORX" screw.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the front door outside handle cover RH as shown in the illustration.

Hide Display 69252 36.REMOVE FRONT DOOR FRONT OUTSIDE HANDLE PAD LH

Detach the claw and guide to remove the front door front outside handle pad LH.

Hide Display 69254C 37.REMOVE FRONT DOOR REAR OUTSIDE HANDLE PAD LH

Detach the guide and remove the front door rear outside handle pad LH.

Hide Display 69312 38.REMOVE FRONT DOOR LOCK OPEN ROD LH

Click hereVehicle Interior>DOOR LOCK>FRONT DOOR LOCK>REMOVAL201906,999999,_58,_078336,_0387725,RM100000001IPPZ_02_0024,

Hide Display 69202A 39.REMOVE FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH

0.104,0.073 0.417,0.271 0.313,0.198 10 false *a 0.125,2.25 0.438,2.448 0.313,0.198 10 false *b

*a	Inside
*b	Outside

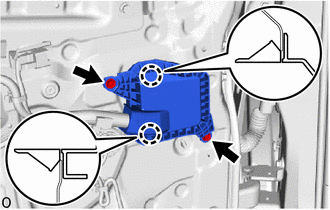

Using a T30 "TORX" socket wrench, loosen the "TORX"screw.

Detach the guide and remove the front door outside handle frame sub-assembly LH.

w/ Entry and Start System:

Detach the wire harness clamp.

Hide Display 69040A 40.REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH

Click hereVehicle Interior>DOOR LOCK>FRONT DOOR LOCK>REMOVAL201906,999999,_58,_078336,_0387725,RM100000001IPPZ_02_0025,

Hide Display 69318C 41.REMOVE DOOR LOCK WIRING HARNESS SEAL

Click hereVehicle Interior>DOOR LOCK>FRONT DOOR LOCK>REMOVAL201906,999999,_58,_078336,_0387725,RM100000001IPPZ_02_0026,

Hide Display 69036A 42.REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY LH

Click hereVehicle Interior>DOOR LOCK>FRONT DOOR LOCK>REMOVAL201906,999999,_58,_078336,_0387725,RM100000001IPPZ_02_0027,

Hide Display 69720D 43.REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH

Click hereVehicle Interior>DOOR LOCK>FRONT DOOR LOCK>REMOVAL201906,999999,_58,_078336,_0387725,RM100000001IPPZ_02_0001,

Hide Display 69760B 44.REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY LH

Click hereVehicle Interior>DOOR LOCK>FRONT DOOR LOCK>REMOVAL201906,999999,_58,_078336,_0387725,RM100000001IPPZ_02_0002,

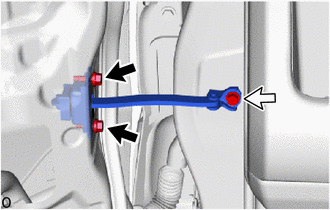

Hide Display 68620 45.REMOVE FRONT DOOR CHECK ASSEMBLY LH

0,0 0,0 false

	Bolt (A)
	Bolt (B)

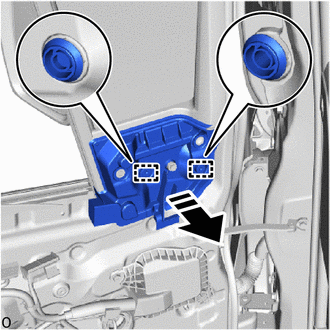

Remove the 2 bolts (A), bolt (B) and front door check assembly LH.

Hide Display 67862 46.REMOVE FRONT DOOR WEATHERSTRIP LH

0,0 0,0 false

Protective Tape

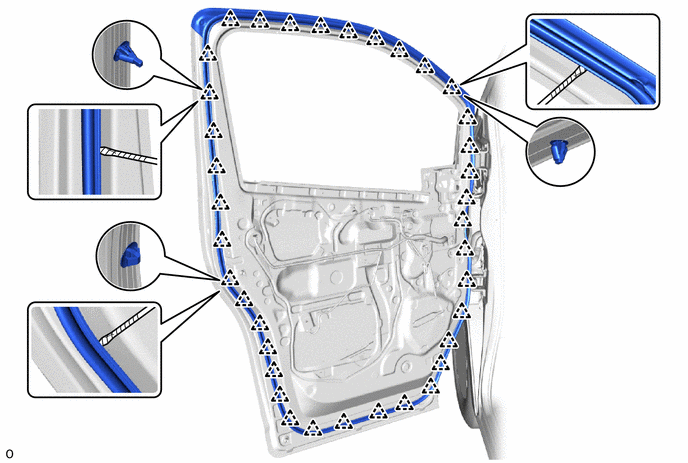

Using a clip remover with its tip wrapped with protective tape, detach the clip.

Using a screwdriver with its tip wrapped with protective tape, detach the clip and remove the front door weatherstrip LH.

0,0 0,0 false

Protective Tape

Hide Display 67837B 47.REMOVE FRONT DOOR DUST PROOF SEAL

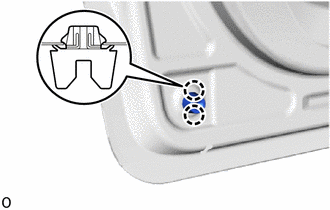

Detach the claw and remove the front door dust proof seal.

HINT:: Use the same procedure described for the other side.

Hide Display 67001A 48.REMOVE FRONT DOOR PANEL CUSHION

Detach the claw and remove the front door panel cushion.

HINT:: Use the same procedure described for the other side.

Hide Display 75981E 49.REMOVE FRONT FENDER STRIPE (w/ Stripe Tape)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>SIDE STRIPE TAPE>REMOVAL201902,999999,_59,_079322,_0389234,RM100000001H6RZ_01_0013,

Hide Display 75985F 50.REMOVE FRONT DOOR OUTSIDE STRIPE (w/ Stripe Tape)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>SIDE STRIPE TAPE>REMOVAL201902,999999,_59,_079322,_0389234,RM100000001H6RZ_01_0012,

Hide Display 75986 51.REMOVE FRONT DOOR STRIPE LH (w/ Stripe Tape)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>SIDE STRIPE TAPE>REMOVAL201902,999999,_59,_079322,_0389234,RM100000001H6RZ_01_0022,

Hide Display 75734C 52.REMOVE FRONT DOOR OUTSIDE REAR MOULDING LH (w/ Side Mudguard)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>SIDE MUDGUARD (for Wagon)>REMOVAL201906,999999,_59,_079322,_0398615,RM100000001IX0I_02_0003,

Hide Display 76904A 53.REMOVE FRONT DOOR MUDGUARD SUB-ASSEMBLY LH (w/ Side Mudguard)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>SIDE MUDGUARD (for Wagon)>REMOVAL201906,999999,_59,_079322,_0398615,RM100000001IX0I_02_0004,

Hide Display 76932A 54.REMOVE NO. 1 SIDE MUDGUARD BRACKET LH (w/ Side Mudguard)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>SIDE MUDGUARD (for Wagon)>DISASSEMBLY201906,999999,_59,_079322,_0398615,RM100000001IX0K_01_0005,
