The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the panoramic view monitor switch removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative (-) battery terminal | Memorize steering angle neutral point | Parking assist monitor system | ( 201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
|
| Panoramic view monitor system | ( 201906,999999,_56,_079315,_0396274,RM100000001IGR3,)
|
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
|
*: w/ Stop and start system |
||
| Stop and start system* | Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). | ( 201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
|
| Lane control system | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. | ( 201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
|
| Pre-collision system | ||
Learning completes when vehicle is operated normally
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Power slide door system | Fully close the slide door by hand.
|
( 201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
Use the same procedure for RHD and LHD vehicles.
The procedure listed below is for LHD vehicles.
1. PRECAUTION
Be sure to read Precaution thoroughly before servicing.
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait at least 90 seconds after disconnecting the cable from the negative(-) battery terminal to disable the SRS system.
If the airbag deploys for any reason, it may cause a serious accident.
55631A
3.REMOVE NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER
55011A
4.REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
55044C
5.REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
55404E
6.REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
33622
7.DISCONNECT NO. 1 SHIFT LEVER KNOB COVER
33504F
8.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
35970F
9.REMOVE POSITION INDICATOR HOUSING ASSEMBLY
55900
10.REMOVE AIR CONDITIONING CONTROL ASSEMBLY
67912A
11.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE LH
67914B
12.REMOVE FRONT DOOR SCUFF PLATE LH
62112
13.REMOVE COWL SIDE TRIM BOARD LH
55318C
14.REMOVE INSTRUMENT SIDE PANEL LH
55641
15.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER
53601
16.REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
77306
17.REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY
55432D
18.REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
55433B
19.REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
73900
20.REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
67911B
21.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE RH
Use the same procedure described for the LH side.
67913B
22.REMOVE FRONT DOOR SCUFF PLATE RH
Use the same procedure described for the LH side.
62111C
23.REMOVE COWL SIDE TRIM BOARD RH
55632B
24.REMOVE NO. 2 INSTRUMENT PANEL UNDER TRAY SUPPORT
55012A
25.REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
55317A
26.REMOVE INSTRUMENT SIDE PANEL RH
55642
27.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER
55312
28.REMOVE LOWER INSTRUMENT PANEL
55438A
29.REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL RETAINER
30.REMOVE FRONT CONSOLE BOX (w/ Console Trey)
58533C
31.REMOVE CENTER FLOOR CARPET COVER RH
58534E
32.REMOVE CENTER FLOOR CARPET COVER LH
55646
33.REMOVE NO. 3 INSTRUMENT PANEL UNDER COVER
55434B
34.REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL
55320
35.REMOVE LOWER NO. 2 INSTRUMENT PANEL ASSEMBLY
55413D
36.REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
55410C
37.REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
55670
38.REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
55447C
39.REMOVE NO. 2 SWITCH HOLE BASE
84721B

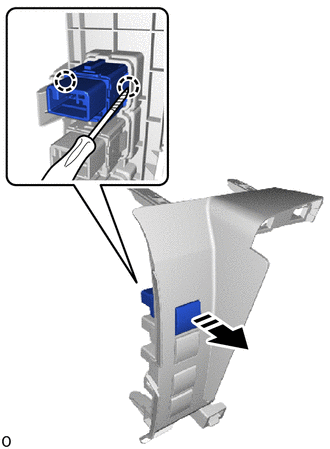

40.REMOVE PANORAMIC VIEW MONITOR SWITCH
|
Remove in this Direction |
|
Protective Tape |
Using a screwdriver, detach the claw to remove the panoramic view monitor switch as shown in the illustration.
Tape the screwdriver tip before use.
