THEFT DETERRENT / KEYLESS ENTRY  ENTRY AND START SYSTEM(for Start Function)  Additional Key cannot be Registered


DESCRIPTION

If additional registration is not possible, a malfunction of the electrical key transmitter sub-assembly, certification ECU (smart key ECU assembly), engine switch, No. 1 indoor electrical key antenna assembly (front floor), steering lock ECU (steering lock actuator or upper bracket assembly) or door control receiver is suspected.

CAUTION / NOTICE / HINT

NOTICE:
·

If registration of an electrical key transmitter sub-assembly cannot be performed, refer to the Service Bulletin.

·

When using the GTS with the engine switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start. While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

The entry and start system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the entry and start system (for Start Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Start Function)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before replacing the certification ECU (smart key ECU assembly), steering lock ECU (steering lock actuator or upper bracket assembly) or electrical key transmitter sub-assembly, refer to the Service Bulletin.

·

After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".



HINT:

When additional registration is not possible, operation history may be stored in the certification ECU (smart key ECU assembly).

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Start Function)>CHECK FOR INTERMITTENT PROBLEMS


PROCEDURE

1.CHECK FOR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the engine switch on (IG).


c.

Turn the GTS on.


d.

Enter the following menus: Body Electrical / Entry&Start / Trouble Codes.


e.

Check for DTCs.

Body Electrical > Entry&Start > Trouble Codes
50001 125
NOTICE:

If a malfunction occurs, do not remove/install the vehicle battery before checking for DTCs.


OK:

DTCs are not output.



Result:
Proceed to
OK
NG



OK

2.READ VALUE USING GTS (UNMATCHED VEHICLE-ID)

NG

GO TO DIAGNOSTIC TROUBLE CODE CHART

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Start Function)>DIAGNOSTIC TROUBLE CODE CHART


2.READ VALUE USING GTS (UNMATCHED VEHICLE-ID)
a.

Enter the following menus: Body Electrical / Entry&Start / Data List.


b.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Unmatched Vehicle-ID Key No. (incorrect or correct) Yes or No Yes: Communication malfunction
No: Communication normal 		The vehicle ID registered in the vehicle and the vehicle ID registered in the electrical key transmitter sub-assembly are different (if a key from another vehicle is brought into the vehicle exterior detection area while the doors are locked, "Yes" is displayed for "Unmatched Vehicle-ID" in the Data List).
Other potential causes:
·

An electrical key transmitter sub-assembly from a different vehicle is being used.

·

A communication error due to wave interference.

·

The electrical key transmitter sub-assembly or certification ECU (smart key ECU assembly) is malfunctioning.


Body Electrical > Entry&Start > Data List
Tester Display
Unmatched Vehicle-ID
50003 125 20

Result:
Result Proceed to
"No" is displayed A
"Yes" is displayed B



A

3.READ VALUE USING GTS (OPERATION HISTORY LIST)

B

6.REGISTRATION
3.READ VALUE USING GTS (OPERATION HISTORY LIST)
a.

Enter the following menus: Body Electrical / Entry&Start / Utility / Operation History / Certification ECU operation log of ID code registration.

Body Electrical > Entry&Start > Utility
Tester Display
Operation History
50005 125 52

Certification ECU operation log of ID code registration:
Parameter Name Detection Condition Trouble Area
New Key ID Registration Stopped (Security Access Malfunction) Communication error Communication error between the GTS and key registration server
New Key ID Registration Stopped (Certification ECU Type Malfunction) The electrical key transmitter sub-assembly is not compatible with the certification ECU (smart key ECU assembly). Certification ECU (smart key ECU assembly)
New Key ID Registration Stopped (Key Type Malfunction) The electrical key transmitter sub-assembly is not compatible with the registration mode or certification ECU (smart key ECU assembly). Electrical key transmitter sub-assembly


OK:

Any operation history in the table above is not displayed.


Result:
Result Proceed to
Any operation history in the table above is not displayed. A
"New Key ID Registration Stopped (Security Access Malfunction)" is displayed B
"New Key ID Registration Stopped (Certification ECU Type Malfunction)" is displayed C
"New Key ID Registration Stopped (Key Type Malfunction)" is displayed D



A

4.CHECK PUSH-BUTTON START FUNCTION

B

NEW KEY REGISTRATION FAILED, CHECK THE KEY
a.

Check if a registered electrical key transmitter sub-assembly was held near the engine switch instead of an unregistered electrical key transmitter sub-assembly by mistake.


b.

Perform registration again using an unregistered electrical key transmitter sub-assembly. If the same problem occurs again, replace the certification ECU (smart key ECU assembly).



C

CHECK RETRY THE REGISTRATION PROCEDURE

D

REPLACE ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY

4.CHECK PUSH-BUTTON START FUNCTION
a.

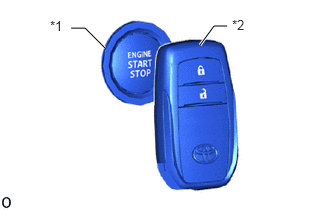

B546818C01
2.083,0.469 2.229,0.271 2.229,0.271 2.365,0.271 true 0.74,0.292 0.885,0.292 0.885,0.292 1.094,0.5 true 0.521,0.188 0.833,0.385 0.313,0.198 10 false *1 2.417,0.177 2.729,0.375 0.313,0.198 10 false *2
*1 Engine Switch
*2 Electrical Key Transmitter Sub-assembly


Remove the transmitter battery from the electrical key transmitter sub-assembly.

Click hereGeneral>MAINTENANCE>TRANSMITTER BATTERY (w/ Entry and Start System)>REMOVAL


b.

With the brake pedal depressed, hold the electrical key transmitter sub-assembly near the engine switch and check if the power source mode changes.

OK:

The power source mode changes.


HINT:

If the power source mode changes, the cabin verification is malfunctioning.



Result:
Result Proceed to
The power source mode changes A
The power source mode does not change B



A

5.CHECK STEERING LOCK FUNCTION

B

GO TO OTHER PROBLEM (Power Source Mode does not Change to ON (IG and ACC))

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Start Function)>Power Source Mode does not Change to ON (IG and ACC)


5.CHECK STEERING LOCK FUNCTION
a.

Check that the steering unlocks when all of the following conditions are met.

·

The electrical key transmitter sub-assembly is inside the vehicle.

·

The engine switch is on (ACC) or on (IG).


HINT:

Check that the communication between the steering lock ECU (steering lock actuator or upper bracket assembly) and certification ECU (smart key ECU assembly) is normal.


OK:

The steering unlocks.



Result:
Proceed to
OK
NG



OK

6.REGISTRATION

NG

GO TO OTHER PROBLEM (Unable to Unlock Steering Wheel (Engine cannot Start))

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Start Function)>Unable to Unlock Steering Wheel (Engine cannot Start)


6.REGISTRATION
a.

Using another unregistered electrical key transmitter sub-assembly, perform the additional registration procedure.

HINT:

Refer to the Service Bulletin.


OK:

Additional registration can be completed.



Result:
Proceed to
OK
NG



OK

REPLACE ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY (FIRST REGISTERED KEY WAS DEFECTIVE)

NG

7.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
7.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
a.

Temporarily replace the certification ECU (smart key ECU assembly) with a new one and register the electrical key transmitter sub-assemblies.

HINT:

Refer to the Service Bulletin.


OK:

All of the electrical key transmitter sub-assemblies could be registered to the new certification ECU (smart key ECU assembly) successfully.



Result:
Proceed to
OK
NG



OK

END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

NG

GO TO OTHER PROBLEM (New Key cannot be Registered)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Start Function)>New Key cannot be Registered
