MAINTENANCE  TRANSMITTER BATTERY(w/ Entry and Start System)  REMOVAL


PROCEDURE

Hide 89745C 1.REMOVE TRANSMITTER BATTERY (for Type A)

NOTICE:

Take extra care when handling these precision electronic components.


a.

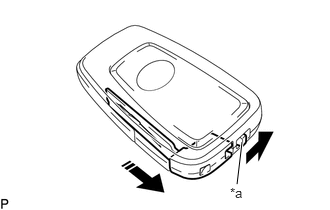

B469759C01
2.469,1.917 2.521,1.479 true 2.396,1.927 2.708,2.125 0.313,0.198 10 false *a
*a Release Hook Knob
V100135

Slide
V113147

Remove in this Direction


Slide the release hook knob and remove the emergency key as shown in the illustration.


b.

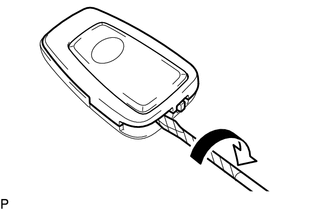

B476162C04
0,0 0,0 false
V100155

Protective Tape


Using a screwdriver with its tip wrapped in protective tape, remove the transmitter housing cover as shown in the illustration.

NOTICE:

Do not twist the transmitter housing cover with excessive force.



c.

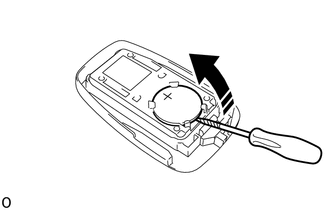

B550494C01
0,0 0,0 false
V100155

Protective Tape
V113147

Remove in this Direction


Using a screwdriver with its tape wrapped in protective tape, remove the transmitter battery (lithium battery (CR2032)) as shown in the illustration.

NOTICE:
·

Do not push the terminals with your finger.

·

Do not forcibly pry up the transmitter battery (lithium battery (CR2032)) as the terminals may be damaged.

·

Do not touch the transmitter battery with wet hands. Moisture may cause rust.

·

Do not touch or move any components inside the transmitter. It may interfere with proper operation.

·

When replacing the transmitter battery (lithium battery (CR2032)), remove any static electricity from your body by touching the vehicle, etc., as the static electricity may damage the electrical key transmitter sub-assembly.




Hide 89745C 2.REMOVE TRANSMITTER BATTERY (for Type B)

NOTICE:

Take extra care when handling these precision electronic components.


a.

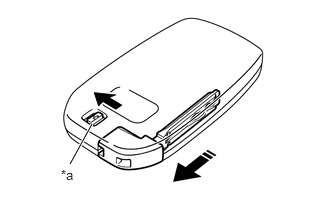

B553207C01
0.729,1.708 0.958,1.292 true 0.635,1.74 0.948,1.938 0.313,0.198 10 false *a
*a Release Hook Knob
V100135

Slide
V113147

Remove in this Direction


Slide the release hook knob and remove the emergency key as shown in the illustration.


b.

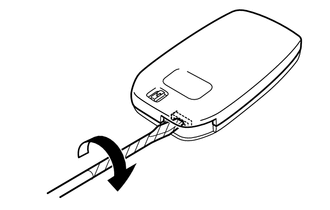

B553208C01
0,0 0,0 false
V100155

Protective Tape


Using a screwdriver with its tip wrapped in protective tape, remove the transmitter housing cover as shown in the illustration.

NOTICE:

Do not twist the transmitter housing cover with excessive force.



c.

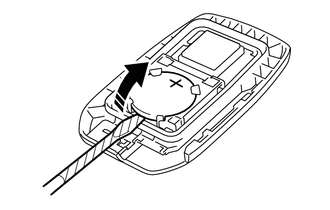

B553209C01
0,0 0,0 false
V100155

Protective Tape
V113147

Remove in this Direction


Using a screwdriver with its tape wrapped in protective tape, remove the transmitter battery (lithium battery (CR2032)) as shown in the illustration.

NOTICE:
·

Do not push the terminals with your finger.

·

Do not forcibly pry up the transmitter battery (lithium battery (CR2032)) as the terminals may be damaged.

·

Do not touch the transmitter battery with wet hands. Moisture may cause rust.

·

Do not touch or move any components inside the transmitter. It may interfere with proper operation.

·

When replacing the transmitter battery (lithium battery (CR2032)), remove any static electricity from your body by touching the vehicle, etc., as the static electricity may damage the electrical key transmitter sub-assembly.
