RM35X0E _58 Vehicle Interior _078378 THEFT DETERRENT / KEYLESS ENTRY _0396911 ENTRY AND START SYSTEM(for Entry Function) U

THEFT DETERRENT / KEYLESS ENTRY  ENTRY AND START SYSTEM(for Entry Function)  TERMINALS OF ECU

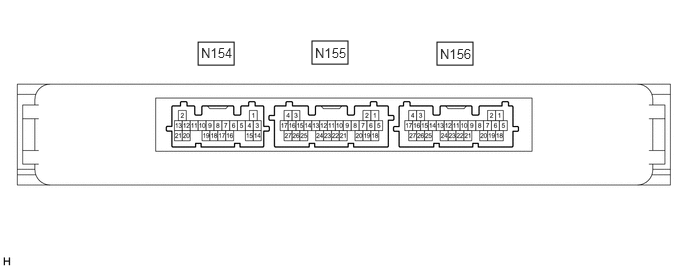

CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)


B416786E54
2.063,0.438 2.438,0.677 0.375,0.24 3.25,0.427 3.625,0.667 0.375,0.24 4.552,0.438 4.927,0.677 0.375,0.24 3.281,0.469 3.677,0.698 0.396,0.229 10 false N155 4.583,0.479 4.969,0.688 0.385,0.208 10 false N156 2.094,0.469 2.49,0.677 0.396,0.208 10 false N154

a.

Disconnect the N156 certification ECU (smart key ECU assembly) connector.


b.

Measure the voltage and resistance according to the value(s) in the table below.

Tester Connection Wiring Color Input/Output Terminal Description Condition Specified Condition Related Data List Item
N156-18 (E) - Body ground BR - Body ground - Ground Always Below 1 Ω -
N156-4 (+B) - N156-18 (E) Y - BR Input Power supply Always 11 to 14 V -
N156-15 (CUTB) - N156-18 (E) BE - BR Input Dark current cut pin* Always 11 to 14 V -

*: In order to prevent the vehicle battery from being depleted when the vehicle is shipped long distances, a fuse that cuts unnecessary electrical load while the vehicle is being shipped is installed in the circuit. If the fuse is removed, the circuit becomes open. If the fuse that is between the vehicle battery and terminal CUTB is removed and the circuit is open, the certification ECU (smart key ECU assembly) changes to a certain control mode (example: the transmission of radio waves every 0.25 seconds, which form the detection area, stops).



c.

Reconnect the N156 certification ECU (smart key ECU assembly) connector.


d.

Measure the voltage and check for pulses according to the value(s) in the table below.

Tester Connection Wiring Color Input/Output Terminal Description Condition Specified Condition Related Data List Item
N156-17 (IG1D) - N156-18 (E) GR - BR Output IG power supply Engine switch off → on (IG) 1 V or less → 9 V or higher
Power Source Control

IG Relay Monitor (Outside)


N156-16 (ACCD) - N156-18 (E) B - BR Output ACC power supply Engine switch off → on (ACC) 1 V or less → 8.5 V or higher
Power Source Control

ACC Relay Monitor


N155-17 (CLG1) - N156-18 (E) G - BR Output Output to driver door electrical key antenna
(request signal (challenge) is sent to door electrical key antenna from certification ECU (smart key ECU assembly) to form detection area) 		Procedure:
1.

Engine switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)


Pulse generation
(See waveform 1) 		-
Procedure:
1.

Engine switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)


Pulse generation
(See waveform 2)
N155-17 (CLG1) - N156-18 (E) G - BR Input Input to driver door lock sensor
(front door outside handle assembly (for Driver Door) lock sensor ON signal is sent to the certification ECU (smart key ECU assembly)) 		Procedure:
1.

Engine switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)

5.

Driver door lock sensor touched


Pulse generation
(See waveform 3)
Entry&Start

D-Door Trigger Switch


N155-17 (CLG1) - N156-18 (E) G - BR Input Input to driver door unlock sensor
(when system is in unlock standby mode and unlock sensor is touched, door electrical key antenna sends unlock sensor input signal (sensing) to certification ECU (smart key ECU assembly)) 		Procedure:
1.

Engine switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors locked

4.

Electrical key transmitter sub-assembly not near the vehicle

5.

Driver door unlock sensor touched


Pulse generation
(See waveform 4)
Entry&Start

D-Door Touch Sensor


N155-16 (CG1B) - N156-18 (E) B - BR Output Output to driver door electrical key antenna (terminal on opposite side of component from CLG1 output terminal) Procedure:
1.

Engine switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)


Pulse generation
(See waveform 5) 		-
Procedure:
1.

Engine switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)


Pulse generation
(See waveform 6)
N155-15 (CLG2) - N156-18 (E) P - BR Output Output to front passenger door electrical key antenna
(request signal (challenge) is sent to door electrical key antenna from certification ECU (smart key ECU assembly) to form detection area) 		Procedure:
1.

Engine switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)


Pulse generation
(See waveform 1) 		-
Procedure:
1.

Engine switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)


Pulse generation
(See waveform 2)
N155-15 (CLG2) - N156-18 (E) P - BR Input Input to front passenger door lock sensor
(front door outside handle assembly (for Front Passenger Door) lock sensor ON signal is sent to the certification ECU (smart key ECU assembly)) 		Procedure:
1.

Engine switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)

5.

Front passenger door lock sensor touched


Pulse generation
(See waveform 3)
Entry&Start

P-Door Trigger Switch


N155-15 (CLG2) - N156-18 (E) P - BR Input Input to front passenger door unlock sensor
(when system is in unlock standby mode and unlock sensor is touched, door electrical key antenna sends unlock sensor input signal (sensing) to certification ECU (smart key ECU assembly)) 		Procedure:
1.

Engine switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors locked

4.

Electrical key transmitter sub-assembly not near the vehicle

5.

Front passenger door unlock sensor touched


Pulse generation
(See waveform 4)
Entry&Start

P-Door Touch Sensor


N155-14 (CG2B) - N156-18 (E) L - BR Output Output to front passenger door electrical key antenna (terminal on opposite side of component from CLG2 output terminal) Procedure:
1.

Engine switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)


Pulse generation
(See waveform 5) 		-
Procedure:
1.

Engine switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)


Pulse generation
(See waveform 6)
N155-1 (CLG3) - N156-18 (E) L - BR Output Output to electrical key antenna (outside luggage compartment) Procedure:
1.

Engine switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

Luggage electrical key switch on


Pulse generation
(See waveform 7) 		-
N155-2 (CG3B) - N156-18 (E) P - BR Output Output to electrical key antenna (outside luggage compartment) (terminal on opposite side of component from CLG3 output terminal) Procedure:
1.

Engine switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

Luggage electrical key switch on


Pulse generation
(See waveform 7) 		-
N155-26 (TSW5) - N156-18 (E) SB - BR Input Luggage electrical key switch (unlock switch) signal input Luggage electrical key switch (unlock switch) on Pulse generation
(See waveform 8)
Entry&Start

Tr/B-Door Unlock SW


N155-27 (TSW6) - N156-18 (E) LG - BR Input Luggage electrical key switch (lock switch) signal input Luggage electrical key switch (lock switch) on Pulse generation
(See waveform 8)
Entry&Start

Tr/B-Door Lock SW


N155-18 (RCO) - N156-18 (E) G - BR Output Output to door control receiver
(Power supply for door control receiver. Certification ECU (smart key ECU assembly) outputs 5 V when receiver starts operating.) 		Procedure:
1.

Engine switch off

2.

Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area

3.

Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed


Pulse generation
(See waveform 9) 		-
N155-19 (RDAM) - N156-18 (E) P - BR Input Door control receiver verifies data received from electrical key transmitter sub-assembly.
Door control receiver sends data from electrical key transmitter sub-assembly to certification ECU (smart key ECU assembly) (Door control receiver intermittently grounds 12 V signal from certification ECU (smart key ECU assembly)). 		Proceed:
1.

Engine switch off

2.

All doors locked

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area

5.

Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed


Pulse generation
(See waveform 10) 		-
N155-20 (CSEL) - N156-18 (E) GR - BR Output Communication channel switching circuit Procedure:
1.

Engine switch off

2.

All doors closed


Pulse generation -

*: For details about the entry function detection area, refer to Operation Check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Entry Function)>OPERATION CHECK



e.

Using an oscilloscope, check waveform of the ECU.

NOTICE:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

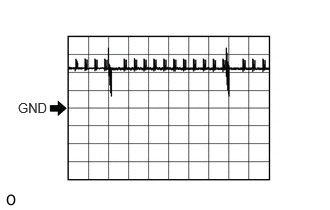

i.
B340872N01
0.188,1.042 0.646,1.24 0.458,0.198 10 false GND

Waveform 1

Item Content
Tester Connection N155-17 (CLG1) - N156-18 (E)
N155-15 (CLG2) - N156-18 (E)
Tool Setting 5 V/DIV., 500 ms/DIV.
Condition Procedure:
1.

Engine switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)



*: For details about the entry function detection area, refer to Operation Check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Entry Function)>OPERATION CHECK

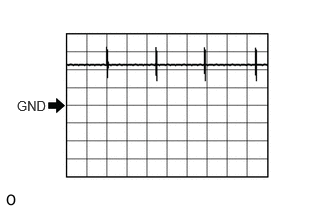

ii.
B340873N01
0.177,1.021 0.635,1.219 0.458,0.198 10 false GND

Waveform 2

Item Content
Tester Connection N155-17 (CLG1) - N156-18 (E)
N155-15 (CLG2) - N156-18 (E)
Tool Setting 5 V/DIV., 100 ms/DIV.
Condition Procedure:
1.

Engine switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)



*: For details about the entry function detection area, refer to Operation Check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Entry Function)>OPERATION CHECK

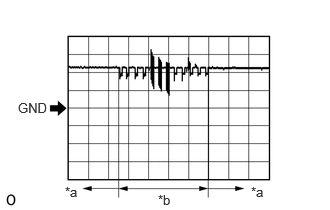

iii.
B340877C02
0.188,1.042 0.646,1.24 0.458,0.198 10 false GND 0.677,1.917 1.135,2.115 0.458,0.198 10 false *a 1.646,2 1.969,2.156 0.323,0.156 10 false *b 2.615,1.917 3.073,2.115 0.458,0.198 10 false *a
*a Lock sensor not touched
*b Lock sensor touched


Waveform 3

Front Door Outside Handle Assembly (for Driver Door)
Item Content
Tester Connection N155-17 (CLG1) - N156-18 (E)
Tool Setting 5 V/DIV., 40 ms/DIV.
Condition Procedure:
1.

Engine switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)

5.

Driver door lock sensor touched



Front Door Outside Handle Assembly (for Front Passenger Door)
Item Content
Tester Connection N155-15 (CLG2) - N156-18 (E)
Tool Setting 5 V/DIV., 40 ms/DIV.
Condition Procedure:
1.

Engine switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)

5.

Front passenger door lock sensor touched



*: For details about the entry function detection area, refer to Operation Check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Entry Function)>OPERATION CHECK

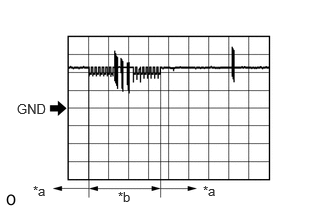

iv.
B340879C02
0.177,1.052 0.635,1.25 0.458,0.198 10 false GND 0.344,1.906 0.802,2.104 0.458,0.198 10 false *a 2.115,1.906 2.573,2.104 0.458,0.198 10 false *a 1.229,1.969 1.667,2.167 0.438,0.198 10 false *b
*a Unlock sensor not touched
*b Unlock sensor touched


Waveform 4

Front Door Outside Handle Assembly (for Driver Door)
Item Content
Tester Connection N155-17 (CLG1) - N156-18 (E)
Tool Setting 5 V/DIV., 50 ms/DIV.
Condition Procedure:
1.

Engine switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors locked

4.

Electrical key transmitter sub-assembly not near the vehicle

5.

Driver door unlock sensor touched



Front Door Outside Handle Assembly (for Front Passenger Door)
Item Content
Tester Connection N155-15 (CLG2) - N156-18 (E)
Tool Setting 5 V/DIV., 50 ms/DIV.
Condition Procedure:
1.

Engine switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors locked

4.

Electrical key transmitter sub-assembly not near the vehicle

5.

Front passenger door unlock sensor touched




v.
B367472N01
0.188,1.021 0.646,1.219 0.458,0.198 10 false GND

Waveform 5

Item Content
Tester Connection N155-16 (CG1B) - N156-18 (E)
N155-14 (CG2B) - N156-18 (E)
Tool Setting 5 V/DIV., 500 ms/DIV.
Condition Procedure:
1.

Engine switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought inside detection area*)



*: For details about the entry function detection area, refer to Operation Check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Entry Function)>OPERATION CHECK



vi.
B367473N01
0.188,1.021 0.646,1.219 0.458,0.198 10 false GND

Waveform 6

Item Content
Tester Connection N155-16 (CG1B) - N156-18 (E)
N155-14 (CG2B) - N156-18 (E)
Tool Setting 5 V/DIV., 100 ms/DIV.
Condition Procedure:
1.

Engine switch off

2.

All doors closed

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

All doors locked through wireless operation

(electrical key transmitter sub-assembly brought outside detection area*)



*: For details about the entry function detection area, refer to Operation Check.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Entry Function)>OPERATION CHECK



vii.
B340876N01
0.177,1.042 0.635,1.24 0.458,0.198 10 false GND

Waveform 7

Item Content
Tester Connection N155-1 (CLG3) - N156-18 (E)
N155-2 (CG3B) - N156-18 (E)
Tool Setting 2 V/DIV., 500 ms/DIV.
Condition Procedure:
1.

Engine switch off

2.

Electrical key transmitter sub-assembly brought outside vehicle

3.

All doors closed

4.

Luggage electrical key switch on




viii.
B251023C09
1.333,0.49 1.99,0.125 1.99,0.125 2.208,0.125 false 1.99,0.135 1.74,0.51 false 0.198,1.198 0.531,1.396 0.333,0.198 10 false GND 2.25,0.031 2.427,0.208 0.177,0.177 10 false *a
*a Checking for switch ON signal at short intervals


Waveform 8

Item Content
Tester Connection N155-26 (TSW5) - N156-18 (E)
Tool Setting 2 V/DIV., 500 ms/DIV.
Condition Luggage electrical key switch (unlock switch) on

Item Content
Tester Connection N155-27 (TSW6) - N156-18 (E)
Tool Setting 2 V/DIV., 500 ms/DIV.
Condition Luggage electrical key switch (lock switch) on


ix.
B251178C12
0.198,1 0.531,1.198 0.333,0.198 10 GND 1.01,1.885 1.198,2.042 0.188,0.156 10 *a 2.021,1.885 2.208,2.042 0.188,0.156 10 *b
*a Before lock or unlock switch of electrical key transmitter sub-assembly pressed
*b After lock or unlock switch of electrical key transmitter sub-assembly pressed


Waveform 9

Item Content
Tester Connection N155-18 (RCO) - N156-18 (E)
Tool Setting 2 V/DIV., 500 ms/DIV.
Condition Procedure:
1.

Engine switch off

2.

Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area

3.

Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed




x.
B251177C12
0.208,1 0.542,1.198 0.333,0.198 10 GND 1.021,1.896 1.208,2.052 0.188,0.156 10 *a 2.188,1.906 2.375,2.063 0.188,0.156 10 *b
*a Before lock or unlock switch of electrical key transmitter sub-assembly pressed
*b After lock or unlock switch of electrical key transmitter sub-assembly pressed


Waveform 10

Item Content
Tester Connection N155-19 (RDAM) - N156-18 (E)
Tool Setting 5 V/DIV., 500 ms/DIV.
Condition Procedure:
1.

Engine switch off

2.

All doors locked

3.

Electrical key transmitter sub-assembly not inside vehicle

4.

Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area

5.

Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed






CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)


E412753C01
3.208,7.729 3.615,8.01 0.406,0.281 5.969,6.26 6.375,6.542 0.406,0.281 2.021,4.49 2.427,4.771 0.406,0.281 5.208,4.469 5.615,4.75 0.406,0.281 1.375,6.073 1.781,6.354 0.406,0.281 3.448,6.083 3.854,6.365 0.406,0.281 5.083,5.969 5.49,6.25 0.406,0.281 5.083,6.302 5.49,6.583 0.406,0.281 3.156,3.052 3.563,3.333 0.406,0.281 5.219,3.042 5.625,3.323 0.406,0.281 1.365,3.063 1.771,3.344 0.406,0.281 0.635,2.167 0.917,2.167 true 1.583,1.438 1.865,1.438 true 1.594,1.698 1.875,1.698 true 1.594,1.146 1.875,1.146 true 1.573,0.51 1.573,0.219 1.573,0.219 1.729,0.219 false 0.854,0.969 1.167,1.167 0.313,0.198 10 false 3D 0.844,1.521 1.156,1.719 0.313,0.198 10 false 3C 0.844,1.854 1.156,2.052 0.313,0.198 10 false 3F 5.833,1.042 6.146,1.24 0.313,0.198 10 false 3B 5.833,1.604 6.146,1.802 0.313,0.198 10 false 3A 0.26,2.083 0.875,2.281 0.615,0.198 10 false 3E*A 0.26,2.281 0.875,2.479 0.615,0.198 10 false 3G*B 3.729,0.833 3.885,1.031 0.156,0.198 10 false A 3.375,7.781 3.531,7.979 0.156,0.198 10 false A 6.094,6.323 6.406,6.521 0.313,0.198 10 false 3F 2.104,4.542 2.417,4.74 0.313,0.198 10 false 3A 5.302,4.531 5.615,4.729 0.313,0.198 10 false 3B 1.5,6.156 1.813,6.354 0.313,0.198 10 false 3C 3.573,6.167 3.885,6.365 0.313,0.198 10 false 3D 5.198,6.021 5.51,6.219 0.313,0.198 10 false 3E 5.188,6.365 5.5,6.563 0.313,0.198 10 false 3G 5.552,6.031 5.865,6.229 0.313,0.198 10 false *A 5.563,6.333 5.875,6.531 0.313,0.198 10 false *B 3.25,3.125 3.708,3.323 0.458,0.198 10 false N19 5.281,3.115 5.74,3.313 0.458,0.198 10 false N18 1.427,3.135 1.885,3.333 0.458,0.198 10 false N20 1.938,1.365 2.396,1.563 0.458,0.198 10 false N19 1.938,1.615 2.396,1.813 0.458,0.198 10 false N20 1.927,1.063 2.385,1.26 0.458,0.198 10 false N18 1.771,0.146 2.083,0.344 0.313,0.198 10 false *1
*A for LHD *B for RHD
*1 Main body ECU (multiplex network body ECU) - -


a.

Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

for LHD:

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for LHD)>REMOVAL

for RHD:

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for RHD)>REMOVAL


b.

Measure the voltage and resistance according to the value(s) in the table below.

Tester Connection Wiring Color Input/Output Terminal Description Condition Specified Condition
A-11 (GND1) - Body ground - - Ground Always Below 1 Ω
A-31 (BECU) - Body ground - Input Battery power supply Always 11 to 14 V
