THEFT DETERRENT / KEYLESS ENTRY ENTRY AND START SYSTEM(for Entry Function) OPERATION CHECK

CHECK CUSTOMIZE PARAMETERS

NOTICE:: The operation check below is based on the non-customized initial condition of the vehicle.; Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Entry Function)>CUSTOMIZE PARAMETERS201906,202310,_58,_078378,_0396911,RM100000001IKN7,202310,999999,_58,_078378,_0396911,RM100000002FEYB,

CHECK ENTRY UNLOCK FUNCTION

a.

Perform a wireless lock door operation to lock the door, touch the unlock sensor built into the backside of the front door outside handle assembly of the driver door while carrying the electrical key transmitter sub-assembly and check that the door unlocks.

b.

Inspect the entry unlock detection area. Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly and approximately 0.7 to 1 m (2.30 to 3.28 ft.) from the vehicle as shown in the illustration and check that the LED (red) of the electrical key transmitter sub-assembly blinks.

c.

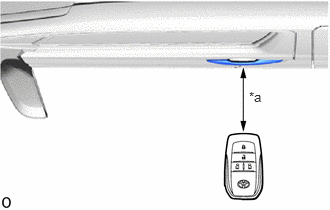

for LHD:

2.594,0.927 2.906,1.083 0.313,0.156 10 false *a

*a	0.7 to 1 m (2.30 to 3.28 ft.)

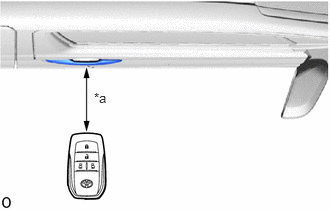

for RHD:

0.979,0.938 1.292,1.094 0.313,0.156 10 false *a

*a	0.7 to 1 m (2.30 to 3.28 ft.)

With the system in unlock standby mode, grasp the front door outside handle assembly (for Driver Door) and check that the door unlocks.

HINT:: ·

The system is in unlock standby mode when the electrical key transmitter sub-assembly is in the detection area and the key ID code sent by the electrical key transmitter sub-assembly matches the key ID code stored by the certification ECU (smart key ECU assembly).

·

Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the door outside handle assembly.

·

Inspect the front passenger door using the same procedure.

d.

for LHD:

0.427,1.906 0.667,1.906 0.667,1.906 1.729,1.229 true 0.208,1.813 0.458,2.083 0.25,0.271 10 true *a

*a	Unlock Sensor (Backside)

for RHD:

0.354,1.823 0.573,1.823 0.573,1.823 1.604,1.198 true 0.146,1.74 0.448,2.031 0.302,0.292 10 true *a

*a	Unlock Sensor (Backside)

Check the unlock response sensitivity. With the system in unlock standby mode, touch the area shown in the illustration and check that the door unlocks.

NOTICE:: If the sensor is touched too quickly or released too slowly, the sensor may not react and the door will not unlock.

HINT:: Inspect the front passenger door using the same procedure.

CHECK ENTRY LOCK FUNCTION

NOTICE:: If the electrical key transmitter sub-assembly is in the vehicle but outside the detection area (on the instrument panel, in the glove box, on the floor) and a door lock operation is performed, the key lock-in prevention function will not operate and the electrical key transmitter sub-assembly will be locked inside the vehicle.

a.

for LHD:

0.573,0.146 0.76,0.146 0.76,0.146 1.406,1.167 true 0.333,0.063 0.635,0.313 0.302,0.25 10 true *a

*a	Lock Sensor

for RHD:

2.021,1.125 2.604,0.24 2.604,0.24 2.781,0.24 true 2.844,0.167 3.188,0.458 0.344,0.292 10 true *a

*a	Lock Sensor

With the door closed and unlocked, touch the lock sensor of the front door outside handle assembly of the driver door while carrying the electrical key transmitter sub-assembly and check that the door locks.

HINT:: ·

If the door does not lock even when touching the lock sensor, touch it with your palm.

·

Inspect the front passenger door using the same procedure.

b.

for LHD:

2.594,0.927 2.906,1.083 0.313,0.156 10 false *a

*a	Approximately 0.3 m (0.984 ft.)

for RHD:

0.979,0.938 1.292,1.094 0.313,0.156 10 false *a

*a	Approximately 0.3 m (0.984 ft.)

Inspect the entry lock operating range. Hold the electrical key transmitter sub-assembly approximately 0.1 m (0.328 ft.) below the bottom edge of the door glass and approximately 0.3 m (0.984 ft.) from the vehicle as shown in the illustration, press the back end of the door outside handle sub-assembly and check that the door locks.

HINT:: ·

If the door does not lock even when touching the lock sensor, touch it with your palm.

·

As communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the front door outside handle assembly, the door may not lock if the lock sensor is touched with the same hand that is carrying the electrical key transmitter sub-assembly, etc.

·

If the key lock-in prevention function buzzer sounds, radio waves from the indoor electrical key antenna may be leaking from the vehicle.

·

The entry lock function cannot be operated more than 2 times consecutively.

·

Inspect the front passenger door using the same procedure.

CHECK ENTRY BACK DOOR UNLOCK FUNCTION

a.

Perform a wireless lock operation to lock the doors, operate the unlock switch of the luggage electrical key switch while carrying the electrical key transmitter sub-assembly and check that the back door opens.

b.

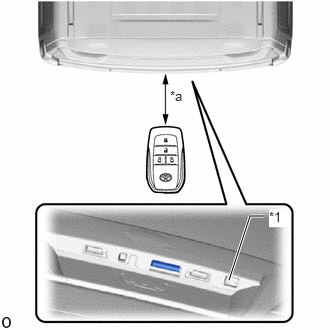

2.385,2.917 2.604,2.25 2.604,2.25 2.75,2.25 true 2.802,2.177 3.01,2.365 0.208,0.188 10 true *1 1.771,0.917 2.083,1.073 0.313,0.156 10 false *a

*1	Luggage Electrical Key Switch (Unlock Switch)
*a	0.7 to 1 m (2.30 to 3.28 ft.)

Inspect the entry back door open operating range. While standing at the rear of the vehicle, hold the electrical key transmitter sub-assembly so that it is facing the direction shown in the above illustration at the same height as the luggage electrical key switch and approximately 0.7 to 1 m (2.30 to 3.28 ft.) from the vehicle, press the luggage electrical key switch and check that the back door opens.

CHECK ENTRY BACK DOOR LOCK FUNCTION

NOTICE:: If the electrical key transmitter sub-assembly is in the vehicle but outside the detection area (on the instrument panel, in the glove box, on the floor) and a back door lock operation is performed, the key lock-in prevention function will not operate and the electrical key transmitter sub-assembly will be locked inside the vehicle.

a.

With the back door closed and unlocked, press the lock switch of the luggage electrical key switch while carrying the electrical key transmitter sub-assembly outside of the vehicle and check that the back door locks.

b.

2.385,2.917 2.604,2.25 2.604,2.25 2.75,2.25 true 2.802,2.177 3.01,2.365 0.208,0.188 10 true *1 1.771,0.917 2.083,1.073 0.313,0.156 10 false *a

*1	Luggage Electrical Key Switch (Lock Switch)
*a	0.7 to 1 m (2.30 to 3.28 ft.)

Inspect the entry back door lock operating range. Hold the electrical key transmitter sub-assembly at the same height as the rear bumper upper surface and approximately 0.7 to 1 m (2.30 to 3.28 ft.) from the vehicle as shown in the illustration, press the lock switch of the luggage electrical key switch and check that the back door locks.

HINT:: ·

Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the rear bumper.

·

If the key lock-in prevention function buzzer sounds, radio waves from the indoor electrical key antenna may be leaking from the vehicle.

CHECK PUSH-BUTTON START FUNCTION

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Start Function)>OPERATION CHECK201906,202310,_58,_078378,_0397001,RM100000001IM3X,202310,999999,_58,_078378,_0397001,RM100000002FWFM,

CHECK KEY LOCK-IN PREVENTION FUNCTION

NOTICE:: In order to prevent the electrical key transmitter sub-assembly from being locked inside the vehicle, perform this inspection with the window of a door open.

a.

Turn the engine switch off.

b.

Place the electrical key transmitter sub-assembly on a front seat, rear seat or luggage compartment.

c.

Close all of the doors and make sure they are unlocked.

d.

Touch a door lock sensor and check that the doors do not lock and the key lock-in prevention function buzzer sounds for approximately 5 seconds.

CHECK POWER SLIDE DOOR RESERVATION LOCK FUNCTION (w/ Power Slide Door System)

a.

Check that the front doors lock after the slide door is closed when the lock sensor is operated during the slide door closing operation via the power slide door close function.

CHECK ANSWER-BACK FUNCTION

a.

Check the answer-back function (hazard warning light flashing and buzzer sounding).

Entry Operation	Hazard Warning Light	Wireless Buzzer*
Entry Lock	Flashes once	Sounds once
Entry Unlock	Flashes twice	Sounds twice

*: w/ Wireless Door Lock Buzzer Answer-back Function

CHECK TRANSMITTER BATTERY SAVING MODE FUNCTION

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Start Function)>OPERATION CHECK201906,202310,_58,_078378,_0397001,RM100000001IM3X,202310,999999,_58,_078378,_0397001,RM100000002FWFM,

CHECK ENTRY CANCEL FUNCTION

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ENTRY AND START SYSTEM (for Start Function)>OPERATION CHECK201906,202310,_58,_078378,_0397001,RM100000001IM3X,202310,999999,_58,_078378,_0397001,RM100000002FWFM,

CHECK KEY DIAGNOSTIC MODE (Using GTS)

HINT:: ·

With key diagnostic mode, it is possible to check if the electrical key transmitter sub-assembly is operating properly with the selected electrical key antenna and within the selected detection area by the sounding of the buzzer.

·

If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

a.

Enter the following menus: Body Electrical / Entry&Start / Utility / Communication Check(Key Diag Mode).

Body Electrical > Entry&Start > Utility

Tester Display
Communication Check(Key Diag Mode)

50005 125 143

b.

Inspect the appropriate item according to the following table.

Tester Display	Inspection Item
[CH1/CH2] Overhead + Driver Side*1	Front door outside handle assembly (electrical key antenna) (for Driver Door)
[CH1] Overhead + Driver Side*1
[CH2] Overhead + Driver Side*1
[CH1/CH2] Overhead + Passenger Side*2	Front door outside handle assembly (electrical key antenna) (for Front Passenger Door)
[CH1] Overhead + Passenger Side*2
[CH2] Overhead + Passenger Side*2
[CH1/CH2] Overhead + Front Room*3	No. 1 indoor electrical key antenna assembly (front floor)
[CH1] Overhead + Front Room*3
[CH2] Overhead + Front Room*3
[CH1/CH2] Overhead + Rear Room*4	No. 1 indoor electrical key antenna assembly (center front floor)
[CH1] Overhead + Rear Room*4
[CH2] Overhead + Rear Room*4
[CH1/CH2] Overhead + Back Door*5	Electrical key antenna (outside luggage compartment)
[CH1] Overhead + Back Door*5
[CH2] Overhead + Back Door*5
[CH1/CH2] Overhead + Back Door (inside)/Rear2*6	No. 1 indoor electrical key antenna assembly (center rear floor)
[CH1] Overhead + Back Door (inside)/Rear2*6
[CH2] Overhead + Back Door (inside)/Rear2*6
[CH1/CH2] Immobiliser Amp*7	Amplifier (engine switch)
[CH1] Immobiliser Amp*7
[CH2] Immobiliser Amp*7
[CH1/CH2] Overhead + Room/Extra*8	No. 1 indoor electrical key antenna assembly (rear RH floor)
[CH1] Overhead + Room/Extra*8
[CH2] Overhead + Room/Extra*8
[CH1/CH2] Overhead + Extra2*9	No. 1 indoor electrical key antenna assembly (rear LH floor)
[CH1] Overhead + Extra2*9
[CH2] Overhead + Extra2*9

·

[CH1]: Channel 1 is set.

·

[CH2]: Channel 2 is set.

·

[CH1/CH2]: Channel 1 and 2 switch automatically at a specific interval*.

*: If the electrical key transmitter sub-assembly is detected with either channel 1 or 2, the buzzer sounds.

c.

Bring the electrical key transmitter sub-assembly near the selected electrical key antenna and check that the buzzer sounds.

HINT:: The buzzer sounds in short, repeated beeps for all items except "Overhead + Rear Room"*4. For "Overhead + Rear Room"*4, the buzzer sounds in one long, continuous beep.

d.

for LHD:

2.594,0.927 2.906,1.083 0.313,0.156 10 false *a

*a	0.7 to 1 m (2.30 to 3.28 ft.)

for RHD:

0.979,0.938 1.292,1.094 0.313,0.156 10 false *a

*a	0.7 to 1 m (2.30 to 3.28 ft.)

*1: Front door outside handle assembly (for Driver Door)

HINT:: ·

Hold the electrical key transmitter sub-assembly at the same height as the front door outside handle assembly in the position shown in the illustration.

·

*2: Perform the same inspection for the front passenger door.

e.

2.969,2.021 2.667,2.021 2.667,2.021 0.719,1.021 true 2.688,2.021 2.25,1.063 true 3.01,1.938 3.323,2.094 0.313,0.156 10 false *a

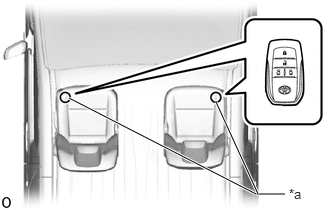

*a	Inspection Point

*3: No. 1 indoor electrical key antenna assembly (front floor)

HINT:: Place the electrical key transmitter sub-assembly on the front seat cushion of the driver seat or front passenger seat.

f.

0.625,0.698 2.76,0.104 2.76,0.104 2.948,0.104 true 2.219,0.729 2.698,0.125 true 3.042,0.031 3.354,0.229 0.313,0.198 10 false *a

*a	Inspection Point

*4: No. 1 indoor electrical key antenna assembly (center front floor)

HINT:: Place the electrical key transmitter sub-assembly on the rear No. 1 seat cushion.

g.

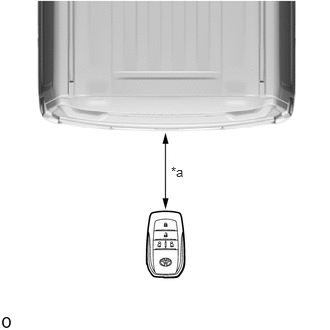

1.781,1.708 2.094,1.865 0.313,0.156 10 false *a

*a	0.7 to 1 m (2.30 to 3.28 ft.)

*5: Electrical key antenna (outside luggage compartment)

HINT:: Hold the electrical key transmitter sub-assembly at the same height as the rear bumper upper surface and align it with the center of the rear of the vehicle as shown in the illustration.

h.

2.135,0.677 2.448,0.25 true 0.667,0.708 2.438,0.229 2.438,0.229 2.979,0.229 true 3.052,0.156 3.365,0.313 0.313,0.156 10 false *a

*a	Inspection Point

*6: No. 1 indoor electrical key antenna assembly (center rear floor)

HINT:: Place the electrical key transmitter sub-assembly on the rear No. 2 seat cushion.

i.

2.083,0.469 2.229,0.271 2.229,0.271 2.365,0.271 true 0.74,0.292 0.885,0.292 0.885,0.292 1.094,0.5 true 0.521,0.188 0.833,0.385 0.313,0.198 10 false *1 2.417,0.177 2.729,0.375 0.313,0.198 10 false *2

*1	Engine Switch
*2	Electrical Key Transmitter Sub-assembly

*7: Amplifier (engine switch)

HINT:: While facing the logo side of the electrical key transmitter sub-assembly toward the engine switch, hold the transmitter near the engine switch.

j.

2.708,0.313 1.021,0.313 1.021,0.313 1.021,0.531 true 1.979,0.531 1.979,0.313 false 2.417,1.958 1.042,1.958 1.042,1.958 1.042,1.229 true 1.958,1.948 1.958,1.26 true 2.75,0.219 3.063,0.375 0.313,0.156 10 false *a 2.5,1.865 2.813,2.021 0.313,0.156 10 false *a

*a	Inspection Point

*8: No. 1 indoor electrical key antenna assembly (rear RH floor)

HINT:: Place the electrical key transmitter sub-assembly as shown in the illustration.

k.

0.417,0.313 1.583,0.313 1.583,0.313 1.583,0.531 true 1.104,0.542 1.104,0.313 false 0.396,1.354 1.573,1.354 1.573,1.354 1.573,1.229 true 1.094,1.344 1.094,1.24 true 0.188,0.219 0.5,0.375 0.313,0.156 10 false *a 0.208,1.26 0.521,1.417 0.313,0.156 10 false *a

*a	Inspection Point

*9: No. 1 indoor electrical key antenna assembly (rear LH floor)

HINT:: Place the electrical key transmitter sub-assembly as shown in the illustration.
