RM35X0E _58 Vehicle Interior _079257 SUPPLEMENTAL RESTRAINT SYSTEMS _0396679 AIRBAG SYSTEM(for Type C) C

SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM(for Type C)  B167B  Lost Communication with Front Door Pressure Sensor LH  B167C  Front Door Pressure Sensor LH Initialization Incomplete


DESCRIPTION

The side collision sensor LH circuit consists of the airbag sensor assembly and side airbag pressure sensor LH.

The side airbag pressure sensor LH detects impacts to the vehicle and sends signals to the airbag sensor assembly to determine if the SRS should be deployed.

These DTCs are stored when a malfunction is detected in the side collision sensor LH circuit.

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Test Mode / Check Mode
B167B Lost Communication with Front Door Pressure Sensor LH One of the following conditions is met:
·

The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the circuit for the side collision sensor LH for 2 seconds.

·

A side airbag pressure sensor LH malfunction.

·

An airbag sensor assembly malfunction.


·

Floor wire

·

Instrument panel wire

·

Front door wire LH

·

Side airbag pressure sensor LH

·

Airbag sensor assembly


Comes on Not applicable
B167C Front Door Pressure Sensor LH Initialization Incomplete One of the following conditions is met:
·

The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the circuit for the side collision sensor LH for 2 seconds.

·

A side airbag pressure sensor LH malfunction.

·

An airbag sensor assembly malfunction.


·

Floor wire

·

Instrument panel wire

·

Front door wire LH

·

Side airbag pressure sensor LH

·

Airbag sensor assembly


Comes on Not applicable

WIRING DIAGRAM

C414468
5.417,3.177 7.073,3.469 1.656,0.292 10 false Airbag Sensor Assembly 5.417,3.01 5.729,3.208 0.313,0.198 10 false V1 5.688,1.948 6.302,2.146 0.615,0.198 10 false PSL+ 5.708,2.698 6.323,2.896 0.615,0.198 10 false PSL- 4.365,1.938 4.823,2.135 0.458,0.198 10 false NV1 4.375,2.719 4.833,2.917 0.458,0.198 10 false NV1 2.521,1.948 2.979,2.146 0.458,0.198 10 false RN6 2.531,2.719 2.99,2.917 0.458,0.198 10 false RN6 1.135,1.917 1.75,2.115 0.615,0.198 10 false PSL+ 1.156,2.688 1.771,2.885 0.615,0.198 10 false PSL- 4.365,2.156 4.979,2.354 0.615,0.198 10 false PSL+ 2.49,2.156 3.104,2.354 0.615,0.198 10 false PSL+ 2.5,2.938 3.115,3.135 0.615,0.198 10 false PSL- 4.385,2.938 5,3.135 0.615,0.198 10 false PSL- 5.396,1.802 5.708,2 0.313,0.198 10 false 21 5.396,2.583 5.708,2.781 0.313,0.198 10 false 22 4.458,1.729 4.615,1.927 0.156,0.198 10 false 2 4.469,2.51 4.625,2.708 0.156,0.198 10 false 1 2.604,1.729 2.76,1.927 0.156,0.198 10 false 1 2.615,2.51 2.771,2.708 0.156,0.198 10 false 2 1.615,1.823 1.771,2.021 0.156,0.198 10 false 2 1.625,2.573 1.781,2.771 0.156,0.198 10 false 1 0.25,3.198 2.427,3.583 2.177,0.385 10 false Side Airbag Pressure Sensor LH 0.25,3.021 0.563,3.219 0.313,0.198 10 false R15

CAUTION / NOTICE / HINT

NOTICE:
·

After the engine switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

After replacing the airbag sensor assembly, refer to initialization.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE



PROCEDURE

1.CHECK CONNECTION OF CONNECTORS
a.

Turn the engine switch off.


b.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


c.

Check that the connectors are properly connected to the airbag sensor assembly and side airbag pressure sensor LH.


Result:
Proceed to
The connectors are properly connected
The connectors are not properly connected



The connectors are properly connected

2.CHECK CONNECTORS

The connectors are not properly connected

CONNECT CONNECTORS PROPERLY

2.CHECK CONNECTORS
a.
C414471C01
0.302,1.333 0.615,1.49 0.313,0.156 10 false *1 2.719,1.792 3.031,1.948 0.313,0.156 10 false *2 0.927,1 1.24,1.156 0.313,0.156 10 false *3 1.854,1.021 2.167,1.177 0.313,0.156 10 false *4
*1 Side Airbag Pressure Sensor LH
*2 Airbag Sensor Assembly
*3 Front Door Wire LH
*4 Floor Wire


Disconnect the connectors from the airbag sensor assembly and side airbag pressure sensor LH.


b.

Check that the connectors (on the airbag sensor assembly side and side airbag pressure sensor LH side) are not damaged.


Result:
Proceed to
The connectors are not deformed or damaged
The connectors are deformed or damaged



The connectors are not deformed or damaged

3.CHECK SIDE AIRBAG PRESSURE SENSOR LH CIRCUIT

The connectors are deformed or damaged

REPLACE FRONT DOOR WIRE LH OR FLOOR WIRE

3.CHECK SIDE AIRBAG PRESSURE SENSOR LH CIRCUIT
a.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

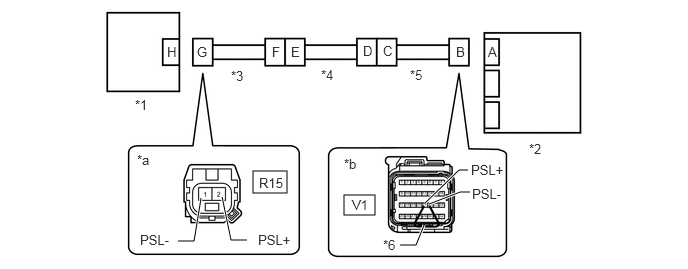

C418120C01
3.583,2.031 3.906,2.24 0.323,0.208 2.635,1.781 2.99,2.01 0.354,0.229 1.854,2.51 2.021,2.51 2.021,2.51 2.094,2.063 true 2.573,2.5 2.406,2.5 2.406,2.5 2.313,2.052 true 4.469,2.125 4.792,2 4.792,2 4.896,2 true 4.427,2.115 4.781,1.771 4.781,1.771 4.875,1.771 true 4.167,2.552 4.333,2.552 4.333,2.552 4.417,2.344 true 1.406,1.01 1.719,1.208 0.313,0.198 10 false *1 5.51,1.469 5.823,1.667 0.313,0.198 10 false *2 2.406,0.708 2.719,0.906 0.313,0.198 10 false *3 3.344,0.698 3.656,0.896 0.313,0.198 10 false *4 4.271,0.698 4.583,0.896 0.313,0.198 10 false *5 5.083,0.458 5.24,0.656 0.156,0.198 10 false A 4.75,0.458 5.021,0.823 0.271,0.365 10 false B 3.99,0.448 4.323,0.698 0.333,0.25 10 false C 3.781,0.448 4.135,1.021 0.354,0.573 10 false D 3.031,0.458 3.688,0.99 0.656,0.531 10 false E 2.833,0.458 3.083,0.854 0.25,0.396 10 false F 2.052,0.458 2.281,0.865 0.229,0.406 10 false G 1.74,0.458 2.052,0.865 0.313,0.406 10 false H 1.458,2.417 2.073,2.615 0.615,0.198 10 false PSL- 2.688,2.417 3.302,2.615 0.615,0.198 10 false PSL+ 3.667,2.052 4.125,2.25 0.458,0.198 10 false V1 1.427,1.583 1.74,1.781 0.313,0.198 10 false *a 3.583,1.625 3.896,1.823 0.313,0.198 10 false *b 2.698,1.823 3.156,2.021 0.458,0.198 10 false R15 4.917,1.938 5.531,2.135 0.615,0.198 10 false PSL- 4.906,1.688 5.521,1.885 0.615,0.198 10 false PSL+ 3.99,2.469 4.302,2.667 0.313,0.198 10 false *6
*1 Side Airbag Pressure Sensor LH *2 Airbag Sensor Assembly
*3 Front Door Wire LH *4 Instrument Panel Wire
*5 Floor Wire *6 Service Wire
*a Front view of wire harness connector
(to Side Airbag Pressure Sensor LH) 		*b Front view of wire harness connector
(to Airbag Sensor Assembly)



b.

Turn the engine switch on (IG).


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
R15-2 (PSL+) - Body ground Engine switch on (IG) Below 1 V
R15-1 (PSL-) - Body ground Engine switch on (IG) Below 1 V



d.

Turn the engine switch off.


e.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


f.

Using a service wire, connect terminals 21 (PSL+) and 22 (PSL-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.



g.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
R15-2 (PSL+) - R15-1 (PSL-) Always Below 1 Ω



h.

Disconnect the service wire from connector B.


i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
R15-2 (PSL+) - R15-1 (PSL-) Always 1 MΩ or higher
R15-2 (PSL+) - Body ground Always 1 MΩ or higher
R15-1 (PSL-) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

4.CHECK SIDE AIRBAG PRESSURE SENSOR LH

NG

5.CHECK CONNECTORS
4.CHECK SIDE AIRBAG PRESSURE SENSOR LH
a.
C414475C02
0.5,1.354 0.771,1.531 0.271,0.177 10 false *1 2.552,1.802 2.865,2.01 0.313,0.208 10 false *2
*1 Side Airbag Pressure Sensor RH
*2 Airbag Sensor Assembly


Connect the connector to the airbag sensor assembly.


b.

Interchange the side airbag pressure sensor LH with RH and connect the connectors to them.


c.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


d.

Turn the engine switch on (IG), and wait for at least 60 seconds.


e.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Clear DTCs
50002 188

f.

Turn the engine switch off.


g.

Turn the engine switch on (IG), and wait for at least 60 seconds.


h.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188
Result:
Proceed to
DTC B167B or B167C is output
DTC B166D or B166E is output
DTCs B166D, B166E, B167B and B167C are not output


HINT:

Codes other than DTC B166D, B166E, B167B and B167C may be output at this time, but they are not related to this check.



i.

Turn the engine switch off.


j.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


k.

Return the side airbag pressure sensor RH and LH to their original positions and connect the connectors to them.



DTC B167B or B167C is output

REPLACE AIRBAG SENSOR ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


DTC B166D or B166E is output

REPLACE SIDE AIRBAG PRESSURE SENSOR LH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Front Door)>REMOVAL


DTCs B166D, B166E, B167B and B167C are not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


5.CHECK CONNECTORS
a.
C414469C01
0.385,1.167 0.698,1.323 0.313,0.156 10 false *1 2.729,1.604 3.042,1.76 0.313,0.156 10 false *2 1.427,0.844 1.74,1 0.313,0.156 10 false *3 1.938,0.844 2.25,1 0.313,0.156 10 false *4
*1 Side Airbag Pressure Sensor LH
*2 Airbag Sensor Assembly
*3 Instrument Panel Wire
*4 Floor Wire


Disconnect the instrument panel wire connector from the floor wire.


b.

Check that the connectors (on the instrument panel wire side and floor wire side) are not damaged.


Result:
Proceed to
The connectors are not deformed or damaged
The connectors are deformed or damaged



The connectors are not deformed or damaged

6.CHECK FLOOR WIRE

The connectors are deformed or damaged

REPLACE INSTRUMENT PANEL WIRE OR FLOOR WIRE

6.CHECK FLOOR WIRE
a.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

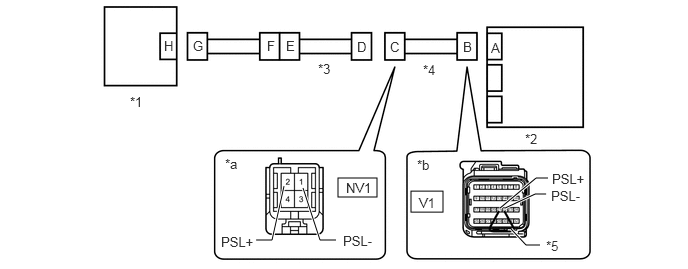

C418489C01
4.281,1.99 4.615,2.208 0.333,0.219 3.521,1.854 3.927,2.052 0.406,0.198 2.667,2.5 2.833,2.5 2.833,2.5 2.958,1.938 true 3.5,2.5 3.333,2.5 3.333,2.5 3.156,1.958 true 5.688,2.021 5.573,2.021 5.573,2.021 5.26,2.167 true 5.708,1.854 5.583,1.854 5.583,1.854 5.208,2.167 true 5.625,2.552 5.479,2.552 5.479,2.552 5.323,2.385 true 1.354,0.979 1.667,1.177 0.313,0.198 10 false *1 5.469,1.365 5.781,1.563 0.313,0.198 10 false *2 3.313,0.635 3.625,0.833 0.313,0.198 10 false *3 4.365,2.031 4.823,2.229 0.458,0.198 10 false V1 3.573,2.427 4.188,2.625 0.615,0.198 10 false PSL- 2.302,2.438 2.917,2.635 0.615,0.198 10 false PSL+ 5.75,1.781 6.365,1.979 0.615,0.198 10 false PSL+ 5.74,1.958 6.354,2.156 0.615,0.198 10 false PSL- 5.115,0.417 5.271,0.615 0.156,0.198 10 false A 4.823,0.406 4.99,0.625 0.167,0.219 10 false B 4.063,0.406 4.229,0.625 0.167,0.219 10 false C 3.719,0.406 4.052,0.802 0.333,0.396 10 false D 2.979,0.396 3.313,0.792 0.333,0.396 10 false E 2.781,0.396 3.115,0.792 0.333,0.396 10 false F 2.01,0.396 2.344,0.792 0.333,0.396 10 false G 1.708,0.396 1.865,0.594 0.156,0.198 10 false H 4.406,0.646 4.719,0.844 0.313,0.198 10 false *4 2.344,1.625 2.656,1.823 0.313,0.198 10 false *a 4.344,1.635 4.656,1.833 0.313,0.198 10 false *b 5.688,2.479 6,2.677 0.313,0.198 10 false *5 3.604,1.875 4.063,2.073 0.458,0.198 10 false NV1
*1 Side Airbag Pressure Sensor LH *2 Airbag Sensor Assembly
*3 Instrument Panel Wire *4 Floor Wire
*5 Service Wire - -
*a Front view of wire harness connector
(to Instrument Panel Wire) 		*b Front view of wire harness connector
(to Airbag Sensor Assembly)



b.

Turn the engine switch on (IG).


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
NV1-2 (PSL+) - Body ground Engine switch on (IG) Below 1 V
NV1-1 (PSL-) - Body ground Engine switch on (IG) Below 1 V



d.

Turn the engine switch off.


e.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


f.

Using a service wire, connect terminals 21 (PSL+) and 22 (PSL-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.



g.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
NV1-2 (PSL+) - NV1-1 (PSL-) Always Below 1 Ω



h.

Disconnect the service wire from connector B.


i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
NV1-2 (PSL+) - NV1-1 (PSL-) Always 1 MΩ or higher
NV1-2 (PSL+) - Body ground Always 1 MΩ or higher
NV1-1 (PSL-) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

7.CHECK CONNECTORS

NG

REPLACE FLOOR WIRE

7.CHECK CONNECTORS
a.
C414470C01
0.417,1.156 0.729,1.313 0.313,0.156 10 false *1 2.698,1.604 3.01,1.76 0.313,0.156 10 false *2 1,0.854 1.313,1.01 0.313,0.156 10 false *3 1.479,0.885 1.792,1.042 0.313,0.156 10 false *4
*1 Side Airbag Pressure Sensor LH
*2 Airbag Sensor Assembly
*3 Front Door Wire LH
*4 Instrument Panel Wire


Disconnect the front door wire LH connector from the instrument panel wire.


b.

Check that the connectors (on the front door wire LH side and instrument panel wire side) are not damaged.


Result:
Proceed to
The connectors are not deformed or damaged
The connectors are deformed or damaged



The connectors are not deformed or damaged

8.CHECK INSTRUMENT PANEL WIRE

The connectors are deformed or damaged

REPLACE FRONT DOOR WIRE LH OR INSTRUMENT PANEL WIRE

8.CHECK INSTRUMENT PANEL WIRE
a.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

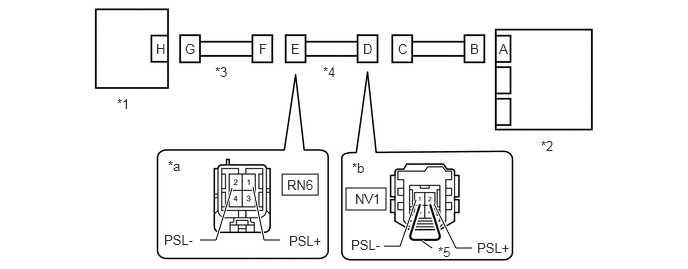

C414472C02
2.938,1.813 3.313,2.031 0.375,0.219 3.604,1.958 4.021,2.188 0.417,0.229 2.083,2.5 2.25,2.5 2.25,2.5 2.417,1.958 true 2.917,2.5 2.75,2.5 2.75,2.5 2.635,1.948 true 4.917,2.583 4.75,2.583 4.75,2.583 4.521,2.125 true 4,2.563 4.167,2.563 4.167,2.563 4.333,2.083 true 4.5,2.583 4.5,2.583 4.5,2.583 4.396,2.51 true 1.219,1 1.531,1.198 0.313,0.198 10 false *1 5.635,1.438 5.948,1.635 0.313,0.198 10 false *2 2.24,0.667 2.552,0.865 0.313,0.198 10 false *3 3.656,2.469 4.271,2.667 0.615,0.198 10 false PSL- 4.969,2.5 5.583,2.698 0.615,0.198 10 false PSL+ 3.01,2.427 3.625,2.625 0.615,0.198 10 false PSL+ 1.708,2.417 2.323,2.615 0.615,0.198 10 false PSL- 5.198,0.427 5.354,0.625 0.156,0.198 10 false A 4.896,0.427 5.063,0.646 0.167,0.219 10 false B 4.146,0.427 4.313,0.646 0.167,0.219 10 false C 3.781,0.427 4.115,0.823 0.333,0.396 10 false D 3.031,0.427 3.365,0.823 0.333,0.396 10 false E 2.698,0.427 3.031,0.823 0.333,0.396 10 false F 1.927,0.427 2.26,0.823 0.333,0.396 10 false G 1.625,0.427 1.781,0.625 0.156,0.198 10 false H 3.365,0.667 3.677,0.865 0.313,0.198 10 false *4 1.75,1.646 2.063,1.844 0.313,0.198 10 false *a 3.667,1.667 3.979,1.865 0.313,0.198 10 false *b 4.563,2.542 4.875,2.74 0.313,0.198 10 false *5 3.698,1.99 4.156,2.188 0.458,0.198 10 false NV1 2.99,1.844 3.448,2.042 0.458,0.198 10 false RN6
*1 Side Airbag Pressure Sensor LH *2 Airbag Sensor Assembly
*3 Front Door Wire LH *4 Instrument Panel Wire
*5 Service Wire - -
*a Front view of wire harness connector
(to Front Door Wire LH) 		*b Front view of wire harness connector
(to Floor Wire)



b.

Turn the engine switch on (IG).


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
RN6-1 (PSL+) - Body ground Engine switch on (IG) Below 1 V
RN6-2 (PSL-) - Body ground Engine switch on (IG) Below 1 V



d.

Turn the engine switch off.


e.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


f.

Using a service wire, connect terminals 2 (PSL+) and 1 (PSL-) of connector D.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.



g.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
RN6-1 (PSL+) - RN6-2 (PSL-) Always Below 1 Ω



h.

Disconnect the service wire from connector D.


i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
RN6-1 (PSL+) - RN6-2 (PSL-) Always 1 MΩ or higher
RN6-1 (PSL+) - Body ground Always 1 MΩ or higher
RN6-2 (PSL-) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE FRONT DOOR WIRE LH

NG

REPLACE INSTRUMENT PANEL WIRE
