RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0396513 BLOWER MOTOR CONTROLLER(for Rear Air Conditioning System) A

HEATING / AIR CONDITIONING BLOWER MOTOR CONTROLLER(for Rear Air Conditioning System) REMOVAL

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY RH

for Folding Type:

for Manual Captain Seat:

for Power Captain Seat:

for 60/40 Split Seat Type 60 Side:

Hide Display 67935 2.REMOVE BACK DOOR SCUFF PLATE

Hide Display 73233D 3.REMOVE OUTER LAP BELT ANCHOR COVER (w/ Seat Belt)

Hide Display 73360D 4.REMOVE REAR SEAT OUTER BELT ASSEMBLY RH (w/ Seat Belt)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0028,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0028,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0028,

Hide Display 67917C 5.REMOVE REAR DOOR SCUFF PLATE RH

Hide Display 67871E 6.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP RH

HINT:: Pull back the No. 1 slide door weatherstrip RH so that the rear quarter trim board assembly RH can be removed.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>REMOVAL201906,202310,_59,_078503,_0385653,RM100000001JGPJ_02_0010,202310,999999,_59,_078503,_0385653,RM100000002EPZ5_02_0010,

Hide Display 62510M 7.REMOVE QUARTER TRIM PANEL ASSEMBLY RH

Hide Display 87212C 8.REMOVE REAR AIR DUCT

0.292,0.156 0.552,0.365 0.26,0.208 12 true *A

*A	w/ Bypass Hose

w/ Bypass Hose:

Remove the hose.

Remove the 3 screws and rear air duct.

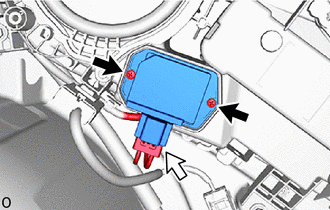

Hide Display 87165C 9.REMOVE BLOWER MOTOR CONTROL

Disconnect the connector.

Remove the 2 screws and blower motor control.
