RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0396491 GLOVE BOX LIGHT A

LIGHTING (INT) GLOVE BOX LIGHT INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 81260 1.INSTALL GLOVE BOX LIGHT ASSEMBLY

0,0 0,0 false

Install in this Direction

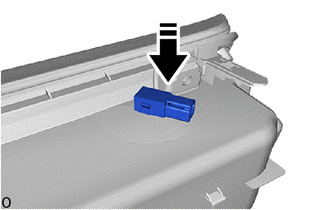

Insert in the direction indicated by the arrow as shown in the illustration.

0,0 0,0 false

Install in this Direction

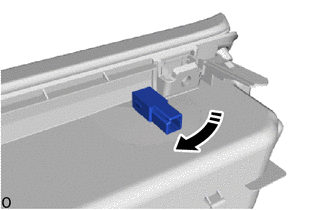

Turn in the direction indicated by the arrow as shown in the illustration to install the glove box light assembly.

Hide Display 55320 2.INSTALL LOWER NO. 2 INSTRUMENT PANEL ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0010,

Hide Display 55434B 3.INSTALL CENTER LOWER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0055,

Hide Display 55646 4.INSTALL NO. 3 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0025,

Hide Display 58534E 5.INSTALL CENTER FLOOR CARPET COVER LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0028,

Hide Display 58533C 6.INSTALL CENTER FLOOR CARPET COVER RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0002,

Hide Display 7.INSTALL FRONT CONSOLE BOX (w/ Console Tray)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION201906,999999,_58,_078375,_0380059,RM100000001IHPH,

Hide Display 55438A 8.INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL RETAINER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0004,

Hide Display 55312 9.INSTALL LOWER INSTRUMENT PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0005,

Hide Display 55642 10.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0007,

Hide Display 55317A 11.INSTALL INSTRUMENT SIDE PANEL RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0039,

Hide Display 55012A 12.INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0041,

Hide Display 55632B 13.INSTALL NO. 2 INSTRUMENT PANEL UNDER TRAY SUPPORT

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0078,

Hide Display 62111C 14.INSTALL COWL SIDE TRIM BOARD RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0044,

Hide Display 67913B 15.INSTALL FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0049,

Hide Display 67911B 16.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0050,

Hide Display 73900 17.INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>INSTALLATION201906,999999,_58,_079257,_0384937,RM100000001INDP_01_0188,

Hide Display 55433B 18.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0033,

Hide Display 55044C 19.INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0034,

Hide Display 55432D 20.INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0035,

Hide Display 77306 21.INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0036,

Hide Display 53601 22.INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0037,

Hide Display 55641 23.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0038,

Hide Display 55318C 24.INSTALL INSTRUMENT SIDE PANEL LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0040,

Hide Display 55011A 25.INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0042,

Hide Display 55631A 26.INSTALL NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0077,

Hide Display 62112 27.INSTALL COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0045,

Hide Display 67914B 28.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0049,

Hide Display 67912A 29.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0050,

Hide Display 30.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 31. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 32. PERFORM DIAGNOSTIC SYSTEM CHECK

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 33.CHECK SRS WARNING LIGHT

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 34.PERFORM SYSTEM INITIALIZATION AND CALIBRATION

Click hereVehicle Interior>LIGHTING (INT)>GLOVE BOX LIGHT>REMOVAL201906,999999,_58,_078381,_0396491,RM100000001IHS2,
