RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0396484 SPOT LIGHT(for Wagon) A

LIGHTING (INT) SPOT LIGHT(for Wagon) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RHD and LHD vehicles.

·

The procedure listed below is for the LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 81360T 1.INSTALL SPOT LIGHT ASSEMBLY (for Front Side)

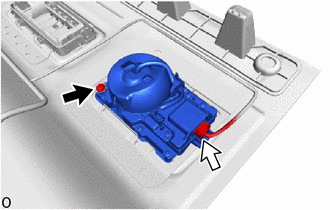

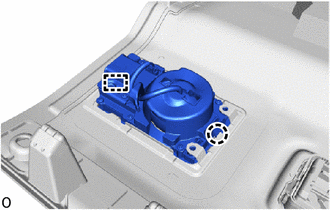

Attach the guide and claw to install the spot light assembly.

0,0 0,0 false

	Screw
	Connector

Install the 2 screws.

Connect the connector.

w/ Rear Cooler:

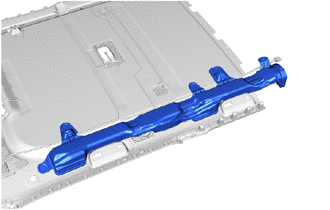

Install the air duct with hot-melt glue.

w/ Rear Air Conditioning System:

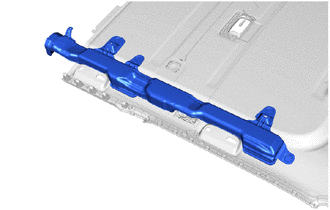

Install the air duct with hot-melt glue.

ii.

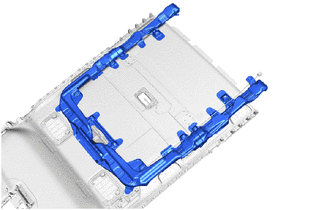

Install the air duct with hot-melt glue.

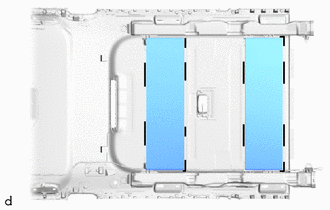

Align the markings on the roof headlining assembly with the 2 silencer pads to install them using hot-melt glue as shown in the illustration.

Hide Display 2.INSTALL WASHER HOSE ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REASSEMBLY201906,999999,_58,_078375,_0396474,RM100000001IHQ8_01_0022,

Hide Display 867C1 3.INSTALL MIRROR CAMERA WIRE (w/ Digital Inner Mirror)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REASSEMBLY201906,999999,_58,_078375,_0396474,RM100000001IHQ8_01_0023,

Hide Display 81360T 4.INSTALL SPOT LIGHT ASSEMBLY (for Rear Side)

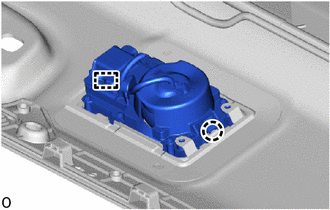

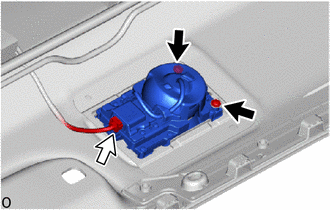

Attach the guide and claw to install the spot light assembly.

0,0 0,0 false

	Screw
	Connector

Install the screw.

Connect the connector.

Hide Display 5.INSTALL ROOF HEADLINING

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>INSTALLATION201906,999999,_58,_078375,_0396474,RM100000001IHQ6,

Hide Display 6.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Airbag System)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 7. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Airbag System)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 8. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Airbag System)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 9.CHECK SRS WARNING LIGHT (w/ Airbag System)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 10.INSPECT SEAT BELT WARNING SYSTEM (w/ Seat Belt Warning System)

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,
