RM35X0E _56 Audio / Visual / Telematics _078380 TELEMATICS _0380045 TELEPHONE ANTENNA A

TELEMATICS  TELEPHONE ANTENNA  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the No. 2 amplifier antenna assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link
Disconnect cable from negative (-) battery terminal Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system (Click here)

HINT:

When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL

CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



Hide 4.REMOVE TIRE PRESSURE WARNING ECU WITH WINDSHIELD HEADER PANEL DAMPER SUB-ASSEMBLY RH (for Standard Roof)

a.

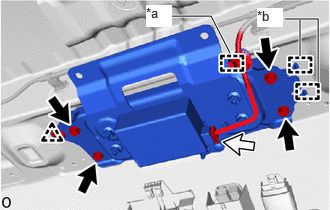

E423665C01
1.781,0.167 2.198,0.167 2.198,0.167 2.396,0.552 true 2.969,0.198 3.313,0.198 3.313,0.198 3.313,0.854 true 3.125,0.583 3.125,0.208 true 1.521,0.052 1.792,0.281 0.271,0.229 10 true *a 2.677,0.083 2.948,0.281 0.271,0.198 10 true *b
*a Clamp
*b Guide
V100135

Bolt
V100136

Connector


Disconnect the connector.


b.

Detach the wire harness clamp.


c.

Remove the 4 bolts.


d.

Detach the clip and guide and remove the tire pressure warning ECU with windshield header panel damper sub-assembly RH.


Hide 86300C 5.REMOVE NO. 2 AMPLIFIER ANTENNA ASSEMBLY

a.
E404886C01
0.073,0.063 0.385,0.292 0.313,0.229 12 true *A 0.083,2.406 0.396,2.656 0.313,0.25 12 true *B
*A for Standard Roof
*B for High Roof


Disconnect the connector.


b.

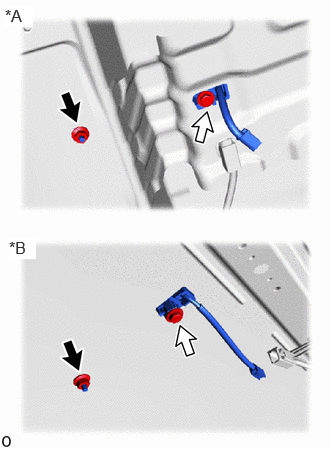

E404887C01
0.052,0.063 0.344,0.281 0.292,0.219 12 true *A 0.094,2.479 0.375,2.698 0.281,0.219 12 true *B
*A for Standard Roof
*B for High Roof
V100135

Nut
V100136

Bolt


Remove the nut and bolt.


c.

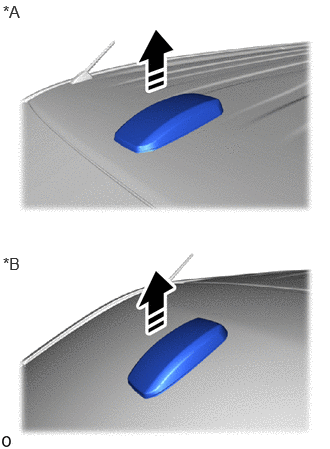

E404888C01
0.031,0.021 0.323,0.26 0.292,0.24 12 false *A 0.031,2.646 0.333,2.917 0.302,0.271 12 false *B
*A for Standard Roof
*B for High Roof
V113147

Remove in this Direction


Remove the No. 2 amplifier antenna assembly as shown in the illustration.
