LIGHTING (EXT)  HAZARD WARNING SWITCH  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during hazard warning signal switch removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures not Performed Link
Disconnect cable from negative (-) battery terminal Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system (Click here)

HINT:
·

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed Necessary Procedures Link

*: w/ Stop and start system

Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Full-trim, w/ Knee Airbag)

·

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL

·

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL


CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative(-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



Hide 55445B 14.REMOVE INSTRUMENT PANEL FINISH PLATE (for Full-trim, w/o Knee Airbag)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL

Hide 73900 16.REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (for Full-trim, w/ Knee Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>REMOVAL

Hide 67911B 19.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE RH (for Full-trim)

HINT:

Use the same procedure described for the LH side.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL


Hide 55438A 26.REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL RETAINER (for Full-trim)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL

Hide 35970F 34.REMOVE POSITION INDICATOR HOUSING ASSEMBLY (for Automatic Transmission)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL

Hide 55405B 35.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL

Hide 55900 36.REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL

Hide 55413D 40.REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (for Full-trim)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL

Hide 84330 42.REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

a.
E413268

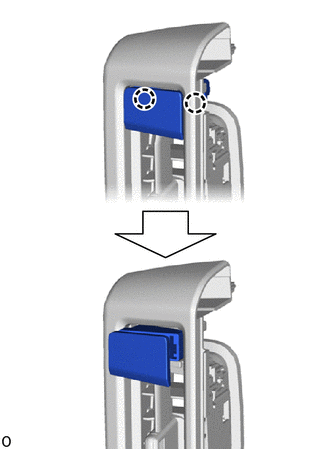

Detach the claw to remove the hazard warning signal switch assembly.
