LIGHTING (INT)  LIGHTING SYSTEM  Interior Light Auto Cut Circuit


DESCRIPTION

When the battery saving control operates, the main body ECU (multiplex network body ECU) controls the operation of the DOME CUT and DOME CUT NO. 2 relay to turn off the interior lights.

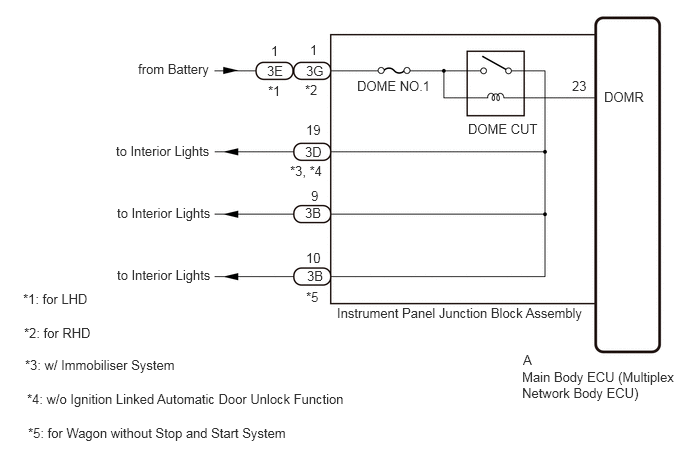

WIRING DIAGRAM

E421455E01
5.438,3.844 7.125,4.229 1.688,0.385 10 false Main Body ECU (Multiplex Network Body ECU) 5.448,3.667 5.604,3.865 0.156,0.198 10 false A 5.958,0.813 6.271,1.01 0.313,0.198 10 false 23 6.292,0.927 6.906,1.125 0.615,0.198 10 false DOMR 4.875,1.26 6.24,1.521 1.365,0.26 10 false DOME CUT 2.792,0.865 3.104,1.063 0.313,0.198 10 false *1 3.177,0.854 3.49,1.052 0.313,0.198 10 false *2 1.438,0.635 3.271,0.833 1.833,0.198 10 false from Battery 2.781,0.656 3.094,0.854 0.313,0.198 10 false 3E 3.188,0.656 3.5,0.854 0.313,0.198 10 false 3G 2.823,0.448 2.979,0.646 0.156,0.198 10 false 1 3.229,0.438 3.385,0.635 0.156,0.198 10 false 1 0.24,3.031 1.927,3.229 1.688,0.198 10 false *1: for LHD 1.208,1.49 3.958,1.688 2.75,0.198 10 false to Interior Lights 1.219,2.135 3.969,2.333 2.75,0.198 10 false to Interior Lights 3.177,1.5 3.49,1.698 0.313,0.198 10 false 3D 3.177,2.135 3.49,2.333 0.313,0.198 10 false 3B 3.24,1.958 3.396,2.156 0.156,0.198 10 false 9 3.188,1.271 3.5,1.469 0.313,0.198 10 false 19 3.021,1.698 3.938,1.896 0.917,0.198 10 false *3, *4 3.719,0.813 5.094,1.01 1.375,0.198 10 false DOME NO.1 0.25,3.385 1.938,3.583 1.688,0.198 10 false *2: for RHD 0.26,3.719 2.24,3.927 1.979,0.208 10 false *3: w/ Immobiliser System 0.281,4.073 4.052,4.427 3.771,0.354 10 false *4: w/o Ignition Linked Automatic Door Unlock Function 3.51,3.177 6.292,3.385 2.781,0.208 10 false Instrument Panel Junction Block Assembly 1.219,2.781 3.969,2.979 2.75,0.198 10 false to Interior Lights 0.292,4.427 4.063,4.781 3.771,0.354 10 false *5: for Wagon without Stop and Start System 3.198,2.792 3.51,2.99 0.313,0.198 10 false 3B 3.188,2.604 3.5,2.802 0.313,0.198 10 false 10 3.188,3.01 3.5,3.208 0.313,0.198 10 false *5

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

w/ Entry and Start System:

Before replacing the main body ECU (multiplex network body ECU), refer to Service Bulletin.



PROCEDURE

1.PERFORM ACTIVE TEST USING GTS
a.

Perform the Active Test according to the display on the GTS.

Click hereVehicle Interior>LIGHTING (INT)>LIGHTING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Main Body > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Relay for Interior Light Auto Cut Function DOME CUT relay ON or OFF When performing this Active Test, turn all the interior lights on.
·

OFF: DOME CUT relay on (interior lights turn on)

·

ON: DOME CUT relay off (interior lights turn off)


Body Electrical > Main Body > Active Test
Tester Display
Relay for Interior Light Auto Cut Function
50004 123 66
OK:

All of the interior lights turn off when ON is selected.



Result:
Proceed to
OK
NG



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereVehicle Interior>LIGHTING (INT)>LIGHTING SYSTEM>PROBLEM SYMPTOMS TABLE


NG

2.CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
2.CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
a.

Remove the instrument panel junction block assembly.

for LHD:

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for LHD)>REMOVAL

for RHD:

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for RHD)>REMOVAL

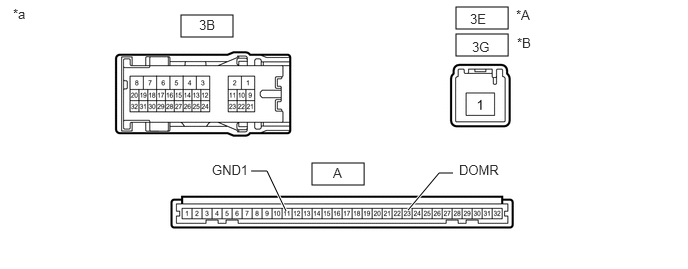

E361207C10
1.885,0.156 2.427,0.385 0.542,0.229 4.75,0.354 5.292,0.583 0.542,0.229 3.25,1.698 3.792,1.927 0.542,0.229 4.75,0.073 5.292,0.302 0.542,0.229 4.25,2.188 4.573,1.802 4.573,1.802 4.719,1.802 true 2.979,2.198 2.781,1.781 2.781,1.781 2.615,1.781 true 0.135,0.063 0.448,0.219 0.313,0.156 10 false *a 4.917,0.406 5.198,0.635 0.281,0.229 10 false 3G 2.073,0.177 2.354,0.406 0.281,0.229 10 false 3B 3.469,1.719 3.75,1.948 0.281,0.229 10 false A 4.781,1.688 5.24,1.885 0.458,0.198 10 false DOMR 2.208,1.688 2.667,1.885 0.458,0.198 10 false GND1 4.896,0.115 5.177,0.344 0.281,0.229 10 false 3E 5.375,0.073 5.656,0.302 0.281,0.229 10 false *A 5.385,0.365 5.667,0.594 0.281,0.229 10 false *B
*A for LHD *B for RHD
*a Component without harness connected
(Instrument Panel Junction Block Assembly) 		- -



b.

Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

for LHD:

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for LHD)>REMOVAL

for RHD:

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for RHD)>REMOVAL



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for LHD
Tester Connection Condition Specified Condition
A-23 (DOMR) - A-11 (GND1) Battery not connected to 3E-1 and A-23 (DOMR) 10 kΩ or higher

for RHD
Tester Connection Condition Specified Condition
A-23 (DOMR) - A-11 (GND1) Battery not connected to 3G-1 and A-23 (DOMR) 10 kΩ or higher



d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
for LHD
Tester Connection Condition Specified Condition
3B-19 - Battery negative (-) terminal Battery positive (+) → 3E-1
Battery negative (-) → A-23 (DOMR) 		11 to 14 V
Battery not connected to 3E-1 and A-23 (DOMR) Below 1 V

for RHD
Tester Connection Condition Specified Condition
3B-19 - Battery negative (-) terminal Battery positive (+) → 3G-1
Battery negative (-) → A-23 (DOMR) 		11 to 14 V
Battery not connected to 3G-1 and A-23 (DOMR) Below 1 V



Result:
Result Proceed to
OK (for LHD) A
OK (for RHD) B
NG (for LHD) C
NG (for RHD) D



A

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for LHD)>REMOVAL


B

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for RHD)>REMOVAL


C

REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for LHD)>REMOVAL


D

REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for RHD)>REMOVAL
