RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396102 HEADLIGHT ECU A

LIGHTING (EXT)  HEADLIGHT ECU  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81134 1.INSTALL HEADLIGHT GASKET

NOTICE:
·

If the headlight gasket has been removed, replace it with a new one.

·

When installing a new headlight gasket, use static electricity countermeasures SST (desktop antistatic mat set) and observe all precautions to prevent damage to the system by electrostatic discharge (ESD).



SST
09890-47010  (09891-04020, 09891-04010, 09891-04030, 09891-04040)

a.
B541927

Install a new headlight gasket to the headlight light ECU sub-assembly LH.


Hide 81056A 2.INSTALL HEADLIGHT ECU SUB-ASSEMBLY LH

NOTICE:
·

Prevention of static electricity is required during this procedure.

·

Use static electricity countermeasures SST (desktop antistatic mat set) and observe all precautions to prevent damage to the system by electrostatic discharge (ESD).

·

If the headlight ECU sub-assembly LH has been dropped, replace it with a new one.

·

Perform work using clean rubber gloves.

·

Do not touch the headlight ECU sub-assembly LH connector with bare hands.



SST
09890-47010  (09891-04010, 09891-04020, 09891-04030, 09891-04040)

a.

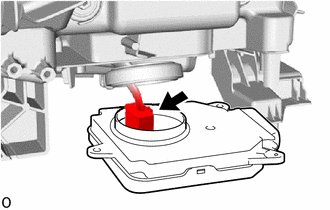

B541926

Connect the connector.

NOTICE:

Do not drop the connector in the headlight assembly LH.



b.

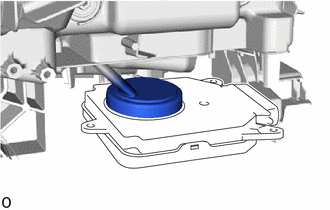

B541925

Return the connector cover to its original position.


c.

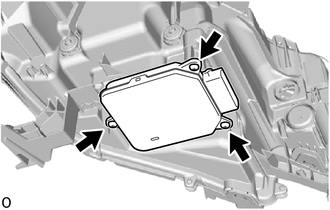

B541924

Install the headlight ECU sub-assembly LH with the 3 screws.
