LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for LED Headlight)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure described below is for the LH side.



PROCEDURE

Hide 1.INSTALL HEADLIGHT ASSEMBLY LH

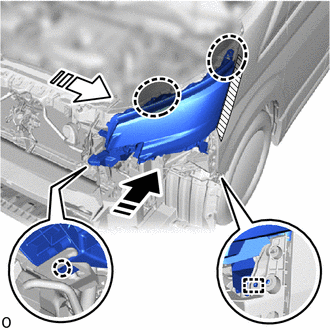

a.
B544572C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Attach the claw and set the headlight assembly LH in the direction indicated by the arrow (1) to the vehicle.


b.

Slide the headlight assembly LH in the direction indicated by the arrow (2) and attach the guide.


c.

Place your hand on the 2 brackets of the headlight assembly LH and set them on the screw seats.

NOTICE:

Be careful not to break the bracket.



d.

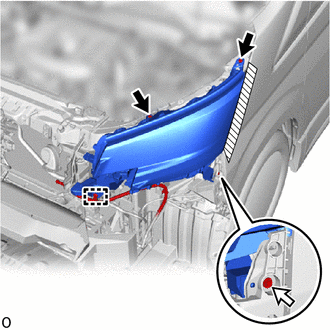

B544570C02
0,0 0,0 false
V100135

Screw
V100136

Bolt


Install the headlight assembly LH with bolt and 2 screws.

Torque:
Bolt : 5.4 N*m (55 kgf*cm, 48 in.*lbf)


e.

w/ Headlight Cleaner System:

i.

Attach the clamp.



f.

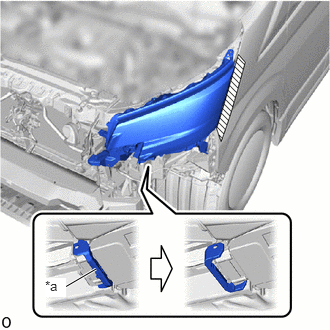

B544574C01
0.677,2.99 1,2.802 true 0.469,2.896 0.688,3.094 0.219,0.198 10 true *a
*a Connector Lock Lever
V100155

Protective Tape


Connect the connector and lock the connector lock lever under the headlight assembly LH.


g.

Remove the protective tape.


h.
B544925C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip and claw and return the fender apron mudguard seal sub-assembly LH to its original position.
