BRAKE SYSTEM (OTHER)  VACUUM RESERVOIR(for RHD)  INSTALLATION


PROCEDURE

Hide 44740 1.INSTALL VACUUM RESERVOIR ASSEMBLY

a.
C412565

Install the vacuum reservoir assembly with the 2 nuts.

Torque:
8.5 N*m (87 kgf*cm, 75 in.*lbf)


Hide 44730 2.TIGHTEN BRAKE VACUUM CHECK VALVE ASSEMBLY

HINT:

This procedure is only performed when the brake vacuum check valve is being replaced or inspected.


a.
C412564

Tighten the vacuum check valve assembly.

Torque:
29.4 N*m (300 kgf*cm, 22 ft.*lbf)


Hide 3.CONNECT VACUUM HOSE

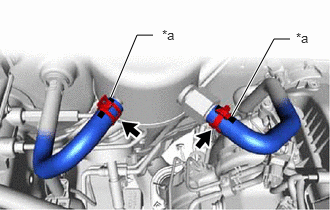

a.
C414051C01
2.417,1.208 2.854,0.406 2.854,0.406 3.021,0.406 true 1.156,1.01 1.427,0.365 1.427,0.365 1.594,0.365 true 3.083,0.313 3.375,0.563 0.292,0.25 10 false *a 1.688,0.281 1.979,0.531 0.292,0.25 10 false *a
*a Paint Mark


Connect the 2 vacuum hoses and slide the clip to secure it.

NOTICE:
·

When connecting the vacuum hose, face the paint mark up.

·

Make sure that the tabs of the clip are facing upward.
