DOOR / HATCH  SLIDE DOOR(except Wagon)  REASSEMBLY

Attach the claw and install the cushion.

Install the slide door open striker RH with the 3 bolts.

Torque:

27.5 N*m (280 kgf*cm, 20 ft.*lbf)

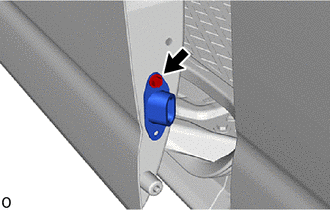

Temporarily install the slide door down male stopper with the 2 bolts.

HINT:

When installing the slide door down female stopper, install the slide door down male stopper.

1.594,0.365 1.823,0.573 0.229,0.208 10 true (1) 0.948,1.385 1.177,1.594 0.229,0.208 10 true (2)

Install the rear door corner bracket RH with the 2 bolts.

Torque:

7.5 N*m (76 kgf*cm, 66 in.*lbf)

Temporarily install the slide door open stop RH with the 2 bolts.

HINT:

When installing the slide door upper roller assembly RH, install the slide door open stop RH.

Install the slide door lower roller assembly RH with the 4 bolts.

Torque:

19.5 N*m (199 kgf*cm, 14 ft.*lbf)

Temporarily install the slide door upper roller assembly RH with the 2 bolts.

0,0 0,0 false

MP grease

Apply MP grease between the pin and roller as shown in the illustration.

Install the slide door center hinge assembly RH with the 2 bolts.

Torque:

19.5 N*m (199 kgf*cm, 14 ft.*lbf)

0.958,3.083 1.135,3.26 0.177,0.177 10 false A 1.927,2.583 2.104,2.76 0.177,0.177 10 false B 1.917,2.448 2.094,2.625 0.177,0.177 10 false C 1.573,2.115 1.75,2.292 0.177,0.177 10 false D 1.396,2.667 1.573,2.844 0.177,0.177 10 false D 2.094,1.854 2.5,2.042 0.406,0.188 10 false D-D

for High Roof:

0,0 0,0 false

MP Grease

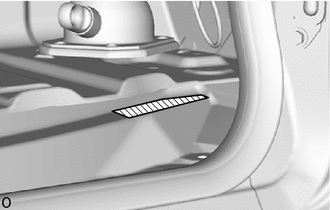

Apply MP grease to the lower slide door rail RH as shown in the illustration.

2.365,3.729 2.083,3.375 true 2.365,3.729 2.604,3.927 0.24,0.198 10 true *a

*a

Cutout

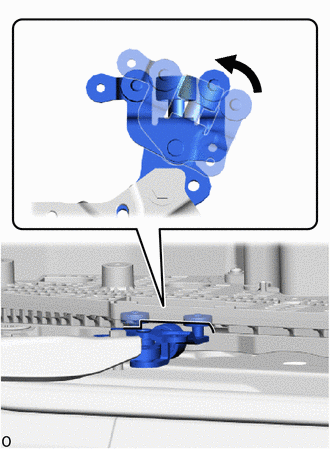

Rotate the roller part of the slide door lower roller arm sub-assembly RH counterclockwise to connect the slide door lower roller arm sub-assembly RH to the cutout of the slide door motor unit RH.

NOTICE:

·

Support the lower portion of the slide door RH when connecting the slide door lower roller arm sub-assembly RH, as the slide door RH becomes unstable.

·

Work with 2 or more persons when connecting the slide door RH in order to prevent deformation and damage.

0,0 0,0 false

Install in this Direction

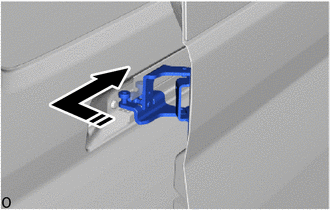

Install the slide door center hinge assembly RH from the rear part of the center slide door rail RH.

0,0 0,0 false

Install in this Direction

Install the roller part of the slide door upper roller assembly RH from the rear part of the upper slide door rail RH, and then install the slide door RH as shown in the illustration.

w/ Power Slide Door:

i.

Move the slide door RH so that the 2 bolts are visible as shown in the illustration.

0,0 0,0 false

Install in this Direction

Install the wire harness protector.

0,0 0,0 false

	Ground Bolt
	Connector

Connect the wire harness (w/o Power Slide Door).

Connect the wire harness (w/ Power Slide Door).

0,0 0,0 false

Install in this Direction

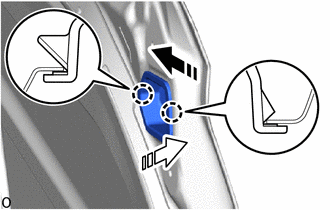

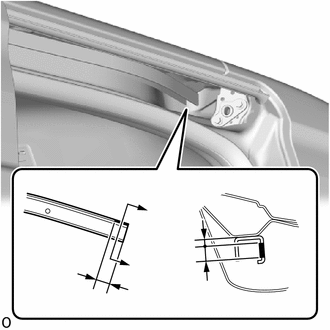

Attach the guide and install the slide door upper rail cushion RH as shown in the illustration.

2.188,1.615 2.385,1.479 true 2.427,1.365 2.615,1.542 0.188,0.177 10 true *a

*a	Matchmark
	Install in this Direction

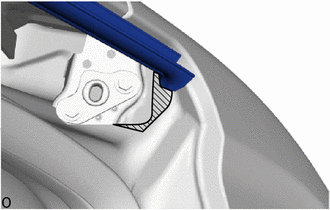

Align the matchmark on the body side with the matchmark on a new No. 2 slide door weatherstrip RH and install the No. 2 slide door weatherstrip RH as shown in the illustration.

NOTICE:

When installing, make sure that non-drying sealer does not adhere to the body and slide door.

HINT:

1.729,1.063 2.865,0.865 true 2.906,0.75 3.313,1.094 0.406,0.344 10 false *a

*a	Vehicle Body

Check that the No. 2 slide door weatherstrip RH contacts the body surface.

0.583,3.208 0.948,3.542 false 0.396,3.115 0.708,3.313 0.313,0.198 10 false *a

*a	Clip (part a)
	Install in this Direction (1)
	Install in this Direction (2)

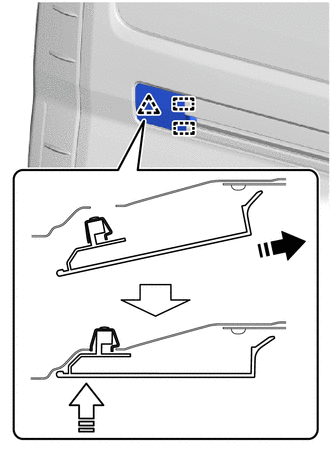

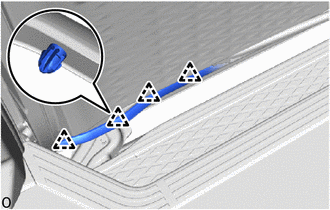

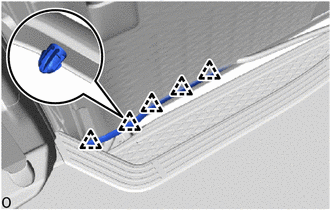

Slide the slide rail end moulding sub-assembly RH in the direction (1) indicated by the arrow shown in the illustration and attach the guide.

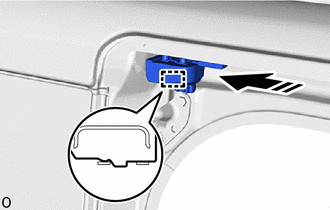

Attach the claw and install the rear door dust proof seal.

HINT:

Use the same procedure described for the other side.

Attach the claw and install the cushion.

HINT:

Use the same procedure described for the other side.

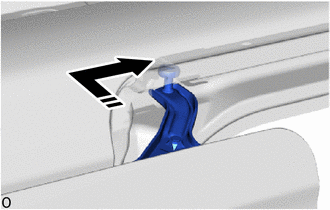

Attach the guide.

0.51,0.167 0.74,0.375 0.229,0.208 10 true (1) 0.927,0.354 1.156,0.563 0.229,0.208 10 true (2) 1.375,0.583 1.604,0.792 0.229,0.208 10 true (3) 1.802,0.729 2.031,0.938 0.229,0.208 10 true (4) 2.333,1.031 2.563,1.24 0.229,0.208 10 true (5) 2.615,1.167 2.844,1.375 0.229,0.208 10 true (6) 2.906,1.344 3.135,1.552 0.229,0.208 10 true (7) 3.115,1.615 3.344,1.823 0.229,0.208 10 true (8)

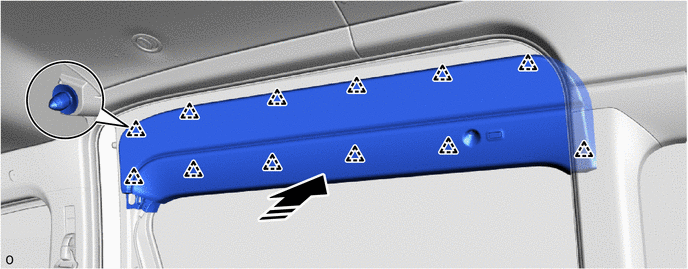

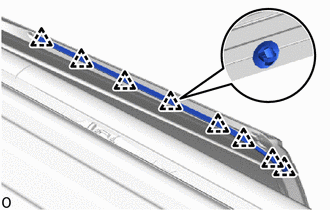

Attach the clip and install the center door upper weatherstrip RH in the order shown in the illustration.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Attach the claw and install the rear door upper trim cover RH as shown in the illustration.

1.135,0.448 1.344,0.646 0.208,0.198 10 true (1) 1.292,1.635 1.5,1.833 0.208,0.198 10 true (2)

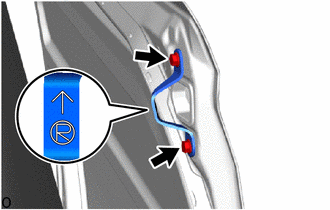

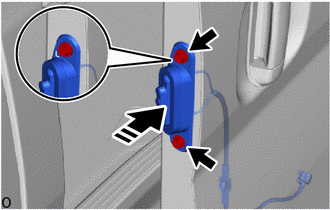

Install slide door upper inside panel extension RH with the 2 bolts in the order shown in the illustration.

Torque:

7.5 N*m (76 kgf*cm, 66 in.*lbf)

HINT:

Install the slide door upper inside panel extension RH so that the arrow mark faces the top of the vehicle as shown in the illustration.

Connect the slide door down female stopper with the bolt.

Temporarily install the slide door down female stopper with the 2 bolts.

Attach the claw and install the front speaker cover with the 3 screws.

0,0 0,0 false

	Bolt
	Connector

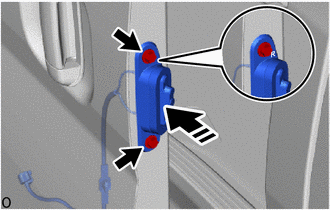

Attach the guide and install the slide door lock remote control assembly RH with the 4 bolts.

Torque:

7.5 N*m (76 kgf*cm, 66 in.*lbf)

0,0 0,0 false

Install in this Direction

for LH Side:

0,0 0,0 false

Install in this Direction

for RH Side:

Connect the connector and attach the clamp.

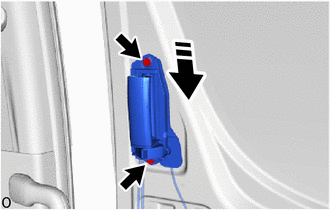

Install the rear door outside handle assembly RH with the 2 bolts.

Torque:

5.5 N*m (56 kgf*cm, 49 in.*lbf)

Install the hole plug.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

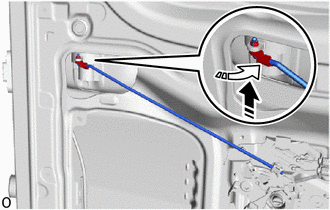

Connect the rear door lock remote control link RH in the direction indicated by the arrow (1) as shown in the illustration.

Attach the clamp and install the rear door lock remove control link RH.

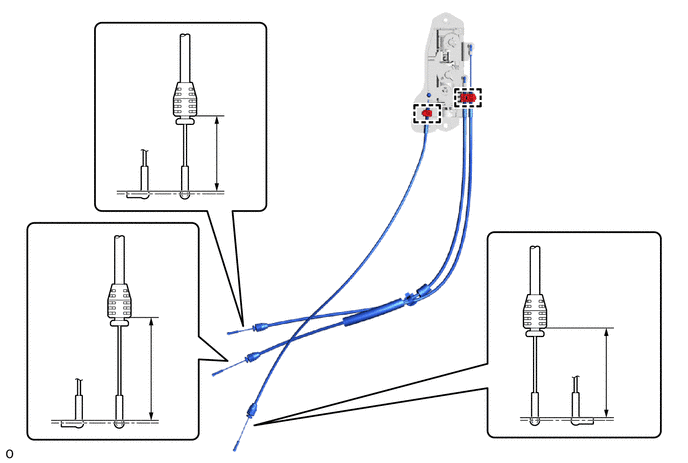

Straighten each cable, position them as shown in the illustration and install them with each clamp.

3.781,2.052 4.208,2.052 false 4.354,2.583 4.698,2.583 false 4.896,1.75 5.24,1.75 false 5.135,2.479 5.448,2.677 0.313,0.198 10 false *a 3.594,1.958 3.906,2.156 0.313,0.198 10 false *a 1.073,0.292 1.385,0.49 0.313,0.198 10 false *c 5.292,1.656 5.604,1.854 0.313,0.198 10 false *c 0.354,2.396 0.667,2.594 0.313,0.198 10 false *b 4.177,2.49 4.49,2.688 0.313,0.198 10 false *b 6.375,3.823 6.688,4.021 0.313,0.198 10 false A 2.302,1.531 2.615,1.729 0.313,0.198 10 false C 1.635,3.781 1.948,3.979 0.313,0.198 10 false B

*a	Locking Cable (Orange)	*b	Close Cable (Purple)
*c	Open Cable (Blue)	-	-

Standard:

Area	Standard Dimension	Area	Standard Dimension
A	59.6 to 61.2 mm (2.346 to 2.409 in.)	B	57.7 to 59.3 mm (2.272 to 2.335 in.)
C	41.35 to 42.75 mm (1.628 to 1.683 in.)	-	-

0,0 0,0 false

Install in this Direction

Insert each cable into the service hole and install the slide door handle assembly RH with the 2 bolts.

Torque:

7.5 N*m (76 kgf*cm, 66 in.*lbf)

Attach the clamp.

1.552,2.51 1.729,2.688 0.177,0.177 10 true *a 1.542,0.281 1.729,0.458 0.188,0.177 10 true *b 2.521,1.198 2.698,1.375 0.177,0.177 10 true *c

*a	Locking Cable (Orange)
*b	Open Cable (Blue)
*c	Close Cable (Purple)
	Install in this Direction (1)
	Install in this Direction (2)

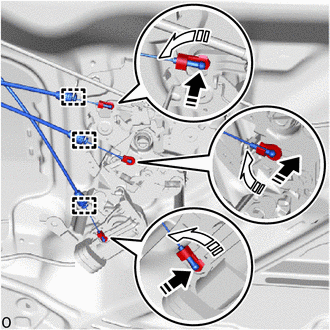

Attach the 3 snaps and connect the 3 cables to the slide door lock remote control assembly RH as shown in the illustration.

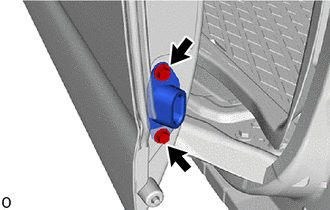

Install the slide door full open stop lock assembly RH with the 2 bolts.

Torque:

5.5 N*m (56 kgf*cm, 49 in.*lbf)

Attach the clamp.

0.073,0.042 0.385,0.25 0.313,0.208 12 true *A 0.052,2.26 0.396,2.5 0.344,0.24 12 true *B

*A	for Standard Roof
*B	for High Roof
	Butyl tape

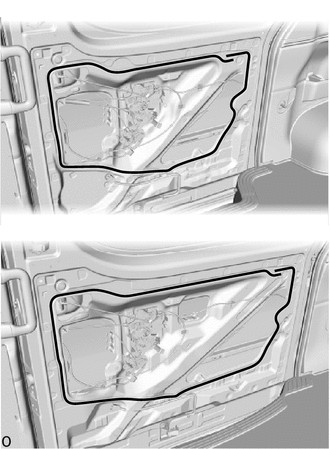

Apply new butyl tape to the slide door panel.

HINT:

·

Begin applying the butyl tape from the reference point shown in the illustration.

·

The butyl tape can be applied from either reference point.

0.885,1.271 1.104,1.021 true 0.667,1.313 0.906,1.51 0.24,0.198 12 true *A

*A	w/ Spot Light
	Install in this Direction

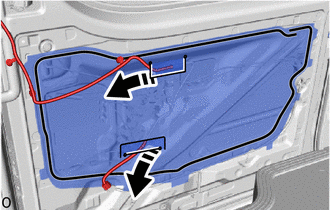

Pass the rear door wire RH through a new slide door service hole cover RH.

0.719,0.469 0.833,0.573 true 2.438,0.615 2.531,0.51 true 0.604,0.281 0.771,0.448 0.167,0.167 10 true *a 2.458,0.292 2.656,0.49 0.198,0.198 10 true *a

*a	Reference Point

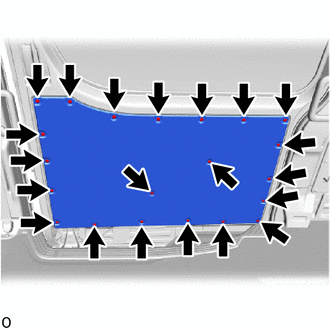

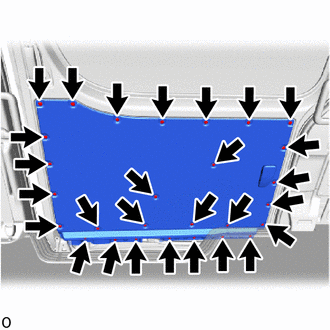

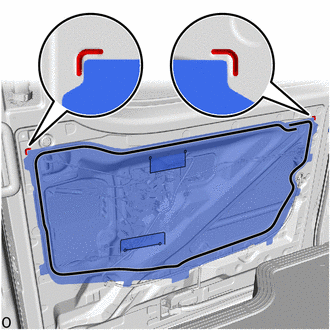

Align the top of the slide door service hole cover RH with the reference point on the slide door panel and install it.

NOTICE:

·

Securely install the slide door service hole cover RH to prevent wrinkles and air bubbles.

·

There should be no wrinkles or folds after installing the slide door service hole cover RH.

·

After installing the slide door service hole cover RH, check the seal quality.

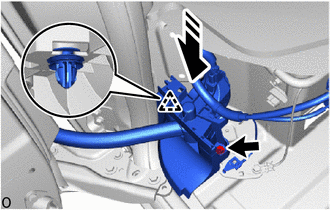

Attach the clamp and install the 2 cable clamps.

Connect the cable to the cable clamp.

Connect the connector.

w/ Spot Light:

for Standard Roof:

for High Roof:

for Standard Roof:

for High Roof:

for Standard Roof:

for High Roof:

0,0 0,0 false

Install in this Direction

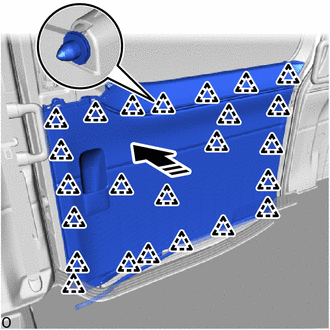

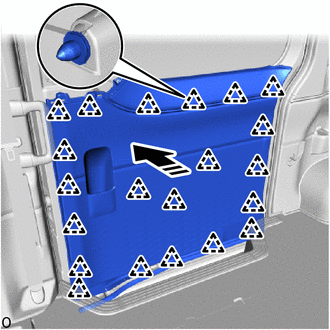

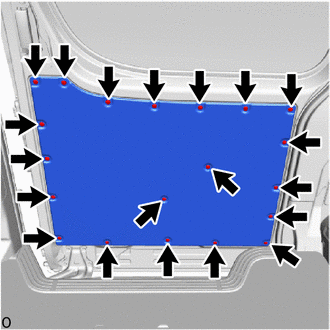

Attach the clip and install the slide door trim board assembly RH in the direction indicated by the arrow shown in the illustration.

w/ Power Slide Door:

0,0 0,0 false

Install in this Direction

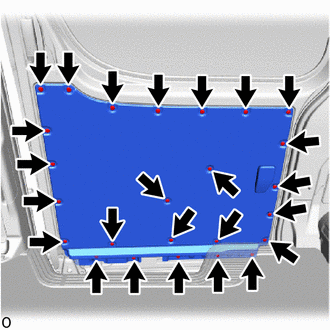

Attach the clip and install the slide door trim board assembly RH in the direction indicated by the arrow shown in the illustration.

w/ Power Slide Door:

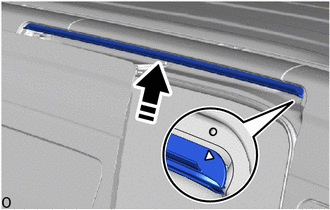

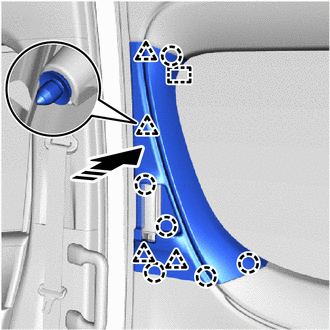

Attach the clip and install the slide door upper trim cover RH in the direction indicated by the arrow shown in the illustration.

0,0 0,0 false

Install in this Direction

-

-

Connect the connector.

0,0 0,0 false

Install in this Direction

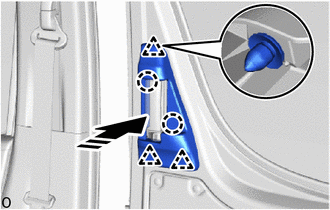

Attach the clip and claw to install the door lock control knob bezel RH in the direction indicated by the arrow shown in the illustration.

0,0 0,0 false

Install in this Direction

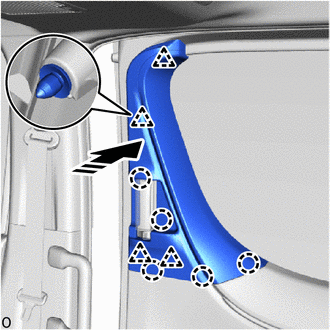

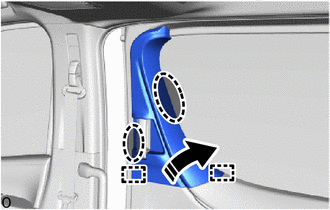

Attach the claw and clip and install the slide door window garnish RH in the direction indicated by the arrow shown in the illustration.

0,0 0,0 false

	Place Hand Here
	Install in this Direction

Place your hand at the position shown in the illustration and attach the guide while pull in the installation direction.

0,0 0,0 false

Install in this Direction

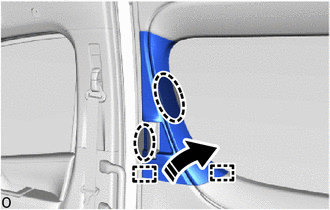

Attach the claw and clip and install the slide door window garnish RH in the direction indicated by the arrow shown in the illustration.

0,0 0,0 false

	Place Hand Here
	Install in this Direction

Place your hand at the position shown in the illustration and attach the guide while pull in the installation direction.
