PARK ASSIST / MONITORING  TOYOTA PARKING ASSIST-SENSOR SYSTEM  C1AE4  Front Right Sensor Malfunction


DESCRIPTION

The front corner ultrasonic sensor (FR sensor) is installed on the front bumper. The clearance warning ECU assembly detects obstacles based on signals received from the front corner ultrasonic sensor (FR sensor). If the front corner ultrasonic sensor (FR sensor) has an open circuit or other malfunction, it will not function normally.

DTC No. Detection Item DTC Detection Condition Trouble Area
C1AE4 Front Right Sensor Malfunction A malfunction of the front corner ultrasonic sensor (FR sensor).
·

Front corner ultrasonic sensor (FR sensor)

·

Harness or connector

·

Clearance warning ECU assembly

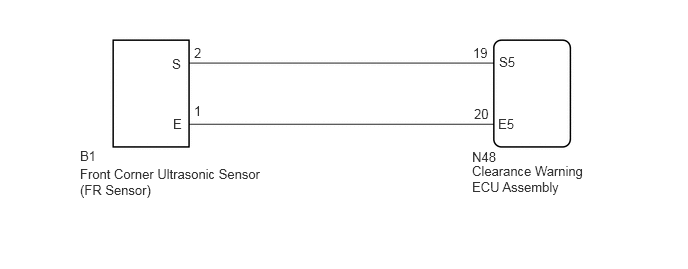

WIRING DIAGRAM

E329174E32
2.021,0.469 2.177,0.667 0.156,0.198 10 false 2 2.021,1.073 2.177,1.271 0.156,0.198 10 false 1 4.927,0.469 5.24,0.667 0.313,0.198 10 false 19 4.938,1.104 5.25,1.302 0.313,0.198 10 false 20 5.198,0.563 5.51,0.76 0.313,0.198 10 false S5 5.188,1.208 5.5,1.406 0.313,0.198 10 false E5 1.792,0.583 1.948,0.781 0.156,0.198 10 false S 1.802,1.208 1.958,1.406 0.156,0.198 10 false E 0.833,1.542 1.146,1.74 0.313,0.198 10 false B1 0.833,1.729 2.76,2.115 1.927,0.385 10 false Front Corner Ultrasonic Sensor (FR Sensor) 4.917,1.552 5.375,1.75 0.458,0.198 10 false N48 4.917,1.698 6.208,2.042 1.292,0.344 10 false Clearance Warning ECU Assembly

CAUTION / NOTICE / HINT

NOTICE:

If DTCs are output after repairs, turn the ignition switch to ON and the TOYOTA parking assist-sensor system on. Then clear the DTCs.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TOYOTA PARKING ASSIST-SENSOR SYSTEM>DTC CHECK / CLEAR


PROCEDURE

1.INSPECT FRONT CORNER ULTRASONIC SENSOR (FR SENSOR)
a.

Remove the front corner ultrasonic sensor (FR sensor).

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front)>REMOVAL


b.

Inspect the front corner ultrasonic sensor (FR sensor).

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front)>INSPECTION


Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (FRONT CORNER ULTRASONIC SENSOR [FR SENSOR] - CLEARANCE WARNING ECU ASSEMBLY)

NG

REPLACE FRONT CORNER ULTRASONIC SENSOR (FR SENSOR)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front)>REMOVAL


2.CHECK HARNESS AND CONNECTOR (FRONT CORNER ULTRASONIC SENSOR [FR SENSOR] - CLEARANCE WARNING ECU ASSEMBLY)
a.

Disconnect the B1 front corner ultrasonic sensor (FR sensor) connector.


b.

Disconnect the N48 clearance warning ECU assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
B1-2 (S) - N48-19 (S5) Always Below 1 Ω
B1-1 (E) - N48-20 (E5) Always Below 1 Ω
B1-2 (S) or N48-19 (S5) - Body ground Always 10 kΩ or higher
B1-1 (E) or N48-20 (E5) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE CLEARANCE WARNING ECU ASSEMBLY

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>CLEARANCE WARNING ECU>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
