PARK ASSIST / MONITORING ULTRASONIC SENSOR(for Front) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the ultrasonic sensor (for Front) removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement part or procedure	Necessary procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Front bumper assembly (Including removal and installation)	Front television camera view adjustment	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)
· Front television camera assembly, radiator grille assembly or front bumper assembly · Television camera assembly · Side television camera assembly LH or outer rear view mirror assembly LH · Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment (Adjustment of all cameras) HINT: Replacement or removal and installation of 2 or more parts	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)

PROCEDURE

Hide Display 1.REMOVE FRONT BUMPER ASSEMBLY

except Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (except Wagon)>REMOVAL201906,999999,_59,_079322,_0397093,RM100000001IMTD,

for Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Wagon)>REMOVAL201906,999999,_59,_079322,_0397092,RM100000001IMT8,

Hide Display 89341K 2.REMOVE FRONT CORNER ULTRASONIC SENSOR

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

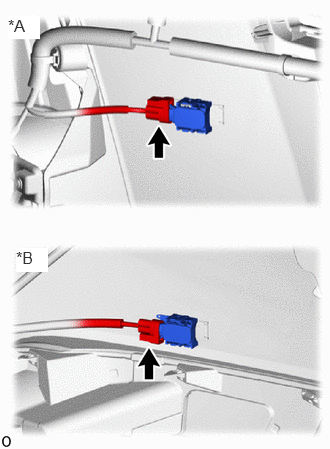

0.083,0.167 0.417,0.406 0.333,0.24 12 true *A 0.167,2.583 0.5,2.833 0.333,0.25 12 true *B

*A	except Wagon
*B	for Wagon

Disconnect the connector.

0,0 0,0 false

Remove in this Direction

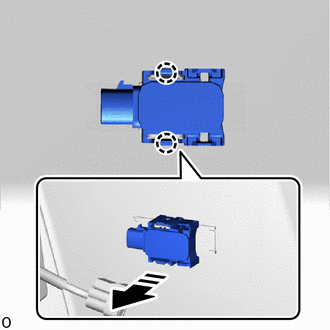

Detach the claw and remove the front corner ultrasonic sensor.

NOTICE:: Before removing the sensor, make sure to mark the sensor and front bumper cover so that each sensor can be returned to its original position.

Hide Display 89347B 3.REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER

HINT:: ·

Perform the following procedure only when replacement of a front corner ultrasonic sensor retainer is necessary.

·

When removing the front corner ultrasonic sensor retainer, if the double-sided tape is difficult to remove, heat the adhesive of the front corner ultrasonic sensor retainer and front bumper cover using a heat light.

Heat the front bumper cover and front corner ultrasonic sensor retainer using a heat light.

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

Standard:

Item	Temperature
Front Bumper Cover	40 to 60°C (104 to 140°F)
Front Corner Ultrasonic Sensor Retainer	40 to 60°C (104 to 140°F)

Remove the 2 front corner ultrasonic sensor retainers.

0.104,0.083 0.417,0.333 0.313,0.25 12 false *A 0.104,3.917 0.417,4.167 0.313,0.25 12 false *B

except Wagon

for Wagon
