RM35X0E _58 Vehicle Interior _078336 DOOR LOCK _0379905 WIRELESS DOOR LOCK CONTROL SYSTEM(w/o Entry and Start System) J

DOOR LOCK WIRELESS DOOR LOCK CONTROL SYSTEM(w/o Entry and Start System) Only Wireless Control Function is Inoperative

DESCRIPTION

The door control receiver receives signals from the door control transmitter module set sub-assembly and sends these signals to the main body ECU (multiplex network body ECU). The main body ECU (multiplex network body ECU) then controls all doors by sending lock/unlock signals to each door.

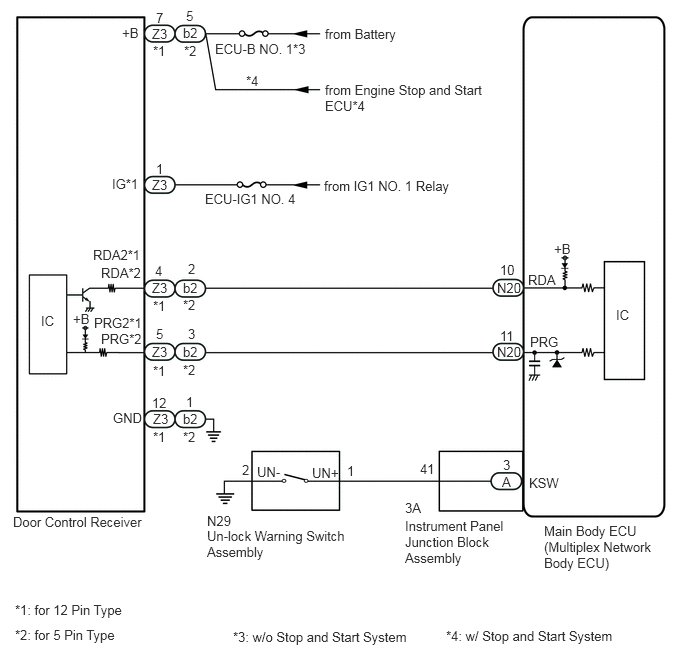

WIRING DIAGRAM

3.385,0.271 5.219,0.469 1.833,0.198 10 false from Battery 0.969,2.573 1.594,2.771 0.625,0.198 10 false RDA2*1 1.594,3.104 2.344,3.448 0.75,0.344 10 false *1 1.625,3.396 2.406,3.781 0.781,0.385 10 false 5 0.427,3.26 0.74,3.458 0.313,0.198 10 false IC 1.177,4.271 1.635,4.469 0.458,0.198 10 false GND 1.583,4.115 2.323,4.448 0.74,0.333 10 false 12 3.615,4.823 3.771,5.021 0.156,0.198 10 false 1 2.521,4.813 2.677,5.01 0.156,0.198 10 false 2 4.375,4.802 4.688,5 0.313,0.198 10 false 41 5.24,4.76 5.396,4.958 0.156,0.198 10 false 3 2.156,5.344 2.615,5.542 0.458,0.198 10 false N29 2.156,5.5 3.719,6.031 1.563,0.531 10 false Un-lock Warning Switch Assembly 4.219,5.208 4.531,5.406 0.313,0.198 10 false 3A 4.219,5.396 5.365,6.271 1.146,0.875 10 false Instrument Panel Junction Block Assembly 5.667,5.448 6.969,6.313 1.302,0.865 10 false Main Body ECU (Multiplex Network Body ECU) 5.229,4.938 5.542,5.135 0.313,0.198 10 false A 5.51,4.948 5.969,5.146 0.458,0.198 10 false KSW 5.521,3.479 5.979,3.677 0.458,0.198 10 false PRG 5.208,3.417 5.521,3.615 0.313,0.198 10 false 11 5.208,2.729 5.521,2.927 0.313,0.198 10 false 10 5.5,2.833 5.958,3.031 0.458,0.198 10 false RDA 5.771,2.51 6.083,2.708 0.313,0.198 10 false +B 6.417,3.198 6.729,3.396 0.313,0.198 10 false IC 0.135,5.354 2.021,5.646 1.885,0.292 10 false Door Control Receiver 0.156,6.271 2.042,6.563 1.885,0.292 10 false *1: for 12 Pin Type 0.156,6.531 2.042,6.823 1.885,0.292 10 false *2: for 5 Pin Type 2.135,1.99 4.125,2.188 1.99,0.198 10 false ECU-IG1 NO. 4 3.375,1.854 5.365,2.052 1.99,0.198 10 false from IG1 NO. 1 Relay 1.167,1.833 1.708,2.021 0.542,0.188 10 false IG*1 1.583,1.844 2.229,2.104 0.646,0.26 10 false Z3 1.583,2.917 2.229,3.177 0.646,0.26 10 false Z3 1.583,3.583 2.229,3.844 0.646,0.26 10 false Z3 1.594,4.281 2.24,4.542 0.646,0.26 10 false Z3 1.906,4.281 2.552,4.542 0.646,0.26 10 false b2 1.906,3.583 2.552,3.844 0.646,0.26 10 false b2 1.906,2.917 2.552,3.177 0.646,0.26 10 false b2 1.906,0.26 2.552,0.521 0.646,0.26 10 false b2 1.594,3.781 2.344,4.125 0.75,0.344 10 false *1 1.594,4.469 2.344,4.813 0.75,0.344 10 false *1 1.906,3.771 2.656,4.115 0.75,0.344 10 false *2 1.906,4.469 2.656,4.813 0.75,0.344 10 false *2 1.906,3.094 2.656,3.438 0.75,0.344 10 false *2 1.917,0.448 2.667,0.792 0.75,0.344 10 false *2 1.938,4.104 2.677,4.438 0.74,0.333 10 false 1 1.958,3.396 2.74,3.781 0.781,0.385 10 false 3 1.625,1.677 2.271,1.938 0.646,0.26 10 false 1 1.938,0.083 2.719,0.469 0.781,0.385 10 false 5 1.615,2.74 2.396,3.125 0.781,0.385 10 false 4 1.958,2.719 2.74,3.104 0.781,0.385 10 false 2 2.427,6.552 4.313,6.844 1.885,0.292 10 false *3: w/o Stop and Start System 4.646,6.542 7.01,6.75 2.365,0.208 10 false *4: w/ Stop and Start System 2.24,0.427 4.229,0.625 1.99,0.198 10 false ECU-B NO. 1*3 2.677,4.833 3.021,5.073 0.344,0.24 10 false UN- 3.25,4.844 3.938,5.073 0.688,0.229 10 false UN+ 1.271,0.26 1.708,0.458 0.438,0.198 10 false +B 3.385,0.854 5.156,1.26 1.771,0.406 10 false from Engine Stop and Start ECU*4 1.583,0.271 2.229,0.531 0.646,0.26 10 false Z3 1.625,0.104 2.271,0.365 0.646,0.26 10 false 7 1.594,0.448 2.344,0.792 0.75,0.344 10 false *1 0.76,3.24 1.073,3.438 0.313,0.198 10 false +B 5.177,2.917 5.635,3.115 0.458,0.198 10 false N20 5.177,3.583 5.635,3.781 0.458,0.198 10 false N20 1.052,2.76 1.51,2.958 0.458,0.198 10 false RDA*2 1.052,3.448 1.51,3.646 0.458,0.198 10 false PRG*2 0.979,3.281 1.719,3.49 0.74,0.208 10 false PRG2*1 2.563,0.76 3.313,1.104 0.75,0.344 10 false *4

CAUTION / NOTICE / HINT

NOTICE:: ·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

When replacing or inspecting the door control receiver and wire harness, do not change the position or length of the wire harness. If the wire harness is too close to the door control receiver, wireless function performance may be affected.

·

When replacing the door control receiver, read the transmitter IDs (tire pressure warning system) stored in the old ECU using the GTS and write them down before removal.*

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>REGISTRATION201902,201906,_53,_078885,_0382739,RM100000001G6WE,201906,999999,_53,_078885,_0382739,RM100000001IHE1,

*: for 12 Pin Type

·

If the door control receiver has been replaced, it is necessary to perform initialization (Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>INITIALIZATION201902,201906,_53,_078885,_0382739,RM100000001G6WF,201906,999999,_53,_078885,_0382739,RM100000001IHE2,) after registration (Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>REGISTRATION201902,201906,_53,_078885,_0382739,RM100000001G6WE,201906,999999,_53,_078885,_0382739,RM100000001IHE1,) of the transmitter IDs to the door control receiver.*

*: for 12 Pin Type

PROCEDURE

1.CHECK POWER DOOR LOCK OPERATION

Check the power door lock operation.

Click hereVehicle Interior>DOOR LOCK>POWER DOOR LOCK CONTROL SYSTEM>OPERATION CHECK201902,201906,_58,_078336,_0379904,RM100000001GND6,201906,999999,_58,_078336,_0379904,RM100000001IPEI,

OK:: Power door lock control system operates properly.

Result:

Proceed to
OK
NG

2.CHECK KEY REMINDER WARNING SYSTEM

GO TO POWER DOOR LOCK CONTROL SYSTEM

Click hereVehicle Interior>DOOR LOCK>POWER DOOR LOCK CONTROL SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING201902,201906,_58,_078336,_0379904,RM100000001GND4,201906,999999,_58,_078336,_0379904,RM100000001IPEG,

2.CHECK KEY REMINDER WARNING SYSTEM

Check that the key reminder warning buzzer operates properly.

Click hereVehicle Interior>DOOR LOCK>KEY REMINDER WARNING SYSTEM>OPERATION CHECK201902,999999,_58,_078336,_0379906,RM100000001GNE3,

OK:: Key reminder warning buzzer operates properly.

Result:

Proceed to
OK
NG

3.CHECK DOOR CONTROL TRANSMITTER MODULE SET SUB-ASSEMBLY

GO TO KEY REMINDER WARNING SYSTEM

Click hereVehicle Interior>DOOR LOCK>KEY REMINDER WARNING SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_58,_078336,_0379906,RM100000001GNE2,

3.CHECK DOOR CONTROL TRANSMITTER MODULE SET SUB-ASSEMBLY

When a known good registered door control transmitter module set sub-assembly is used, check that the wireless functions operate properly.

Result:

Result	Proceed to
Wireless door lock/unlock function operates properly with a known good door control transmitter module set sub-assembly	A
Wireless door lock/unlock function does not operate	B

4.CHECK TRANSMITTER BATTERY (VOLTAGE)

5.CHECK WAVE ENVIRONMENT

4.CHECK TRANSMITTER BATTERY (VOLTAGE)

Inspect the transmitter battery capacity.

Click hereVehicle Interior>DOOR LOCK>DOOR CONTROL TRANSMITTER>INSPECTION201902,999999,_58,_078336,_0387015,RM100000001GURL,

Result:

Proceed to
OK
NG

REPLACE DOOR CONTROL TRANSMITTER MODULE SET SUB-ASSEMBLY

REPLACE TRANSMITTER BATTERY

Click hereVehicle Interior>DOOR LOCK>TRANSMITTER BATTERY>REMOVAL201902,999999,_58,_078336,_0387014,RM100000001GURH,

5.CHECK WAVE ENVIRONMENT

Bring the door control transmitter module set sub-assembly near the door control receiver, and perform a wireless operation check.

HINT:: ·

When the door control transmitter module set assembly is brought near the door control receiver, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.

·

If the inspection result is that the problem only occurs in certain locations or times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

OK:: Wireless functions operate properly.

Result:

Proceed to
OK
NG

END (AFFECTED BY WAVE INTERFERENCE)

6.CHECK VEHICLE CONDITION

Check vehicle condition.

Result:

Result	Proceed to
for 12 Pin Type	A
for 5 Pin Type	B

7.CHECK HARNESS AND CONNECTOR (IG POWER SOURCE)

8.CHECK SELF-DIAGNOSTIC MODE

7.CHECK HARNESS AND CONNECTOR (IG POWER SOURCE)

1.427,0.083 1.823,0.344 0.396,0.26 1.229,1.229 0.667,1.448 true 0.146,0.115 0.458,0.313 0.313,0.198 10 false *a 0.417,1.385 0.729,1.583 0.313,0.198 10 false IG 1.552,0.135 2.01,0.333 0.458,0.198 10 false Z3

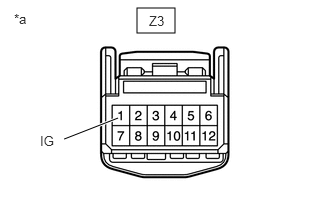

*a	Front view of wire harness connector (to Door Control Receiver)

Disconnect the door control receiver connector.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
Z3-1 (IG) - Body ground	Ignition switch ON	11 to 14 V
Z3-1 (IG) - Body ground	Ignition switch off	Below 1 V

Result:

Proceed to
OK
NG

8.CHECK SELF-DIAGNOSTIC MODE

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.CHECK SELF-DIAGNOSTIC MODE

Switch to self-diagnostic mode.

Click hereVehicle Interior>DOOR LOCK>WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Entry and Start System)>DIAGNOSIS SYSTEM201902,999999,_58,_078336,_0379905,RM100000001GNDU,

Check self-diagnostic mode.

Click hereVehicle Interior>DOOR LOCK>WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Entry and Start System)>DIAGNOSIS SYSTEM201902,999999,_58,_078336,_0379905,RM100000001GNDU,

Result:

Result	Proceed to
Normal pattern (interior light and wireless door lock buzzer* output pattern) is output	A
Unmatching recognition code is output	B
No diagnostic output	C

*: w/ Wireless Door Lock Buzzer Answer-back Function

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

for LHD: Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for LHD)>REMOVAL201902,201906,_57,_079061,_0383489,RM100000001GBCK,201906,202310,_57,_079061,_0383489,RM100000001IVKI,202310,999999,_57,_079061,_0383489,RM100000002EQ22,

for RHD: Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for RHD)>REMOVAL201902,201906,_57,_079061,_0383490,RM100000001GBCN,201906,202310,_57,_079061,_0383490,RM100000001IVRX,202310,999999,_57,_079061,_0383490,RM100000002EQ24,

9.CHECK REGISTER RECOGNITION CODE

13.CHECK DOOR CONTROL RECEIVER (RESPONSE)

9.CHECK REGISTER RECOGNITION CODE

Check that the system can be switched to rewrite mode or add mode, and that a recognition code can be registered.

Click hereVehicle Interior>DOOR LOCK>WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Entry and Start System)>REGISTRATION201902,999999,_58,_078336,_0379905,RM100000001GNDQ,

OK:: Recognition code can be registered.

Result:

Proceed to
OK
NG

END (GO TO OPERATION CHECK)

10.REPLACE DOOR CONTROL RECEIVER

Temporarily replace the door control receiver with a new or known good one.

Click hereVehicle Interior>DOOR LOCK>DOOR CONTROL RECEIVER (except Wagon)>REMOVAL201902,201906,_58,_078336,_0388965,RM100000001H4PC,201906,999999,_58,_078336,_0388965,RM100000001JH2K,

Result:

Proceed to
NEXT

11.REGISTER RECOGNITION CODE

Perform the Registration procedure.

Click hereVehicle Interior>DOOR LOCK>WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Entry and Start System)>REGISTRATION201902,999999,_58,_078336,_0379905,RM100000001GNDQ,

Result:

Proceed to
NEXT

12.CHECK DOOR CONTROL RECEIVER (OPERATION)

Check that the doors can be locked and unlocked by the door control transmitter module set sub-assembly lock and unlock switches.

OK:: Doors can be locked and unlocked by the door control transmitter module set sub-assembly.

Result:

Proceed to
OK
NG

END (DOOR CONTROL RECEIVER WAS DEFECTIVE)

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

13.CHECK DOOR CONTROL RECEIVER (RESPONSE)

Prepare a door control transmitter module set sub-assembly from another vehicle.

Press and hold a door control transmitter module set sub-assembly switch.

Check that an unmatching recognition code is output.

OK:: Unmatching recognition code is output.

Result:

Proceed to
OK
NG

REPLACE DOOR CONTROL TRANSMITTER MODULE SET SUB-ASSEMBLY

14.CHECK HARNESS AND CONNECTOR (POWER SOURCE AND BODY GROUND)

*1: for 12 Pin Type

*2: for 5 Pin Type

*3: w/o Stop and Start System

*4: w/ Stop and Start System

1.531,0.458 1.906,0.677 0.375,0.219 1.521,2.771 1.896,2.99 0.375,0.219 2.365,1.896 2.031,1.896 2.031,1.896 2.031,1.479 false 1,1.875 1.406,1.875 1.406,1.875 1.406,1.469 false 2.083,3.74 2.417,3.74 false 1.021,3.75 1.354,3.75 false 0.667,0.552 0.979,0.75 0.313,0.198 10 false *a 1.625,2.802 2.083,3 0.458,0.198 10 false b2 1.635,0.49 2.094,0.688 0.458,0.198 10 false Z3 0.781,2.885 1.094,3.083 0.313,0.198 10 false *a 0.333,0.281 0.729,0.573 0.396,0.292 10 false *A 0.375,2.573 0.688,2.771 0.313,0.198 10 false *B 0.771,1.792 1.094,1.99 0.323,0.198 10 false +B 2.417,1.813 2.875,2.01 0.458,0.198 10 false GND 0.698,3.667 1.156,3.865 0.458,0.198 10 false GND 2.479,3.667 2.938,3.865 0.458,0.198 10 false +B

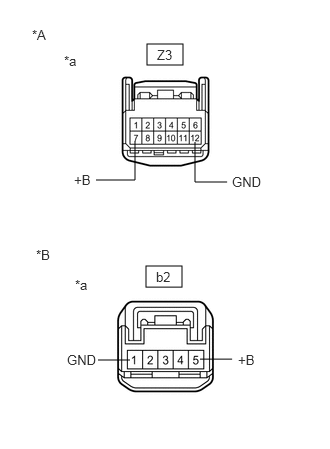

*A	for 12 Pin Type
*B	for 5 Pin Type
*a	Front view of wire harness connector (to Door Control Receiver)

Disconnect the door control receiver connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Z3-12 (GND) - Body ground*1	Always	Below 1 Ω
b2-1 (GND) - Body ground*2	Always	Below 1 Ω

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
Z3-7 (+B) - Body ground*1	Always	11 to 14 V
b2-5 (+B) - Body ground*2	Always	11 to 14 V3 10.5 to 16 V4

Result:

Result	Proceed to
OK	A
NG (+B terminal) (w/ Stop and Start System)	B
NG (+B terminal) (w/o Stop and Start System)	C
NG (Other terminal)	C

15.CHECK HARNESS AND CONNECTOR (MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) - DOOR CONTROL RECEIVER)

GO TO STOP AND START SYSTEM

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>Backup Boost Converter Circuit201902,201906,_51,_078825,_0382334,RM100000001GBR8,201906,999999,_51,_078825,_0382334,RM100000001IKMU,

REPAIR OR REPLACE HARNESS OR CONNECTOR

15.CHECK HARNESS AND CONNECTOR (MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) - DOOR CONTROL RECEIVER)

*1: for 12 Pin Type

*2: for 5 Pin Type

Disconnect the N20 main body ECU (multiplex network body ECU) connector.

Disconnect the Z3*1 or b2*2 door control receiver connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Z3-4 (RDA2) - N20-10 (RDA)*1	Always	Below 1 Ω
b2-2 (RDA) - N20-10 (RDA)*2	Always	Below 1 Ω
Z3-5 (PRG2) - N20-11 (PRG)*1	Always	Below 1 Ω
b2-3 (PRG) - N20-11 (PRG)*2	Always	Below 1 Ω
Z3-4 (RDA2) or N20-10 (RDA) - Other terminals and body ground*1	Always	10 kΩ or higher
b2-2 (RDA) or N20-10 (RDA) - Other terminals and body ground*2	Always	10 kΩ or higher
Z3-5 (PRG2) or N20-11 (PRG) - Other terminals and body ground*1	Always	10 kΩ or higher
b2-3 (PRG) or N20-11 (PRG) - Other terminals and body ground*2	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

16.CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

REPAIR OR REPLACE HARNESS OR CONNECTOR

16.CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Disconnect the door control receiver connector.

1.458,0.323 1.865,0.594 0.406,0.271 1.49,2.563 1.896,2.833 0.406,0.271 1.802,4.406 1.563,4.406 1.563,4.406 1.563,3.771 false 1.781,1.271 1.781,1.115 1.781,1.115 2.604,1.115 false 0.635,0.552 0.948,0.75 0.313,0.198 10 false *a 0.24,0.177 0.615,0.448 0.375,0.271 10 false *A 0.365,2.448 0.677,2.646 0.313,0.198 10 false *B 0.646,2.76 0.958,2.958 0.313,0.198 10 false *a 1.615,2.615 1.99,2.813 0.375,0.198 10 false b2 1.583,0.385 2.094,0.552 0.51,0.167 10 false Z3 2.635,1.01 3.01,1.219 0.375,0.208 10 false RDA2 1.844,4.333 2.219,4.542 0.375,0.208 10 false RDA

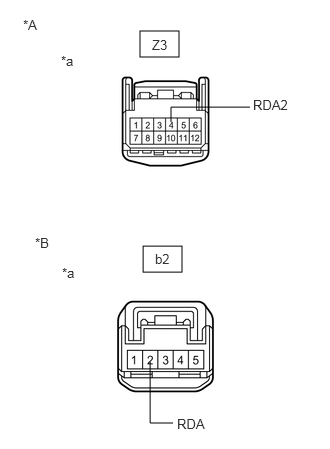

*A	for 12 Pin Type
*B	for 5 Pin Type
*a	Front view of wire harness connector (to Door Control Receiver)

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
1: for 12 Pin Type 2: for 5 Pin Type
Z3-4 (RDA2) - body ground*1	Always	11 to 14 V
b2-2 (RDA) - body ground*2	Always	11 to 14 V

Result:

Proceed to
OK
NG

17.CHECK DOOR CONTROL RECEIVER (OUTPUT)

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

17.CHECK DOOR CONTROL RECEIVER (OUTPUT)

1.458,0.323 1.865,0.594 0.406,0.271 1.458,2.563 1.865,2.833 0.406,0.271 2.104,4.052 1.865,4.052 1.865,4.052 1.865,3.417 false 1.635,1.188 1.635,1.031 1.635,1.031 2.458,1.031 false 0.635,0.552 0.948,0.75 0.313,0.198 10 false *a 0.24,0.177 0.615,0.448 0.375,0.271 10 false *A 0.365,2.448 0.677,2.646 0.313,0.198 10 false *B 0.646,2.76 0.958,2.958 0.313,0.198 10 false *a 1.583,2.615 1.958,2.813 0.375,0.198 10 false b2 1.583,0.375 2.094,0.542 0.51,0.167 10 false Z3 2.5,0.958 2.875,1.167 0.375,0.208 10 false RDA2 2.156,3.969 2.531,4.177 0.375,0.208 10 false RDA

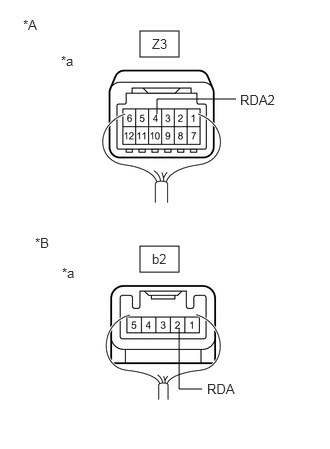

*A	for 12 Pin Type
*B	for 5 Pin Type
*a	Component with harness connected (Door Control Receiver)

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
1: for 12 Pin Type 2: for 5 Pin Type
Z3-4 (RDA2) - Body ground*1	Procedure: 1. Remove key from ignition key cylinder 2. Close all doors 3. Press lock or unlock switch of door control transmitter module set sub-assembly	11 to 14 V → pulse generation
b2-2 (RDA) - Body ground*2		11 to 14 V → pulse generation

Result:

Proceed to
OK
NG

18.CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) (OUTPUT)

REPLACE DOOR CONTROL RECEIVER

Click hereVehicle Interior>DOOR LOCK>DOOR CONTROL RECEIVER (except Wagon)>REMOVAL201902,201906,_58,_078336,_0388965,RM100000001H4PC,201906,999999,_58,_078336,_0388965,RM100000001JH2K,

18.CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) (OUTPUT)

Disconnect the main body ECU (multiplex network body ECU) connector.

1.458,0.094 1.906,0.385 0.448,0.292 2.885,0.552 2.677,0.552 2.677,0.552 2.094,1.167 true 1.563,0.167 2.021,0.365 0.458,0.198 10 false N20 2.958,0.479 3.417,0.677 0.458,0.198 10 false PRG 0.135,0.135 0.448,0.292 0.313,0.156 10 false *a

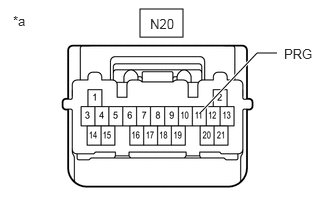

*a	Front view of wire harness connector (to Main Body ECU (Multiplex Network Body ECU))

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
N20-11 (PRG) - Body ground	Always	11 to 14 V

Result:

Proceed to
OK
NG

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

REPLACE DOOR CONTROL RECEIVER

Click hereVehicle Interior>DOOR LOCK>DOOR CONTROL RECEIVER (except Wagon)>REMOVAL201902,201906,_58,_078336,_0388965,RM100000001H4PC,201906,999999,_58,_078336,_0388965,RM100000001JH2K,
