AUDIO / VIDEO AUDIO AND VISUAL SYSTEM(for Radio and Display Type) Illumination Circuit

DESCRIPTION

Power is supplied to the radio and display receiver assembly and steering pad switch assembly illumination when the light control switch is in the tail or head position.

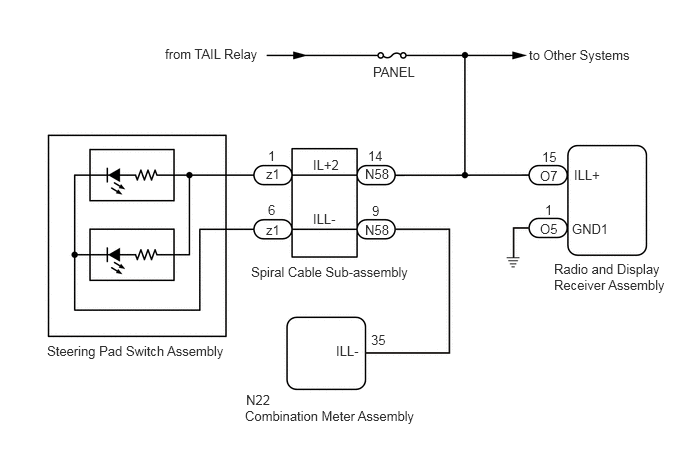

WIRING DIAGRAM

1.719,0.479 4.01,0.677 2.292,0.198 10 false from TAIL Relay 3.885,0.667 4.656,0.865 0.771,0.198 10 false PANEL 5.979,1.74 6.438,1.938 0.458,0.198 10 false ILL+ 3.26,2.198 3.719,2.396 0.458,0.198 10 false ILL- 3.26,1.635 3.719,1.833 0.458,0.198 10 false IL+2 0.49,3.573 4.771,3.771 4.281,0.198 10 false Steering Pad Switch Assembly 2.771,1.729 3.083,1.927 0.313,0.198 10 false z1 3.802,1.729 4.115,1.927 0.313,0.198 10 false N58 3.833,1.542 4.146,1.74 0.313,0.198 10 false 14 3.875,2.115 4.188,2.313 0.313,0.198 10 false 9 2.792,1.542 3.104,1.74 0.313,0.198 10 false 1 2.792,2.104 3.104,2.302 0.313,0.198 10 false 6 2.615,2.75 4.563,3.021 1.948,0.271 10 false Spiral Cable Sub-assembly 5.771,2.719 6.99,3.125 1.219,0.406 10 false Radio and Display Receiver Assembly 5.625,1.75 6.844,2.156 1.219,0.406 10 false O7 5.958,2.302 6.448,2.563 0.49,0.26 10 false GND1 5.646,1.552 5.958,1.75 0.313,0.198 10 false 15 5.677,2.104 5.99,2.302 0.313,0.198 10 false 1 5.625,2.302 6.844,2.708 1.219,0.406 10 false O5 2.771,2.313 3.083,2.51 0.313,0.198 10 false z1 3.802,2.313 4.115,2.51 0.313,0.198 10 false N58 2.552,4.25 4.5,4.521 1.948,0.271 10 false Combination Meter Assembly 2.563,4.083 4.51,4.354 1.948,0.271 10 false N22 3.865,3.458 4.177,3.656 0.313,0.198 10 false 35 3.5,3.573 3.958,3.771 0.458,0.198 10 false ILL- 5.51,0.49 6.833,0.76 1.323,0.271 10 false to Other Systems

CAUTION / NOTICE / HINT

NOTICE:: ·

The vehicle is equipped with a supplemental restraint system (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution for supplemental restraint system.

for Type A: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

for Type B: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

·

Inspect the fuse for circuits related to this system before performing the following procedure.

·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

PROCEDURE

1.CHECK ILLUMINATION

Check if the illumination for the radio and display receiver assembly, steering pad switch assembly, heater control switch or others (hazard switch, transmission control switch, etc.) comes on when the light control switch is turned to the head or tail position.

Result:

Result	Proceed to
Illumination comes on for all components except steering pad switch assembly.	A
Illumination comes on for all components except radio and display receiver assembly.	B
No illumination comes on (radio and display receiver assembly, hazard switch, heater control switch, etc.).	C

2.CHECK HARNESS AND CONNECTOR (ILLUMINATION SIGNAL)

6.CHECK HARNESS AND CONNECTOR (ILLUMINATION SIGNAL)

GO TO LIGHTING SYSTEM

Click hereVehicle Interior>LIGHTING (INT)>LIGHTING SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING201902,201906,_58,_078381,_0380033,RM100000001FZ6N,201906,999999,_58,_078381,_0380033,RM100000001IFRB,

2.CHECK HARNESS AND CONNECTOR (ILLUMINATION SIGNAL)

1.5,0.25 1.875,0.479 0.375,0.229 2.24,1.5 2.313,1.917 2.313,1.917 2.479,1.917 true 2.531,1.833 2.917,2.021 0.385,0.188 10 false IL+2 0.083,0.104 0.396,0.302 0.313,0.198 10 false *a 1.573,0.281 1.885,0.479 0.313,0.198 10 false N58

*a	Front view of wire harness connector (to Spiral Cable Sub-assembly)

Disconnect the spiral cable sub-assembly connector.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
N58-14 (IL+2) - Body ground	Light control switch in tail or head position	11 to 14 V

Result:

Proceed to
OK
NG

3.INSPECT STEERING PAD SWITCH ASSEMBLY

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT STEERING PAD SWITCH ASSEMBLY

Remove the steering pad switch assembly.

Click hereSteering>STEERING COLUMN>STEERING PAD SWITCH>REMOVAL201902,201906,_55,_079313,_0388801,RM100000001H42O,201906,999999,_55,_079313,_0388801,RM100000001J04D,

Inspect the steering pad switch assembly.

Click hereSteering>STEERING COLUMN>STEERING PAD SWITCH>INSPECTION201902,201906,_55,_079313,_0388801,RM100000001H42P,201906,999999,_55,_079313,_0388801,RM100000001IGWQ,

Result:

Proceed to
OK
NG

4.INSPECT SPIRAL CABLE SUB-ASSEMBLY

REPLACE STEERING PAD SWITCH ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING PAD SWITCH>REMOVAL201902,201906,_55,_079313,_0388801,RM100000001H42O,201906,999999,_55,_079313,_0388801,RM100000001J04D,

4.INSPECT SPIRAL CABLE SUB-ASSEMBLY

Remove the spiral cable sub-assembly.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>REMOVAL201902,201906,_58,_079257,_0384936,RM100000001GJ81,201906,999999,_58,_079257,_0384936,RM100000001II9V,

Inspect the spiral cable sub-assembly.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>INSPECTION201902,999999,_58,_079257,_0384936,RM100000001GJ83,

Result:

Proceed to
OK
NG

5.CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - COMBINATION METER ASSEMBLY)

REPLACE SPIRAL CABLE SUB-ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>REMOVAL201902,201906,_58,_079257,_0384936,RM100000001GJ81,201906,999999,_58,_079257,_0384936,RM100000001II9V,

5.CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - COMBINATION METER ASSEMBLY)

Disconnect the N58 spiral cable sub-assembly connector.

Disconnect the N22 combination meter assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
N58-9 (ILL-) - N22-35 (ILL-)	Always	Below 1 Ω
N58-9 (ILL-) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL201902,201906,_58,_078337,_0380006,RM100000001FR91,201906,999999,_58,_078337,_0380006,RM100000001IHHE,

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK HARNESS AND CONNECTOR (ILLUMINATION SIGNAL)

0.708,0.938 1.083,1.24 0.375,0.302 2.281,0.948 2.656,1.25 0.375,0.302 1.927,1.813 1.719,0.635 1.719,0.635 1.552,0.635 true 1.51,2.448 1.344,2.448 1.344,2.448 1.208,1.927 true 2.406,1.021 2.865,1.219 0.458,0.198 10 false O5 0.813,1.01 1.271,1.208 0.458,0.198 10 false O7 1.146,0.552 1.594,0.802 0.448,0.25 10 false GND1 1.573,2.375 2.021,2.625 0.448,0.25 10 false ILL+ 0.156,0.146 0.604,0.396 0.448,0.25 10 false *a

*a	Front view of wire harness connector (to Radio and Display Receiver Assembly)

Disconnect the radio and display receiver assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
O5-1 (GND1) - Body ground	Always	Below 1 Ω

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
O7-15 (ILL+) - Body ground	Light control switch in tail or head position	11 to 14 V

Result:

Proceed to
OK
NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM (for Radio and Display Type)>PROBLEM SYMPTOMS TABLE201902,201906,_56,_078377,_0385463,RM100000001GM8Y,201906,202107,_56,_078377,_0385463,RM100000001IHXJ,202107,999999,_56,_078377,_0385463,RM100000001XH8B,

REPAIR OR REPLACE HARNESS OR CONNECTOR
