RM35X0E _59 Vehicle Exterior _079320 WIPER / WASHER _0385301 WIPER AND WASHER SYSTEM J

WIPER / WASHER  WIPER AND WASHER SYSTEM  Front Wiper Motor Circuit


DESCRIPTION

The windshield wiper relay assembly controls the windshield wiper motor assembly through this circuit.

WIRING DIAGRAM

for LHD:


E415847E03
1.583,0.969 1.896,1.167 0.313,0.198 10 false +2 1.469,1.521 1.927,1.719 0.458,0.198 10 false +SM 1.594,2.042 1.906,2.24 0.313,0.198 10 false +1 1.917,0.969 2.229,1.167 0.313,0.198 10 false N67 1.906,1.51 2.219,1.708 0.313,0.198 10 false N68 1.917,2.031 2.229,2.229 0.313,0.198 10 false N67 1.99,0.75 2.146,0.948 0.156,0.198 10 false 4 1.99,1.292 2.146,1.49 0.156,0.198 10 false 6 2.01,1.823 2.167,2.021 0.156,0.198 10 false 2 3.354,0.844 3.51,1.042 0.156,0.198 10 false 4 3.354,1.375 3.51,1.573 0.156,0.198 10 false 3 3.354,1.917 3.51,2.115 0.156,0.198 10 false 1 0.781,2.802 1.896,3.177 1.115,0.375 10 false Windshield Wiper Relay Assembly 3.583,0.844 3.896,1.042 0.313,0.198 10 false +2 3.573,1.385 3.885,1.583 0.313,0.198 10 false +S 3.573,1.917 3.885,2.115 0.313,0.198 10 false +1 3.75,2.813 4.208,3.01 0.458,0.198 10 false A18 3.75,3 5.927,3.25 2.177,0.25 10 false Windshield Wiper Motor Assembly 6.01,1.385 6.167,1.583 0.156,0.198 10 false E 6.25,1.385 6.406,1.583 0.156,0.198 10 false 5

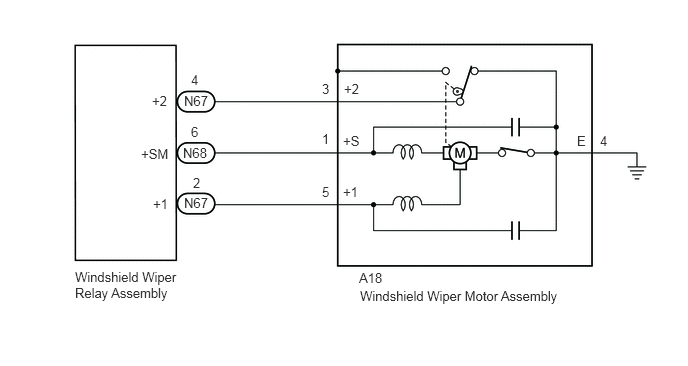

for RHD:


E415847E04
1.583,0.969 1.896,1.167 0.313,0.198 10 false +2 1.469,1.521 1.927,1.719 0.458,0.198 10 false +SM 1.594,2.042 1.906,2.24 0.313,0.198 10 false +1 1.917,0.969 2.229,1.167 0.313,0.198 10 false N67 1.906,1.51 2.219,1.708 0.313,0.198 10 false N68 1.917,2.031 2.229,2.229 0.313,0.198 10 false N67 1.99,0.75 2.146,0.948 0.156,0.198 10 false 4 1.99,1.292 2.146,1.49 0.156,0.198 10 false 6 2.01,1.823 2.167,2.021 0.156,0.198 10 false 2 3.354,1.917 3.51,2.115 0.156,0.198 10 false 5 3.354,0.844 3.51,1.042 0.156,0.198 10 false 3 3.354,1.365 3.51,1.563 0.156,0.198 10 false 1 0.781,2.802 1.896,3.177 1.115,0.375 10 false Windshield Wiper Relay Assembly 3.583,0.844 3.896,1.042 0.313,0.198 10 false +2 3.573,1.385 3.885,1.583 0.313,0.198 10 false +S 3.573,1.917 3.885,2.115 0.313,0.198 10 false +1 3.74,2.813 4.198,3.01 0.458,0.198 10 false A18 3.75,3 5.927,3.25 2.177,0.25 10 false Windshield Wiper Motor Assembly 6.01,1.385 6.167,1.583 0.156,0.198 10 false E 6.25,1.385 6.406,1.583 0.156,0.198 10 false 4


PROCEDURE

1.PERFORM ACTIVE TEST USING GTS (FRONT WIPER OPERATION)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter following menus: Body Electrical / Main Body / Active Test.


e.

Perform the Active Test according to the display on the GTS.

Body Electrical > Main Body > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Front Wiper Lo Operation Function to operate the windshield wiper motor assembly in LO OFF or ON -
Front Wiper Hi Operation Function to operate the windshield wiper motor assembly in HI OFF or ON -
Body Electrical > Main Body > Active Test
Tester Display
Front Wiper Lo Operation
50004 123 92
Body Electrical > Main Body > Active Test
Tester Display
Front Wiper Hi Operation
50004 123 93
OK:

Windshield wiper motor assembly operates normally.



Result:
Proceed to
OK
NG



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereVehicle Exterior>WIPER / WASHER>WIPER AND WASHER SYSTEM>PROBLEM SYMPTOMS TABLE


NG

2.INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY
2.INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY
a.

Remove the windshield wiper motor assembly.

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>REMOVAL


b.

Inspect the windshield wiper motor assembly.

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>INSPECTION


Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - WINDSHIELD WIPER MOTOR ASSEMBLY)

NG

REPLACE WINDSHIELD WIPER MOTOR ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>REMOVAL


3.CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - WINDSHIELD WIPER MOTOR ASSEMBLY)
a.

Disconnect the N67 and N68 windshield wiper relay assembly connectors.


b.

Disconnect the A18 windshield wiper motor assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for LHD
Tester Connection Condition Specified Condition
N67-2 (+1) - A18-1 (+1) Always Below 1 Ω
N67-4 (+2) - A18-4 (+2) Always Below 1 Ω
N68-6 (+SM) - A18-3 (+S) Always Below 1 Ω
N67-2 (+1) or A18-1 (+1) - Body ground Always 10 kΩ or higher
N67-4 (+2) or A18-4 (+2) - Body ground Always 10 kΩ or higher
N68-6 (+SM) or A18-3 (+S) - Body ground Always 10 kΩ or higher


for RHD
Tester Connection Condition Specified Condition
N67-2 (+1) - A18-5 (+1) Always Below 1 Ω
N67-4 (+2) - A18-3 (+2) Always Below 1 Ω
N68-6 (+SM) - A18-1 (+S) Always Below 1 Ω
N67-2 (+1) or A18-5 (+1) - Body ground Always 10 kΩ or higher
N67-4 (+2) or A18-3 (+2) - Body ground Always 10 kΩ or higher
N68-6 (+SM) or A18-1 (+S) - Body ground Always 10 kΩ or higher


Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER MOTOR ASSEMBLY - BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER MOTOR ASSEMBLY - BODY GROUND)
a.

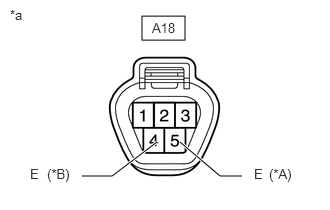

E410615C04
1.479,0.167 1.927,0.417 0.448,0.25 1.875,1.479 2.292,1.833 2.292,1.833 2.521,1.833 true 1.635,1.479 1.167,1.833 1.167,1.833 0.854,1.833 true 0.104,0.073 0.417,0.229 0.313,0.156 10 false *a 1.583,0.208 2.042,0.406 0.458,0.198 10 false A18 0.313,1.729 0.469,1.927 0.156,0.198 10 false E 2.802,1.729 3.115,1.927 0.313,0.198 10 false (*A) 2.646,1.729 2.802,1.927 0.156,0.198 10 false E 0.49,1.729 0.802,1.927 0.313,0.198 10 false (*B)
*A for LHD
*B for RHD
*a Front view of wire harness connector
(to Windshield Wiper Motor Assembly)


Disconnect the windshield wiper motor assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for LHD
Tester Connection Condition Specified Condition
A18-5 (E) - Body ground Always Below 1 Ω


for RHD
Tester Connection Condition Specified Condition
A18-4 (E) - Body ground Always Below 1 Ω


Result:
Proceed to
OK
NG



OK

REPLACE WINDSHIELD WIPER RELAY ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>WIPER ECU>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
