WIPER / WASHER WIPER ECU REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

Hide Display 83100 1.REMOVE COMBINATION METER ASSEMBLY

Hide Display 85940 2.REMOVE WINDSHIELD WIPER RELAY ASSEMBLY

0,0 0,0 false

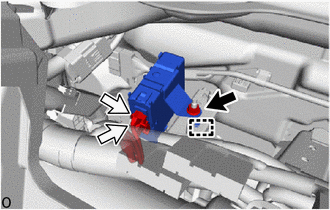

	Nut
	Connector

Remove the nut.

Detach the guide and remove the windshield wiper relay assembly.

NOTICE:: Do not subject the windshield wiper relay assembly to strong impacts or force, and do not drop it.
