WIPER / WASHER WIPER AND WASHER SYSTEM B2357 Lost Communication with Wiper Module
DESCRIPTION
The main body ECU (multiplex network body ECU) and windshield wiper relay assembly communicate via CXPI communication. The main body ECU (multiplex network body ECU) stores this DTC if communication becomes abnormal.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | Memory | DTC Output from |
|---|---|---|---|---|---|
| B2357 | Lost Communication with Wiper Module | Detection condition:
Battery voltage is 9.5 V or higher Malfunction Status:
Communication malfunction between the main body ECU (multiplex network body ECU) and windshield wiper relay assembly Malfunction Time:
10 seconds or more |
·
Windshield wiper relay assembly ·
Main body ECU (multiplex network body ECU) ·
Harness or connector ·
Windshield wiper relay (WIP MAIN) |
○ | Main Body |

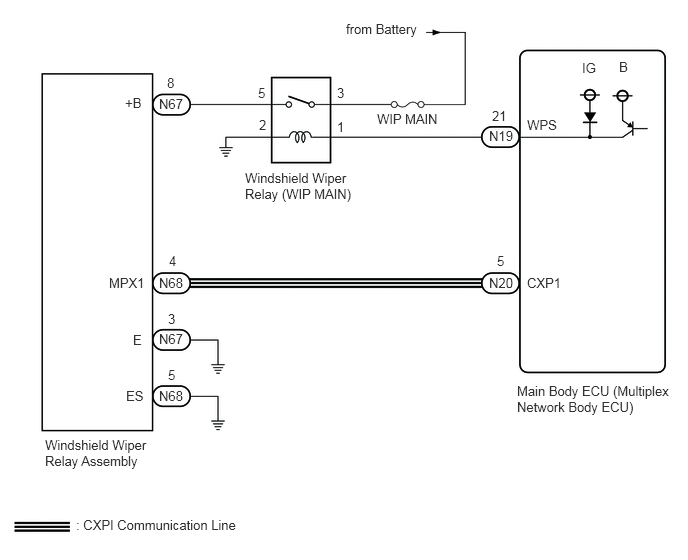

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- NOTICE:
- ·
Inspect the fuse of circuits related to this system before performing the following procedure.
·If the main body ECU (multiplex network body ECU) is replaced, refer to the Service Bulletin.
PROCEDURE
Disconnect the N68 windshield wiper relay assembly connector.
Disconnect the N20 main body ECU (multiplex network body ECU) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition N68-4 (MPX1) - N20-5 (CXP1) Always Below 1 Ω N68-4 (MPX1) or N20-5 (CXP1) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG

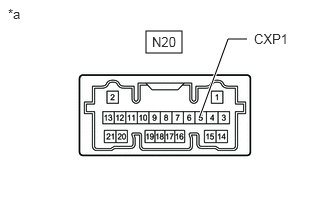

| *a | Component without harness connected
(Main Body ECU [Multiplex Network Body ECU]) |
Disconnect the main body ECU (multiplex network body ECU) connector.
Measure the voltage and pulses according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Switch Condition Specified Condition N20-5 (CXP1) - Body ground Ignition switch off Below 1 V Ignition switch ON Pulse generation
- Result:
Proceed to OK NG
OK
NG
for LHD:
for RHD:
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Enter following menus: Body Electrical / Main Body / Active Test.
Perform the Active Test according to the display on the GTS.
- Body Electrical > Main Body > Active Test
-
Tester Display Measurement Item Control Range Diagnostic Note Wiper Power Relay Operates the windshield wiper relay (WIP MAIN) OFF or ON -
- Body Electrical > Main Body > Active Test
-
Tester Display Wiper Power Relay - 50004 123 76
- OK:
Windshield wiper relay (WIP MAIN) operates normally.
- Result:
Proceed to OK NG
OK
NG

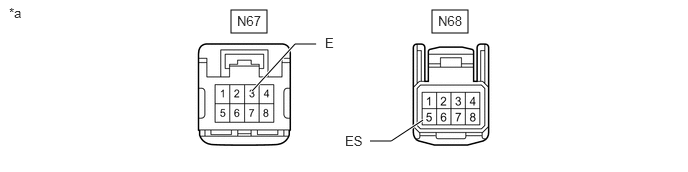

| *a | Front view of wire harness connector
(to Windshield Wiper Relay Assembly) |
- | - |
Disconnect the windshield wiper relay assembly connectors.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition N67-3 (E) - Body ground Always Below 1 Ω N68-5 (ES) - Body ground Always Below 1 Ω
- Result:
Proceed to OK NG
OK
NG
| *a | Front view of wire harness connector
(to Windshield Wiper Relay Assembly) |
Disconnect the windshield wiper relay assembly connector.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition N67-8 (+B) - Body ground Ignition switch ON 11 to 14 V Less than approximately 60 seconds after ignition switch turned off 11 to 14 V Approximately 60 seconds or more after ignition switch turned off Below 1 V
- Result:
Proceed to OK NG
OK
Click hereVehicle Exterior>WIPER / WASHER>WIPER ECU>REMOVAL201902,999999,_59,_079320,_0385310,RM100000001GLLS,
NG
Remove the windshield wiper relay (WIP MAIN) from the No. 1 engine room relay block assembly.
Inspect the windshield wiper relay (WIP MAIN).
- Result:
Proceed to OK NG
OK
NG
| *a | Front view of wire harness connector
(to Windshield Wiper Relay [WIP MAIN]) |
Remove the windshield wiper relay (WIP MAIN) from the No. 1 engine room relay block assembly.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition Windshield wiper relay (WIP MAIN) terminal 3 - Body ground Always 11 to 14 V
- Result:
Proceed to OK NG
OK
NG
Remove the windshield wiper relay (WIP MAIN) from the No. 1 engine room relay block assembly.
Disconnect the N67 windshield wiper relay assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition N67-8 (+B) - Windshield wiper relay (WIP MAIN) terminal 5 Always Below 1 Ω N67-8 (+B) or Windshield wiper relay (WIP MAIN) terminal 5 - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
for LHD:
for RHD:
NG
Remove the windshield wiper relay (WIP MAIN) from the No. 1 engine room relay block assembly.
Inspect the windshield wiper relay (WIP MAIN).
- Result:
Proceed to OK NG
OK
NG
Remove the windshield wiper relay (WIP MAIN) from the No. 1 engine room relay block assembly.
Disconnect the N19 main body ECU (multiplex network body ECU) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Windshield wiper relay (WIP MAIN) terminal 1 - N19-21 (WPS) Always Below 1 Ω Windshield wiper relay (WIP MAIN) terminal 1 or N19-21 (WPS) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
| *a | Front view of wire harness connector
(to Windshield Wiper Relay [WIP MAIN]) |
Remove the windshield wiper relay (WIP MAIN) from the No. 1 engine room relay block assembly.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Windshield wiper relay (WIP MAIN) terminal 2 - Body ground Always Below 1 Ω
- Result:
Proceed to OK NG
OK
for LHD:
for RHD:
NG
