RM35X0E _52 Drivetrain _078741 AC60E AUTOMATIC TRANSMISSION / TRANSAXLE _0385245 AUTOMATIC TRANSMISSION SYSTEM(for 7GR-FKS) C

AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  AUTOMATIC TRANSMISSION SYSTEM(for 7GR-FKS)  P074011  Torque Converter Clutch Circuit Short to Ground


DESCRIPTION

Shift solenoid valve SL is turned on and off by signals from the ECM to control the hydraulic pressure acting on the lock-up relay valve, which then controls operation of the lock-up clutch.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P074011 Torque Converter Clutch Circuit Short to Ground The shift solenoid valve SL terminal voltage level is low, when the shift solenoid valve SL is operated (2 trip detection logic).
·

Short in shift solenoid valve SL circuit

·

Shift solenoid valve SL

·

ECM


Comes on DTC stored SAE Code:
P2769

Fail-safe function:

If the ECM detects a malfunction, it turns shift solenoid valve SL off.

MONITOR DESCRIPTION

Based on the signals from the throttle position sensor, the air flow meter and the crankshaft position sensor, the ECM sends a signal to shift solenoid valve SL to regulate the hydraulic pressure and provide smoother torque converter engagement. Shift solenoid valve SL responds to commands from the ECM. The valve controls the lock-up relay valve to perform the torque-converter lock-up function. If the ECM detects a short in the shift solenoid valve SL circuit, it will illuminate the MIL and store the DTC.

CONFIRMATION DRIVING PATTERN

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:

After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.


1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON and turn the GTS on.

3.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4.

Turn the ignition switch off and wait for at least 30 seconds.

5.

Turn the ignition switch to ON and turn the GTS on.

6.

Start the engine.

8.

Stop the vehicle.

9.

Enter the following menus: Powertrain / Transmission / Utility / All Readiness.

10.

Input the DTC: P074011.

11.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions


N/A
·

Unable to perform DTC judgment

·

Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE or N/A, perform the Confirmation Driving Pattern and check the DTC judgment result again.




WIRING DIAGRAM

C378295
1.49,1.719 5.01,1.917 3.521,0.198 10 false Shift Solenoid Valve SL 1.542,2.688 5.063,2.885 3.521,0.198 10 false E29 1.521,2.875 5.042,3.073 3.521,0.198 10 false Transmission Wire 5.573,2.927 5.885,3.125 0.313,0.198 10 false E4 5.573,3.094 6.031,3.292 0.458,0.198 10 false ECM 3.344,1.146 3.656,1.344 0.313,0.198 10 false SL 5.156,1.146 5.469,1.344 0.313,0.198 10 false SL 3.604,1.146 3.917,1.344 0.313,0.198 10 false 1 4.938,1.146 5.25,1.344 0.313,0.198 10 false 15 5.771,0.854 6.385,1.052 0.615,0.198 10 false 12 V

CAUTION / NOTICE / HINT

PROCEDURE

1.INSPECT TRANSMISSION WIRE (SHIFT SOLENOID VALVE SL)
a.

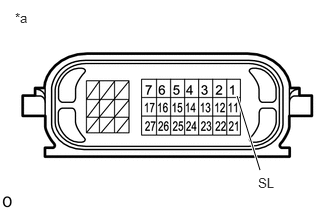

C319326C09
2.708,1.771 2.469,1 true 0.156,0.104 0.469,0.302 0.313,0.198 10 false *a 2.688,1.823 3.156,2.083 0.469,0.26 10 false SL
*a Component without harness connected
(Transmission Wire)


Disconnect the transmission wire connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 (SL) - Body ground 20°C (68°F) 11 to 15 Ω



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)

NG

3.INSPECT SHIFT SOLENOID VALVE SL
2.CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)
a.
C318003
1.771,0.292 2.167,0.51 0.396,0.219 1.417,2.917 1.74,1.896 true 0.104,0.104 0.417,0.26 0.313,0.156 10 false *a 1.25,2.969 2.323,3.167 1.073,0.198 10 false 15 (SL) 1.896,0.333 2.208,0.531 0.313,0.198 10 false E4
*a Rear view of wire harness connector
(to ECM)


Disconnect the ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E4-15 (SL) - Body ground 20°C (68°F) 11 to 15 Ω



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT SHIFT SOLENOID VALVE SL
a.

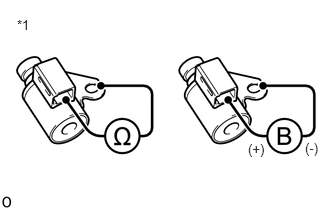

C320237C01
0.177,0.177 0.49,0.375 0.313,0.198 10 false *1 2.583,1.469 2.896,1.667 0.313,0.198 10 false (+) 3.177,1.458 3.427,1.667 0.25,0.208 10 false (-)
*1 Shift Solenoid Valve SL


Remove shift solenoid valve SL.

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>VALVE BODY ASSEMBLY>DISASSEMBLY


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Shift solenoid valve SL connector terminal - Shift solenoid valve SL body 20°C (68°F) 11 to 15 Ω



c.

Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:
Measurement Condition Specified Condition
·

Battery positive (+) → Shift solenoid valve SL connector

·

Battery negative (-) → Shift solenoid valve SL body


Valve moves and makes an operating noise



Result:
Proceed to
OK
NG



OK

NG
