RM35X0E _54 Brake _078667 BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS _0385049 ELECTRONICALLY CONTROLLED BRAKE SYSTEM(w/ VSC OFF Switch) J

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  ELECTRONICALLY CONTROLLED BRAKE SYSTEM(w/ VSC OFF Switch)  VSC OFF Switch Circuit


DESCRIPTION

The skid control ECU (brake actuator assembly) is connected to the combination meter assembly via CAN communication.

for Multi-information Display Type:

If the VSC OFF switch is pressed when the vehicle speed is 50 km/h or less, the system enters AUTO LSD mode and VSC operation stops. Also, the AUTO LSD indicator light and VSC OFF indicator light illuminate.

When the VSC OFF switch is pressed and held for 3 seconds or more with the vehicle stopped, the system enters VSC OFF mode and TRC and VSC operation stop. Also, a message indicating that TRC is canceled is displayed on the multi-information display in the combination meter assembly and the VSC OFF indicator light illuminates.

except Multi-information Display Type:

If the VSC OFF switch is pressed when the vehicle speed is 50 km/h or less, the system enters AUTO LSD mode and VSC operation stops. Also, the AUTO LSD indicator light and VSC OFF indicator light illuminate.

When the VSC OFF switch is pressed and held for 3 seconds or more with the vehicle stopped, the system enters VSC OFF mode and TRC and VSC operation stop. Also, the TRC OFF indicator light and VSC OFF indicator light illuminate.

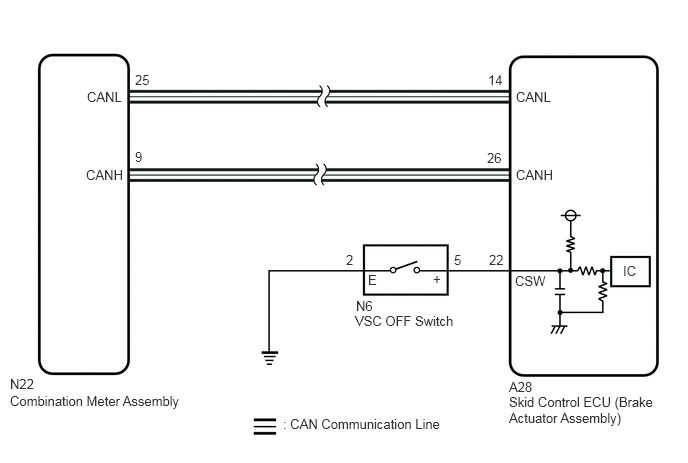

WIRING DIAGRAM

C397530E18
0.906,0.927 1.521,1.125 0.615,0.198 10 false CANL 0.896,1.74 1.51,1.938 0.615,0.198 10 false CANH 0.104,3.917 0.719,4.115 0.615,0.198 10 false N22 0.104,4.094 2.031,4.375 1.927,0.281 10 false Combination Meter Assembly 1.406,0.75 1.719,0.948 0.313,0.198 10 false 25 1.406,1.552 1.719,1.75 0.313,0.198 10 false 9 5.083,0.75 5.396,0.948 0.313,0.198 10 false 14 5.073,1.563 5.385,1.76 0.313,0.198 10 false 26 4.729,2.625 5.042,2.823 0.313,0.198 10 false 5 4.51,2.823 4.823,3.021 0.313,0.198 10 false + 3.833,2.833 4.146,3.031 0.313,0.198 10 false E 3.604,2.625 3.917,2.823 0.313,0.198 10 false 2 5.094,2.625 5.406,2.823 0.313,0.198 10 false 22 5.375,0.927 5.99,1.125 0.615,0.198 10 false CANL 5.375,1.74 5.99,1.938 0.615,0.198 10 false CANH 5.365,2.844 5.979,3.042 0.615,0.198 10 false CSW 3.708,3.104 4.323,3.302 0.615,0.198 10 false N6 3.698,3.26 5.458,3.563 1.76,0.302 10 false VSC OFF Switch 2.948,4.333 5.042,4.594 2.094,0.26 10 false : CAN Communication Line 6.49,2.74 7.104,2.938 0.615,0.198 10 false IC 5.302,3.948 5.917,4.146 0.615,0.198 10 false A28 5.302,4.104 6.854,4.49 1.552,0.385 10 false Skid Control ECU (Brake Actuator Assembly)

CAUTION / NOTICE / HINT

NOTICE:

After replacing the skid control ECU (brake actuator assembly), perform acceleration sensor zero point calibration and store system information memorization.

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (w/ VSC OFF Switch)>UTILITY


PROCEDURE

1.READ VALUE USING GTS (TRC(TRAC)/VSC OFF MODE)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Enter the following menus: Chassis / Brake / Data List.

Chassis > Brake > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
TRC(TRAC)/VSC OFF Mode TRC (TRAC)/VSC off mode Normal mode (TRC (TRAC) ON/VSC ON) /
TRC (TRAC) OFF mode (TRC (TRAC) OFF/VSC ON) /
Not defined /
VSC OFF mode (TRC (TRAC) OFF/VSC OFF)
Normal mode (TRC (TRAC) ON/VSC ON): Normal mode
TRC (TRAC) OFF mode (TRC (TRAC) OFF/VSC ON): AUTO LSD mode
Not defined: Not defined
VSC OFF mode (TRC (TRAC) OFF/VSC OFF): VSC off mode
-
Chassis > Brake > Data List
Tester Display
TRC(TRAC)/VSC OFF Mode
50003 435 45

d.

Check the indicator light and mode condition on the GTS changes according to VSC OFF switch operation.

Standard:
for Multi-information Display Type:
Switch Operation Mode Condition Display Multi-information Display ("TRC OFF message") VSC OFF Indicator Light
Not pressed Normal mode (TRC (TRAC) ON/VSC ON) Not displayed Does not come on
Pressing the VSC OFF switch TRC (TRAC) OFF mode (TRC (TRAC) OFF/VSC ON) Not displayed Comes on
Pressing and holding the VSC OFF switch VSC OFF mode (TRC (TRAC) OFF/VSC OFF) Displayed Comes on

except Multi-information Display Type:
Switch Operation Mode Condition Display TRC OFF Indicator Light VSC OFF Indicator Light
Not pressed Normal mode (TRC (TRAC) ON/VSC ON) Does not come on Does not come on
Pressing the VSC OFF switch TRC (TRAC) OFF mode (TRC (TRAC) OFF/VSC ON) Does not come on Comes on
Pressing and holding the VSC OFF switch VSC OFF mode (TRC (TRAC) OFF/VSC OFF) Comes on Comes on



Result:
Result Proceed to
Indicator light and mode condition display do not change A
Mode condition display is normal, but indicator light does not change B
Indicator light and mode condition display are normal C



A

2.INSPECT VSC OFF SWITCH

B

C

2.INSPECT VSC OFF SWITCH

OK

3.CHECK HARNESS AND CONNECTOR (BRAKE ACTUATOR ASSEMBLY - VSC OFF SWITCH)

NG

3.CHECK HARNESS AND CONNECTOR (BRAKE ACTUATOR ASSEMBLY - VSC OFF SWITCH)
a.

Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:

The connector is securely connected.



b.

Disconnect the A28 skid control ECU (brake actuator assembly) connector.


c.

Disconnect the N6 VSC OFF switch connector.


d.

Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.



e.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N6-5 (+) - A28-22 (CSW) Always Below 1 Ω
N6-5 (+) or A28-22 (CSW) - Body ground Always 10 kΩ or higher
N6-2 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
