BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  VSC OFF SWITCH  REMOVAL

33504F 1.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)

33622 2.DISCONNECT NO. 1 SHIFT LEVER KNOB COVER (for Automatic Transmission)

33504F 3.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)

58840Q 4.REMOVE SHIFTING HOLE COVER ASSEMBLY (for Manual Transmission)

35970F 5.REMOVE POSITION INDICATOR HOUSING ASSEMBLY (for Automatic Transmission)

55405B 6.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)

55900 7.REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)

84988L 8.REMOVE VSC OFF SWITCH

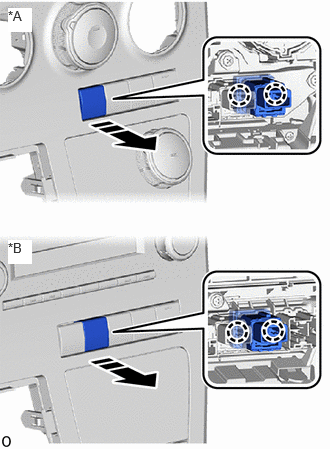

a.

0.083,0.083 0.333,0.333 0.25,0.25 10 true *A 0.083,2.5 0.333,2.75 0.25,0.25 10 true *B

*A	for Manual Air Conditioning
*B	for Automatic Air Conditioning
	Remove in this Direction

for Full-trim:

i.

Detach the claw and remove the VSC OFF switch.

b.

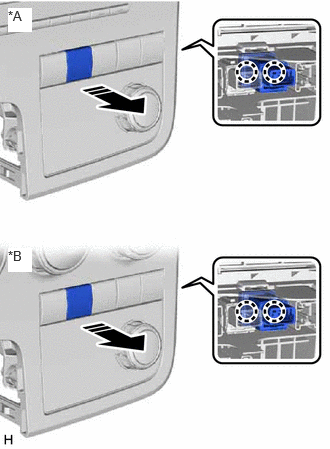

for Semi-trim:

i.

0.083,0.083 0.333,0.333 0.25,0.25 10 true *A 0.083,2.583 0.333,2.833 0.25,0.25 10 true *B

*A	for Automatic Air Conditioning
*B	for Manual Air Conditioning
	Remove in this Direction

Detach the claw and remove the VSC OFF switch.
