RM35X0E _58 Vehicle Interior _079257 SUPPLEMENTAL RESTRAINT SYSTEMS _0385034 AIRBAG SYSTEM(for Type B) C

SUPPLEMENTAL RESTRAINT SYSTEMS AIRBAG SYSTEM(for Type B) B166D Lost Communication with Front Door Pressure Sensor RH B166E Front Door Pressure Sensor RH Initialization Incomplete

DESCRIPTION

The side collision sensor RH circuit consists of the airbag sensor assembly, side airbag pressure sensor RH and No. 3 side airbag sensor RH.

The side airbag pressure sensor RH detects impacts to the vehicle and sends signals to the airbag sensor assembly to determine if the SRS should be deployed.

These DTCs are stored when a malfunction is detected in the side collision sensor RH circuit.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Warning Indicate	Test Mode / Check Mode
B166D	Lost Communication with Front Door Pressure Sensor RH	One of the following conditions is met: · The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the circuit for the side collision sensor RH for 2 seconds. · A side airbag pressure sensor RH malfunction. · A No. 3 side airbag sensor RH malfunction. · An airbag sensor assembly malfunction.	· No. 2 floor wire · No. 1 rear door wire · Instrument panel wire · Front door wire RH · Side airbag pressure sensor RH · No. 3 side airbag sensor RH · Airbag sensor assembly	Comes on	Not applicable
B166E	Front Door Pressure Sensor RH Initialization Incomplete	One of the following conditions is met: · The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the circuit for the side collision sensor RH for 2 seconds. · A side airbag pressure sensor RH malfunction. · A No. 3 side airbag sensor RH malfunction. · An airbag sensor assembly malfunction.	· No. 2 floor wire · No. 1 rear door wire · Instrument panel wire · Front door wire RH · Side airbag pressure sensor RH · No. 3 side airbag sensor RH · Airbag sensor assembly	Comes on	Not applicable

WIRING DIAGRAM

4.042,2.094 5.656,2.656 1.615,0.563 10 false Airbag Sensor Assembly 4.052,1.927 4.885,2.125 0.833,0.198 10 false W1 4.146,0.875 4.979,1.073 0.833,0.198 10 false BBR+ 4.156,1.458 4.99,1.656 0.833,0.198 10 false BBR- 3.833,0.75 4.833,1.167 1,0.417 10 false 25 3.792,1.365 4.75,1.833 0.958,0.469 10 false 26 1.615,0.75 2.448,0.948 0.833,0.198 10 false 4 1.635,1.313 2.469,1.51 0.833,0.198 10 false 3 1.115,0.854 1.948,1.052 0.833,0.198 10 false BBR+ 1.125,1.469 1.958,1.667 0.833,0.198 10 false BBR- 1.115,2.698 1.948,2.896 0.833,0.198 10 false BDR+ 1.135,3.438 1.969,3.635 0.833,0.198 10 false BDR- 1.615,2.594 2.448,2.792 0.833,0.198 10 false 1 1.625,3.313 2.458,3.51 0.833,0.198 10 false 2 5.688,2.698 6.521,2.896 0.833,0.198 10 false BDR+ 5.698,3.469 6.531,3.667 0.833,0.198 10 false BDR- 0.552,4.021 2.344,4.385 1.792,0.365 10 false No. 3 Side Airbag Sensor RH 0.552,3.823 1.313,4.156 0.76,0.333 10 false S1 5.594,4.063 6.917,4.667 1.323,0.604 10 false Side Airbag Pressure Sensor RH 5.583,3.833 6.344,4.167 0.76,0.333 10 false R5 2.354,3.458 3.115,3.792 0.76,0.333 10 false SW2 2.365,2.698 3.125,3.031 0.76,0.333 10 false SW2 2.469,3.24 3.302,3.438 0.833,0.198 10 false 3 2.781,0.625 3.615,0.823 0.833,0.198 10 false 2 2.344,2.938 3.177,3.135 0.833,0.198 10 false BDR+ 2.375,3.719 3.208,3.917 0.833,0.198 10 false BDR- 5.427,2.573 6.26,2.771 0.833,0.198 10 false 2 5.438,3.323 6.271,3.521 0.833,0.198 10 false 1 2.667,0.865 3.427,1.198 0.76,0.333 10 false SW2 2.667,1.469 3.427,1.802 0.76,0.333 10 false SW2 4.583,2.479 4.74,2.677 0.156,0.198 10 false 1 3.542,2.49 3.698,2.688 0.156,0.198 10 false 2 3.531,3.26 3.688,3.458 0.156,0.198 10 false 1 4.594,3.25 4.75,3.448 0.156,0.198 10 false 2 2.792,1.25 2.948,1.448 0.156,0.198 10 false 1 2.469,2.469 3.865,3.094 1.396,0.625 10 false 4 3.427,2.698 3.885,2.896 0.458,0.198 10 false NW1 3.427,3.458 3.885,3.656 0.458,0.198 10 false NW1 4.5,2.698 4.958,2.896 0.458,0.198 10 false RN3 4.5,3.458 4.958,3.656 0.458,0.198 10 false RN3 3.406,2.938 4.021,3.135 0.615,0.198 10 false BDR+ 4.469,2.948 5.083,3.146 0.615,0.198 10 false BDR+ 3.406,3.719 4.021,3.917 0.615,0.198 10 false BDR- 4.479,3.729 5.094,3.927 0.615,0.198 10 false BDR- 2.677,1.094 3.51,1.292 0.833,0.198 10 false BDR+ 2.677,1.708 3.51,1.906 0.833,0.198 10 false BDR-

CAUTION / NOTICE / HINT

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

When disconnecting and reconnecting the battery

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201902,201906,_V1,_081196,_0393338,RM100000001HX6R,201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201902,201906,_V1,_081196,_0393338,RM100000001HX6S,201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

After replacing the airbag sensor assembly, refer to initialization.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE201902,201906,_V1,_081196,_0393339,RM100000001HX6U,201906,202005,_V1,_081196,_0393339,RM100000001IWEZ,202005,202107,_V1,_081196,_0393339,RM100000001M43S,202107,202208,_V1,_081196,_0393339,RM100000001WMAF,202208,999999,_V1,_081196,_0393339,RM1000000024IQN,

PROCEDURE

1.CHECK CONNECTION OF CONNECTORS

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Check that the connectors are properly connected to the No. 3 side airbag sensor RH and side airbag pressure sensor RH.

Result:

Proceed to
The connectors are properly connected
The connectors are not properly connected

The connectors are properly connected

2.CHECK CONNECTORS

The connectors are not properly connected

CONNECT CONNECTORS PROPERLY

2.CHECK CONNECTORS

0.438,1.615 0.75,1.771 0.313,0.156 10 false *1 2.833,1.615 3.146,1.771 0.313,0.156 10 false *2 1.083,1.281 1.396,1.438 0.313,0.156 10 false *3 2.281,1.292 2.594,1.448 0.313,0.156 10 false *4

*1	Side Airbag Pressure Sensor RH
*2	No. 3 Side Airbag Sensor RH
*3	Front Door Wire RH
*4	No. 1 Rear Door Wire

Disconnect the connectors from the No. 3 side airbag sensor RH and side airbag pressure sensor RH.

Check that the connectors (on the No. 3 side airbag sensor RH side and side airbag pressure sensor RH side) are not damaged.

Result:

Proceed to
The connectors are not deformed or damaged
The connectors are deformed or damaged

The connectors are not deformed or damaged

3.CHECK SIDE AIRBAG PRESSURE SENSOR RH CIRCUIT

The connectors are deformed or damaged

REPLACE FRONT DOOR WIRE RH OR NO. 1 REAR DOOR WIRE

3.CHECK SIDE AIRBAG PRESSURE SENSOR RH CIRCUIT

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

3.365,1.729 3.708,1.948 0.344,0.219 2.615,1.781 2.958,2 0.344,0.219 1.74,2.417 1.906,2.417 1.906,2.417 1.979,1.969 true 2.49,2.406 2.323,2.406 2.323,2.406 2.229,1.958 true 4.24,1.938 4.469,2.406 4.469,2.406 4.635,2.406 true 4.083,1.948 3.917,2.396 3.917,2.396 3.781,2.396 true 4.5,2.583 4.333,2.583 4.333,2.583 4.26,2.344 true 0.823,1.042 1.135,1.24 0.313,0.198 10 false *1 5.521,1.042 5.833,1.24 0.313,0.198 10 false *2 1.896,0.719 2.208,0.917 0.313,0.198 10 false *3 2.75,0.719 3.063,0.917 0.313,0.198 10 false *4 3.635,0.708 3.948,0.906 0.313,0.198 10 false *5 4.51,0.688 4.823,0.885 0.313,0.198 10 false *6 5.26,0.448 5.417,0.646 0.156,0.198 10 false A 4.885,0.458 5.156,0.823 0.271,0.365 10 false B 4.208,0.448 4.542,0.698 0.333,0.25 10 false C 4.021,0.448 4.375,1.021 0.354,0.573 10 false D 3.344,0.458 4,0.99 0.656,0.531 10 false E 3.167,0.458 3.417,0.854 0.25,0.396 10 false F 2.469,0.448 2.698,0.854 0.229,0.406 10 false G 2.281,0.448 2.594,0.854 0.313,0.406 10 false H 1.646,0.438 2.01,0.771 0.365,0.333 10 false I 1.229,0.448 1.677,0.854 0.448,0.406 10 false J 1.323,2.344 1.938,2.542 0.615,0.198 10 false BDR- 2.563,2.333 3.177,2.531 0.615,0.198 10 false BDR+ 3.448,1.771 3.906,1.969 0.458,0.198 10 false S1 1.313,1.406 1.625,1.604 0.313,0.198 10 false *a 3.438,1.406 3.75,1.604 0.313,0.198 10 false *b 2.698,1.813 3.156,2.01 0.458,0.198 10 false R5 3.385,2.302 4,2.5 0.615,0.198 10 false BDR+ 4.729,2.313 5.344,2.51 0.615,0.198 10 false BDR- 4.583,2.521 4.896,2.719 0.313,0.198 10 false *7

*1	Side Airbag Pressure Sensor RH	*2	No. 3 Side Airbag Sensor RH
*3	Front Door Wire RH	*4	Instrument Panel Wire
*5	No. 2 Floor Wire	*6	No. 1 Rear Door Wire
*7	Service Wire	-	-
*a	Front view of wire harness connector (to Side Airbag Pressure Sensor RH)	*b	Front view of wire harness connector (to No. 3 Side Airbag Sensor RH)

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
R5-2 (BDR+) - Body ground	Ignition switch ON	Below 1 V
R5-1 (BDR-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 1 (BDR+) and 2 (BDR-) of connector B.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
R5-2 (BDR+) - R5-1 (BDR-)	Always	Below 1 Ω

Disconnect the service wire from connector B.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
R5-2 (BDR+) - R5-1 (BDR-)	Always	1 MΩ or higher
R5-2 (BDR+) - Body ground	Always	1 MΩ or higher
R5-1 (BDR-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

4.CHECK SIDE AIRBAG PRESSURE SENSOR RH

5.CHECK CONNECTORS

4.CHECK SIDE AIRBAG PRESSURE SENSOR RH

0.427,1.563 0.698,1.74 0.271,0.177 10 false *1 2.833,1.552 3.146,1.76 0.313,0.208 10 false *2

*1	Side Airbag Pressure Sensor LH
*2	No. 3 Side Airbag Sensor RH

Connect the connector to the No. 3 side airbag sensor RH.

Interchange the side airbag pressure sensor RH with LH and connect the connectors to them.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Body Electrical > SRS Airbag > Clear DTCs: 50002 188

Turn the ignition switch off.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Body Electrical > SRS Airbag > Trouble Codes: 50001 188

Result:

Proceed to
DTC B166D or B166E is output
DTC B167B or B167C is output
DTCs B166D, B166E, B167B and B167C are not output

HINT:: Codes other than DTC B166D, B166E, B167B and B167C may be output at this time, but they are not related to this check.

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Return the side airbag pressure sensor LH and RH to their original positions and connect the connectors to them.

DTC B166D or B166E is output

REPLACE AIRBAG SENSOR ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL201902,201906,_58,_079257,_0384942,RM100000001GJ8V,201906,999999,_58,_079257,_0384942,RM100000001IN22,

DTC B167B or B167C is output

REPLACE SIDE AIRBAG PRESSURE SENSOR RH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Front Door)>REMOVAL201902,201906,_58,_079257,_0384944,RM100000001GJ94,201906,999999,_58,_079257,_0384944,RM100000001IWA5,

DTCs B166D, B166E, B167B and B167C are not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_V1,_078841,_0386803,RM100000001GTWY,

5.CHECK CONNECTORS

0.438,1.833 0.75,1.99 0.313,0.156 10 false *1 2.708,1.635 3.021,1.792 0.313,0.156 10 false *2 1.427,1.531 1.74,1.688 0.313,0.156 10 false *3 1.917,1.542 2.229,1.698 0.313,0.156 10 false *4

*1	Side Airbag Pressure Sensor RH
*2	No. 3 Side Airbag Sensor RH
*3	No. 2 Floor Wire
*4	No. 1 Rear Door Wire

Disconnect the No. 1 rear door wire connector from the No. 2 floor wire.

Check that the connectors (on the No. 1 rear door wire side and No. 2 floor wire side) are not damaged.

Result:

Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged

The connector is not deformed or damaged

6.CHECK NO. 1 REAR DOOR WIRE

The connector is deformed or damaged

REPLACE NO. 1 REAR DOOR WIRE OR NO. 2 FLOOR WIRE

6.CHECK NO. 1 REAR DOOR WIRE

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

5.875,1.406 6.219,1.635 0.344,0.229 3.76,1.5 4.167,1.698 0.406,0.198 3.042,2.51 3.208,2.51 3.208,2.51 3.281,2.073 true 3.708,2.51 3.542,2.51 3.542,2.51 3.427,2.073 true 5.563,2.313 5.396,2.313 5.396,2.313 5.229,1.906 true 4.771,2.302 4.948,2.302 4.948,2.302 5.073,1.906 true 5.448,2.521 5.26,2.521 5.26,2.521 5.156,2.344 true 0.75,0.99 1.063,1.188 0.313,0.198 10 false *1 5.854,0.99 6.167,1.188 0.313,0.198 10 false *2 3.385,0.677 3.698,0.875 0.313,0.198 10 false *3 5.948,1.448 6.406,1.646 0.458,0.198 10 false S1 2.656,2.427 3.271,2.625 0.615,0.198 10 false BDR- 3.771,2.427 4.385,2.625 0.615,0.198 10 false BDR+ 4.385,2.229 5,2.427 0.615,0.198 10 false BDR+ 5.625,2.24 6.24,2.438 0.615,0.198 10 false BDR- 5.594,0.427 5.75,0.625 0.156,0.198 10 false A 5.24,0.438 5.406,0.656 0.167,0.219 10 false B 4.083,0.417 4.25,0.635 0.167,0.219 10 false C 3.719,0.427 4.052,0.823 0.333,0.396 10 false D 3.063,0.438 3.396,0.833 0.333,0.396 10 false E 2.896,0.427 3.229,0.823 0.333,0.396 10 false F 2.229,0.427 2.563,0.823 0.333,0.396 10 false G 2.042,0.427 2.198,0.625 0.156,0.198 10 false H 1.417,0.438 1.573,0.635 0.156,0.198 10 false I 1.125,0.438 1.281,0.635 0.156,0.198 10 false J 4.531,0.667 4.844,0.865 0.313,0.198 10 false *4 2.479,1.354 2.792,1.552 0.313,0.198 10 false *a 4.458,1.354 4.771,1.552 0.313,0.198 10 false *b 5.521,2.469 5.833,2.667 0.313,0.198 10 false *5 3.813,1.521 4.271,1.719 0.458,0.198 10 false SW2

*1	Side Airbag Pressure Sensor RH	*2	No. 3 Side Airbag Sensor RH
*3	No. 2 Floor Wire	*4	No. 1 Rear Door Wire
*5	Service Wire	-	-
*a	Front view of wire harness connector (to No. 2 Floor Wire)	*b	Front view of wire harness connector (to No. 3 Side Airbag Sensor RH)

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
SW2-4 (BDR+) - Body ground	Ignition switch ON	Below 1 V
SW2-3 (BDR-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 1 (BDR+) and 2 (BDR-) of connector B.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
SW2-4 (BDR+) - SW2-3 (BDR-)	Always	Below 1 Ω

Disconnect the service wire from connector B.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
SW2-4 (BDR+) - SW2-3 (BDR-)	Always	1 MΩ or higher
SW2-4 (BDR+) - Body ground	Always	1 MΩ or higher
SW2-3 (BDR-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

7.CHECK CONNECTORS

REPLACE NO. 1 REAR DOOR WIRE

7.CHECK CONNECTORS

0.302,1.792 0.615,1.948 0.313,0.156 10 false *1 2.76,1.635 3.073,1.792 0.313,0.156 10 false *2 1.698,1.531 2.01,1.688 0.313,0.156 10 false *4 1.271,1.521 1.583,1.677 0.313,0.156 10 false *3

*1	Side Airbag Pressure Sensor RH
*2	No. 3 Side Airbag Sensor RH
*3	Instrument Panel Wire
*4	No. 2 Floor Wire

Disconnect the No. 2 floor wire connector from the instrument panel wire.

Check that the connectors (on the No. 2 floor wire side and instrument panel wire side) are not damaged.

Result:

Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged

The connector is not deformed or damaged

8.CHECK NO. 2 FLOOR WIRE

The connector is deformed or damaged

REPLACE NO. 2 FLOOR WIRE OR INSTRUMENT PANEL WIRE

8.CHECK NO. 2 FLOOR WIRE

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

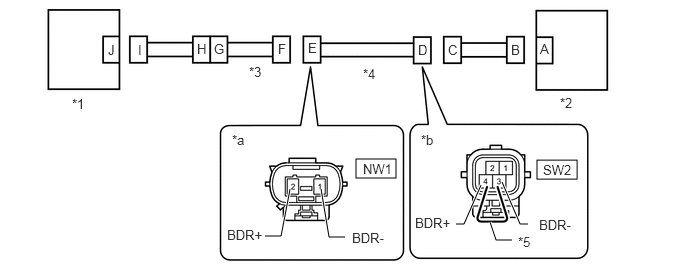

3.708,1.656 4.125,1.854 0.417,0.198 5.594,1.667 6.01,1.865 0.417,0.198 2.76,2.458 2.927,2.458 2.927,2.458 3.021,1.969 true 3.594,2.469 3.427,2.469 3.427,2.469 3.344,1.969 true 5.5,2.333 5.417,2.333 5.417,2.333 5.229,1.896 true 4.75,2.333 4.833,2.333 4.833,2.333 5.01,1.927 true 5.333,2.5 5.167,2.5 5.167,2.5 5.104,2.313 true 0.75,1 1.063,1.198 0.313,0.198 10 false *1 5.833,0.99 6.146,1.188 0.313,0.198 10 false *2 2.594,0.667 2.906,0.865 0.313,0.198 10 false *3 4.323,2.24 4.938,2.438 0.615,0.198 10 false BDR+ 5.615,2.26 6.229,2.458 0.615,0.198 10 false BDR- 3.667,2.396 4.281,2.594 0.615,0.198 10 false BDR- 2.365,2.365 2.979,2.563 0.615,0.198 10 false BDR+ 5.625,0.427 5.781,0.625 0.156,0.198 10 false A 5.323,0.438 5.49,0.656 0.167,0.219 10 false B 4.667,0.438 4.833,0.656 0.167,0.219 10 false C 4.354,0.438 4.688,0.833 0.333,0.396 10 false D 3.208,0.417 3.542,0.813 0.333,0.396 10 false E 2.896,0.427 3.229,0.823 0.333,0.396 10 false F 2.229,0.427 2.563,0.823 0.333,0.396 10 false G 2.052,0.427 2.208,0.625 0.156,0.198 10 false H 1.438,0.438 1.594,0.635 0.156,0.198 10 false I 1.125,0.438 1.281,0.635 0.156,0.198 10 false J 3.781,0.688 4.094,0.885 0.313,0.198 10 false *4 2.417,1.375 2.729,1.573 0.313,0.198 10 false *a 4.385,1.375 4.698,1.573 0.313,0.198 10 false *b 5.396,2.438 5.708,2.635 0.313,0.198 10 false *5 5.656,1.688 6.115,1.885 0.458,0.198 10 false SW2 3.781,1.677 4.24,1.875 0.458,0.198 10 false NW1

*1	Side Airbag Pressure Sensor RH	*2	No. 3 Side Airbag Sensor RH
*3	Instrument Panel Wire	*4	No. 2 Floor Wire
*5	Service Wire	-	-
*a	Front view of wire harness connector (to Instrument Panel Wire)	*b	Front view of wire harness connector (to No. 1 Rear Door Wire)

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
NW1-2 (BDR+) - Body ground	Ignition switch ON	Below 1 V
NW1-1 (BDR-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 4 (BDR+) and 3 (BDR-) of connector D.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
NW1-2 (BDR+) - NW1-1 (BDR-)	Always	Below 1 Ω

Disconnect the service wire from connector D.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
NW1-2 (BDR+) - NW1-1 (BDR-)	Always	1 MΩ or higher
NW1-2 (BDR+) - Body ground	Always	1 MΩ or higher
NW1-1 (BDR-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

9.CHECK CONNECTORS

REPLACE NO. 2 FLOOR WIRE

9.CHECK CONNECTORS

0.385,1.573 0.698,1.729 0.313,0.156 10 false *1 2.896,1.604 3.208,1.76 0.313,0.156 10 false *2 0.969,1.292 1.281,1.448 0.313,0.156 10 false *3 1.458,1.292 1.771,1.448 0.313,0.156 10 false *4

*1	Side Airbag Pressure Sensor RH
*2	No. 3 Side Airbag Sensor RH
*3	Front Door Wire RH
*4	Instrument Panel Wire

Disconnect the front door wire RH connector from the instrument panel wire.

Check that the connectors (on the front door wire RH side and instrument panel wire side) are not damaged.

Result:

Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged

The connector is not deformed or damaged

10.CHECK INSTRUMENT PANEL WIRE

The connector is deformed or damaged

REPLACE INSTRUMENT PANEL WIRE OR FRONT DOOR WIRE RH

10.CHECK INSTRUMENT PANEL WIRE

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

4.115,1.677 4.531,1.927 0.417,0.25 2.094,1.521 2.51,1.729 0.417,0.208 1.167,2.167 1.25,2.167 1.25,2.167 1.542,1.802 true 2.167,2.167 2.083,2.167 2.083,2.167 1.771,1.792 true 4.083,2.333 3.917,2.333 3.917,2.333 3.74,1.917 true 3.167,2.333 3.25,2.333 3.25,2.333 3.469,1.927 true 3.865,2.5 3.677,2.5 3.677,2.5 3.573,2.323 true 0.75,0.99 1.063,1.188 0.313,0.198 10 false *1 6.063,1.01 6.375,1.208 0.313,0.198 10 false *2 1.719,0.667 2.031,0.865 0.313,0.198 10 false *3 2.76,2.25 3.375,2.448 0.615,0.198 10 false BDR- 2.219,2.094 2.833,2.292 0.615,0.198 10 false BDR+ 0.792,2.094 1.406,2.292 0.615,0.198 10 false BDR- 4.156,2.25 4.771,2.448 0.615,0.198 10 false BDR+ 5.813,0.438 5.969,0.635 0.156,0.198 10 false A 5.51,0.438 5.677,0.656 0.167,0.219 10 false B 4.865,0.438 5.031,0.656 0.167,0.219 10 false C 4.531,0.438 4.865,0.833 0.333,0.396 10 false D 3.875,0.438 4.208,0.833 0.333,0.396 10 false E 3.563,0.438 3.896,0.833 0.333,0.396 10 false F 2.396,0.427 2.729,0.823 0.333,0.396 10 false G 2.083,0.427 2.24,0.625 0.156,0.198 10 false H 1.458,0.448 1.615,0.646 0.156,0.198 10 false I 1.135,0.427 1.292,0.625 0.156,0.198 10 false J 2.917,0.667 3.229,0.865 0.313,0.198 10 false *4 0.844,1.365 1.156,1.563 0.313,0.198 10 false *a 2.781,1.365 3.094,1.563 0.313,0.198 10 false *b 3.948,2.448 4.26,2.646 0.313,0.198 10 false *5 4.188,1.719 4.646,1.917 0.458,0.198 10 false NW1 2.167,1.552 2.625,1.75 0.458,0.198 10 false RN3

*1	Side Airbag Pressure Sensor RH	*2	No. 3 Side Airbag Sensor RH
*3	Front Door Wire RH	*4	Instrument Panel Wire
*5	Service Wire	-	-
*a	Front view of wire harness connector (toFront Door Wire RH)	*b	Front view of wire harness connector (to No. 2 Floor Wire)

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
RN3-1 (BDR+) - Body ground	Ignition switch ON	Below 1 V
RN3-2 (BDR-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 2 (BDR+) and 1 (BDR-) of connector F.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
RN3-1 (BDR+) - RN3-2 (BDR-)	Always	Below 1 Ω

Disconnect the service wire from connector F.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
RN3-1 (BDR+) - RN3-2 (BDR-)	Always	1 MΩ or higher
RN3-1 (BDR+) - Body ground	Always	1 MΩ or higher
RN3-2 (BDR-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

REPLACE FRONT DOOR WIRE RH

REPLACE INSTRUMENT PANEL WIRE
