AUDIO / VIDEO AUDIO AND VISUAL SYSTEM(for Radio Receiver Type) Illumination Circuit

DESCRIPTION

Power is supplied to the radio receiver assembly and steering pad switch assembly illumination when the light control switch is in the tail or head position.

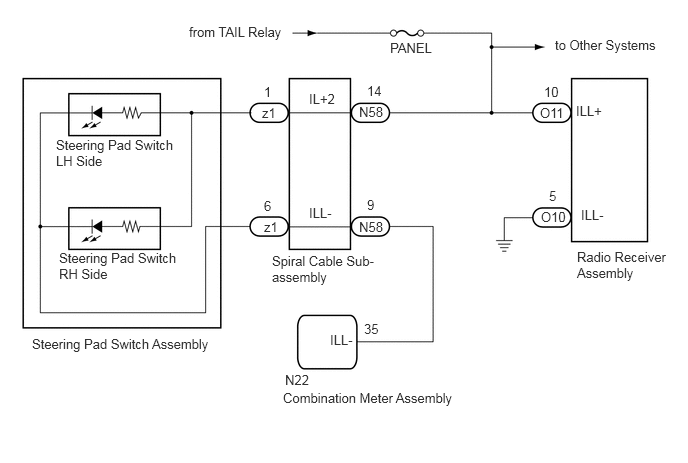

WIRING DIAGRAM

1.969,0.25 3.26,0.469 1.292,0.219 10 false from TAIL Relay 6,1.073 6.354,1.281 0.354,0.208 10 false ILL+ 5.635,2.177 6.01,2.385 0.375,0.208 10 false O10 6.01,2.594 7,2.99 0.99,0.396 10 false Radio Receiver Assembly 3.219,0.948 3.635,1.198 0.417,0.25 10 false IL+2 4.063,0.417 4.771,0.594 0.708,0.177 10 false PANEL 3.74,1.083 4.125,1.292 0.385,0.208 10 false N58 2.729,1.094 2.99,1.281 0.26,0.188 10 false z1 2.969,3.875 3.365,4.052 0.396,0.177 10 false N22 2.833,2.635 4.031,3.115 1.198,0.479 10 false Spiral Cable Sub-assembly 0.615,2.604 1.875,2.958 1.26,0.354 10 false Steering Pad Switch RH Side 2.75,0.875 2.917,1.042 0.167,0.167 10 false 1 2.75,2.063 2.917,2.229 0.167,0.167 10 false 6 3.823,2.052 4.031,2.219 0.208,0.167 10 false 9 3.823,0.865 4.083,1.042 0.26,0.177 10 false 14 5.667,0.875 5.865,1.052 0.198,0.177 10 false 10 0.583,1.427 1.865,1.771 1.281,0.344 10 false Steering Pad Switch LH Side 0.333,3.5 2.365,3.74 2.031,0.24 10 false Steering Pad Switch Assembly 6.052,2.156 6.667,2.354 0.615,0.198 10 false ILL- 5.719,1.958 5.896,2.146 0.177,0.188 10 false 5 5.781,0.385 7.073,0.604 1.292,0.219 10 false to Other Systems 3.74,2.281 4.125,2.49 0.385,0.208 10 false N58 3.219,2.135 3.635,2.385 0.417,0.25 10 false ILL- 5.625,1.094 6,1.302 0.375,0.208 10 false O11 3.438,3.458 3.854,3.708 0.417,0.25 10 false ILL- 2.948,4.063 4.906,4.365 1.958,0.302 10 false Combination Meter Assembly 2.75,2.281 3.01,2.469 0.26,0.188 10 false z1 3.792,3.344 4,3.51 0.208,0.167 10 false 35

CAUTION / NOTICE / HINT

NOTICE:: ·

The vehicle is equipped with a supplemental restraint system (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution for supplemental restraint system.

for Type A: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201902,201906,_58,_079257,_0387732,RM100000001GZ4C,201906,999999,_58,_079257,_0387732,RM100000001IMN3,

for Type B: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE

1.CHECK ILLUMINATION

Check if the illumination for the radio receiver assembly, steering pad switch assembly, heater control switch or others (hazard switch, transmission control switch, etc.) comes on when the light control switch is turned to the head or tail position.

Result:

Result	Proceed to
Illumination comes on for all components except steering pad switch assembly.	A
Illumination comes on for all components except radio receiver assembly.	B
No illumination comes on (radio receiver assembly, hazard switch, heater control switch, etc.).	C

2.CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - BATTERY)

6.CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - BATTERY AND BODY GROUND)

GO TO LIGHTING SYSTEM

Click hereVehicle Interior>LIGHTING (INT)>LIGHTING SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING201902,201906,_58,_078381,_0380033,RM100000001FZ6N,201906,999999,_58,_078381,_0380033,RM100000001IFRB,

2.CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - BATTERY)

1.5,0.25 1.875,0.479 0.375,0.229 2.24,1.5 2.313,1.917 2.313,1.917 2.479,1.917 true 2.531,1.833 2.917,2.021 0.385,0.188 10 false IL+2 0.083,0.104 0.396,0.302 0.313,0.198 10 false *a 1.573,0.281 1.885,0.479 0.313,0.198 10 false N58

*a	Front view of wire harness connector (to Spiral Cable Sub-assembly)

Disconnect the spiral cable sub-assembly connector.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
N58-14 (IL+2) - Body ground	Ignition switch ON Light control switch in the tail or head position	11 to 14 V

Result:

Proceed to
OK
NG

3.INSPECT STEERING PAD SWITCH ASSEMBLY

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT STEERING PAD SWITCH ASSEMBLY

Remove the steering pad switch assembly.

Click hereSteering>STEERING COLUMN>STEERING PAD SWITCH>REMOVAL201902,201906,_55,_079313,_0388801,RM100000001H42O,201906,999999,_55,_079313,_0388801,RM100000001J04D,

Inspect the steering pad switch assembly.

Click hereSteering>STEERING COLUMN>STEERING PAD SWITCH>INSPECTION201902,201906,_55,_079313,_0388801,RM100000001H42P,201906,999999,_55,_079313,_0388801,RM100000001IGWQ,

Result:

Proceed to
OK
NG

4.INSPECT SPIRAL CABLE SUB-ASSEMBLY

REPLACE STEERING PAD SWITCH ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING PAD SWITCH>REMOVAL201902,201906,_55,_079313,_0388801,RM100000001H42O,201906,999999,_55,_079313,_0388801,RM100000001J04D,

4.INSPECT SPIRAL CABLE SUB-ASSEMBLY

Remove the spiral cable sub-assembly.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>REMOVAL201902,201906,_58,_079257,_0384936,RM100000001GJ81,201906,999999,_58,_079257,_0384936,RM100000001II9V,

Inspect the spiral cable sub-assembly.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>INSPECTION201902,999999,_58,_079257,_0384936,RM100000001GJ83,

Result:

Proceed to
OK
NG

5.CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - COMBINATION METER ASSEMBLY)

REPLACE SPIRAL CABLE SUB-ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>REMOVAL201902,201906,_58,_079257,_0384936,RM100000001GJ81,201906,999999,_58,_079257,_0384936,RM100000001II9V,

5.CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - COMBINATION METER ASSEMBLY)

Disconnect the N58 spiral cable sub-assembly connector.

Disconnect the N22 combination meter assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
N58-9 (ILL-) - N22-35 (ILL-)	Always	Below 1 Ω
N58-9 (ILL-) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL201902,201906,_58,_078337,_0380006,RM100000001FR91,201906,999999,_58,_078337,_0380006,RM100000001IHHE,

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - BATTERY AND BODY GROUND)

1.479,0.25 1.938,0.51 0.458,0.26 1.51,1.896 1.969,2.156 0.458,0.26 2.594,1.521 2.427,1.521 2.427,1.521 2.188,1.208 true 2.292,3.146 2.125,3.146 2.125,3.146 1.885,2.833 true 0.063,0.063 0.375,0.26 0.313,0.198 10 false *a 1.563,0.292 1.875,0.49 0.313,0.198 10 false O11 1.625,1.948 1.938,2.146 0.313,0.198 10 false O10 2.646,1.448 3.031,1.656 0.385,0.208 10 false ILL+ 2.344,3.052 2.729,3.26 0.385,0.208 10 false ILL-

*a	Front view of wire harness connector (to Radio Receiver Assembly)

Disconnect the radio receiver assembly connector.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
O11-10 (ILL+) - Body ground	Ignition switch ON Light control switch in the tail or head position	11 to 14 V

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
O10-5(ILL-) - Body ground	Always	Below 1 Ω

Result:

Proceed to
OK
NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM (for Radio Receiver Type)>PROBLEM SYMPTOMS TABLE201902,999999,_56,_078377,_0383454,RM100000001GBBI,

REPAIR OR REPLACE HARNESS OR CONNECTOR
