RM35X0E _51 Engine / Hybrid System _078720 7GR-FKS ENGINE CONTROL _0381907 SFI SYSTEM C

7GR-FKS ENGINE CONTROL SFI SYSTEM P013613 O2 Sensor Circuit Bank 1 Sensor 2 Circuit Open P013617 O2 Sensor Circuit Bank 1 Sensor 2 Circuit Voltage Above Threshold P01361C O2 Sensor Circuit Bank 1 Sensor 2 Circuit Voltage Out of Range P015613 O2 Sensor Circuit Bank 2 Sensor 2 Circuit Open P015617 O2 Sensor Circuit Bank 2 Sensor 2 Circuit Voltage Above Threshold P01561C O2 Sensor Circuit Bank 2 Sensor 2 Circuit Voltage Out of Range

DESCRIPTION

In order to obtain a high purification rate of the carbon monoxide (CO), hydrocarbon (HC) and nitrogen oxide (NOx) components in the exhaust gas, a TWC (Three-Way Catalytic Converter) is used. For the most efficient use of the TWC, the air fuel ratio must be precisely controlled so that it is always close to the stoichiometric air fuel level. For the purpose of helping the ECM to deliver accurate air fuel ratio control, a heated oxygen sensor is used.

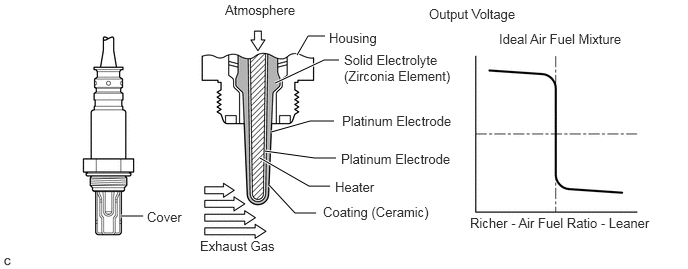

The heated oxygen sensor is located behind the TWC, and detects the oxygen concentration in the exhaust gas. Since the sensor is integrated with the heater that heats the sensing portion, it is possible to detect the oxygen concentration even when the intake air volume is low (the exhaust gas temperature is low).

When the air fuel ratio becomes lean, the oxygen concentration in the exhaust gas is high. The heated oxygen sensor informs the ECM that the post-TWC air fuel ratio is lean (low voltage, i.e. less than 0.45 V).

Conversely, when the air fuel ratio is richer than the stoichiometric air fuel level, the oxygen concentration in the exhaust gas is low. The heated oxygen sensor informs the ECM that the post-TWC air fuel ratio is rich (high voltage, i.e. higher than 0.45 V). The heated oxygen sensor has the property of changing its output voltage drastically when the air fuel ratio is close to the stoichiometric level.

The ECM uses the supplementary information from the heated oxygen sensor to determine whether the air fuel ratio after the TWC is rich or lean, and adjusts the fuel injection duration accordingly. Thus, if the heated oxygen sensor is working improperly due to internal malfunctions, the ECM is unable to compensate for deviations in the primary air fuel ratio control.

3.094,0.573 3.208,0.375 3.208,0.375 3.385,0.375 true 2.865,0.865 3.375,0.625 3.375,0.625 3.531,0.625 true 2.76,1.573 3.281,1.646 3.281,1.646 3.5,1.646 true 3.479,1.26 3.229,1.26 3.229,1.26 2.823,1.375 true 2.802,1.927 3.073,2.219 3.073,2.219 3.292,2.219 true 2.708,1.646 3.219,1.938 3.219,1.938 3.438,1.938 true 1.26,2.25 1.49,2.25 true 3.427,0.313 4.958,0.51 1.531,0.198 10 false Housing 1.531,2.177 3.063,2.375 1.531,0.198 10 false Cover 2.344,0.021 3.156,0.229 0.813,0.208 10 false Atmosphere 3.552,1.573 5.083,1.771 1.531,0.198 10 false Platinum Electrode 3.583,0.542 4.698,1 1.115,0.458 10 false Solid Electrolyte (Zirconia Element) 3.49,1.865 5.021,2.063 1.531,0.198 10 false Heater 3.365,2.125 4.896,2.323 1.531,0.198 10 false Coating (Ceramic) 2.083,2.479 3.615,2.677 1.531,0.198 10 false Exhaust Gas 4.469,0.063 5.458,0.302 0.99,0.24 10 false Output Voltage 5.198,0.323 6.594,0.573 1.396,0.25 10 false Ideal Air Fuel Mixture 4.896,2.24 6.844,2.469 1.948,0.229 10 false Richer - Air Fuel Ratio - Leaner 3.563,1.177 5.094,1.375 1.531,0.198 10 false Platinum Electrode

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	MIL	Memory	Note
P013613	O2 Sensor Circuit Bank 1 Sensor 2 Circuit Open	Abnormal voltage output: During active air fuel ratio control, the following conditions (a) and (b) are met for a certain period of time (2 trip detection logic): (a) Heated oxygen sensor voltage does not increase to 0.71 V or higher. (b) Heated oxygen sensor voltage does not decrease to less than 0.21 V.	· Heated oxygen sensor (bank 1 sensor 2) circuit · Heated oxygen sensor (bank 1 sensor 2) · Air fuel ratio sensor (bank 1 sensor 1) · Gas leak from exhaust system · Fuel pressure · Fuel system · PCV valve and hose · Intake system	Comes on	DTC stored	SAE Code: P0136
P013617	O2 Sensor Circuit Bank 1 Sensor 2 Circuit Voltage Above Threshold	Low voltage (open): During active air fuel ratio control, following conditions (a) and (b) met for certain period of time (2 trip detection logic) (a) Heated oxygen sensor voltage output less than 0.21 V (b) Target air fuel ratio rich	· Heated oxygen sensor (bank 1 sensor 2) circuit · Heated oxygen sensor (bank 1 sensor 2) · Air fuel ratio sensor (bank 1 sensor 1) · Gas leak from exhaust system	Comes on	DTC stored	SAE Code: P0137
P01361C	O2 Sensor Circuit Bank 1 Sensor 2 Circuit Voltage Out of Range	High voltage (short): During active air fuel ratio control, the following conditions (a) and (b) are met for a certain period of time (2 trip detection logic): (a) Heated oxygen sensor voltage output is higher than 0.71 V. (b) Target air fuel ratio is lean.	· Heated oxygen sensor (bank 1 sensor 2) circuit · Heated oxygen sensor (bank 1 sensor 2) · Air fuel ratio sensor (bank 1 sensor 1) · ECM	Comes on	DTC stored	SAE Code: P0138
P015613	O2 Sensor Circuit Bank 2 Sensor 2 Circuit Open	Abnormal voltage output: During active air fuel ratio control, the following conditions (a) and (b) are met for a certain period of time (2 trip detection logic): (a) Heated oxygen sensor voltage does not increase to 0.71 V or higher. (b) Heated oxygen sensor voltage does not decrease to less than 0.21 V.	· Heated oxygen sensor (bank 2 sensor 2) circuit · Heated oxygen sensor (bank 2 sensor 2) · Air fuel ratio sensor (bank 2 sensor 1) · Gas leak from exhaust system · Fuel pressure · Fuel system · PCV valve and hose · Intake system	Comes on	DTC stored	SAE Code: P0156
P015617	O2 Sensor Circuit Bank 2 Sensor 2 Circuit Voltage Above Threshold	Low voltage (open): During active air fuel ratio control, following conditions (a) and (b) met for certain period of time (2 trip detection logic) (a) Heated oxygen sensor voltage output less than 0.21 V (b) Target air fuel ratio rich	· Heated oxygen sensor (bank 2 sensor 2) circuit · Heated oxygen sensor (bank 2 sensor 2) · Air fuel ratio sensor (bank 2 sensor 1) · Gas leak from exhaust system	Comes on	DTC stored	SAE Code: P0157
P01561C	O2 Sensor Circuit Bank 2 Sensor 2 Circuit Voltage Out of Range	High voltage (short): During active air fuel ratio control, the following conditions (a) and (b) are met for a certain period of time (2 trip detection logic): (a) Heated oxygen sensor voltage output is higher than 0.71 V. (b) Target air fuel ratio is lean.	· Heated oxygen sensor (bank 2 sensor 2) circuit · Heated oxygen sensor (bank 2 sensor 2) · Air fuel ratio sensor (bank 2 sensor 1) · ECM	Comes on	DTC stored	SAE Code: P0158

MONITOR DESCRIPTION

Active Air fuel Ratio Control

The ECM usually performs air fuel ratio feedback control so that the air fuel ratio sensor output indicates a near stoichiometric air fuel level. This vehicle includes active air fuel ratio control in addition to regular air fuel ratio control. The ECM performs active air fuel ratio control to detect any deterioration in the Three-Way Catalytic Converter (TWC) and heated oxygen sensor malfunctions (refer to the diagram below).

Active air fuel ratio control is performed for approximately 30 seconds while driving with a warm engine. During active air fuel ratio control, the air fuel ratio is forcibly regulated to become lean or rich by the ECM. If the ECM detects a malfunction, a DTC is stored.

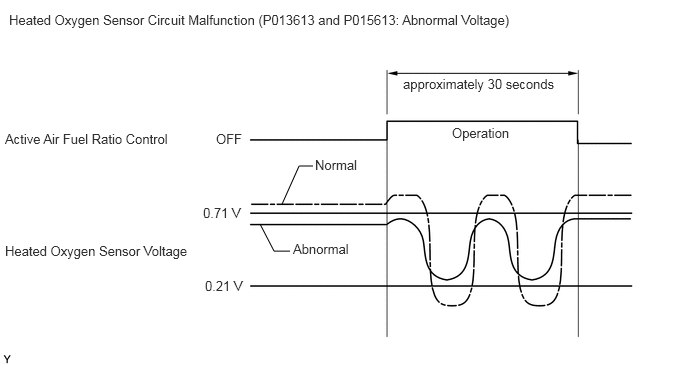

Abnormal Voltage Output of Heated Oxygen Sensor (DTCs P013613 and P015613)

While the ECM is performing active air fuel ratio control, the air fuel ratio is forcibly regulated to become rich or lean. If the sensor is not functioning properly, the voltage output variation is small. For example, when the heated oxygen sensor voltage does not increase to 0.71 V or higher during active air fuel ratio control, the ECM determines that the sensor voltage output is abnormal and stores DTC P013613 or P015613.

2.938,2.125 3.115,1.729 3.115,1.729 3.26,1.729 false 2.708,2.333 2.854,2.615 2.854,2.615 3.021,2.615 false 0.094,0.125 5.479,0.344 5.385,0.219 10 false Heated Oxygen Sensor Circuit Malfunction (P013613 and P015613: Abnormal Voltage) 4.198,0.792 5.906,1.042 1.708,0.25 10 false approximately 30 seconds 4.708,1.302 5.469,1.542 0.76,0.24 10 false Operation 3.281,1.635 3.885,1.875 0.604,0.24 10 false Normal 3.052,2.51 3.813,2.833 0.76,0.323 10 false Abnormal 2.25,1.365 2.677,1.594 0.427,0.229 10 false OFF 0.052,1.365 1.948,1.583 1.896,0.219 10 false Active Air Fuel Ratio Control 0.052,2.531 2.052,2.802 2,0.271 10 false Heated Oxygen Sensor Voltage 2.115,2.135 2.677,2.385 0.563,0.25 10 false 0.71 V 2.135,2.896 2.698,3.135 0.563,0.24 10 false 0.21 V

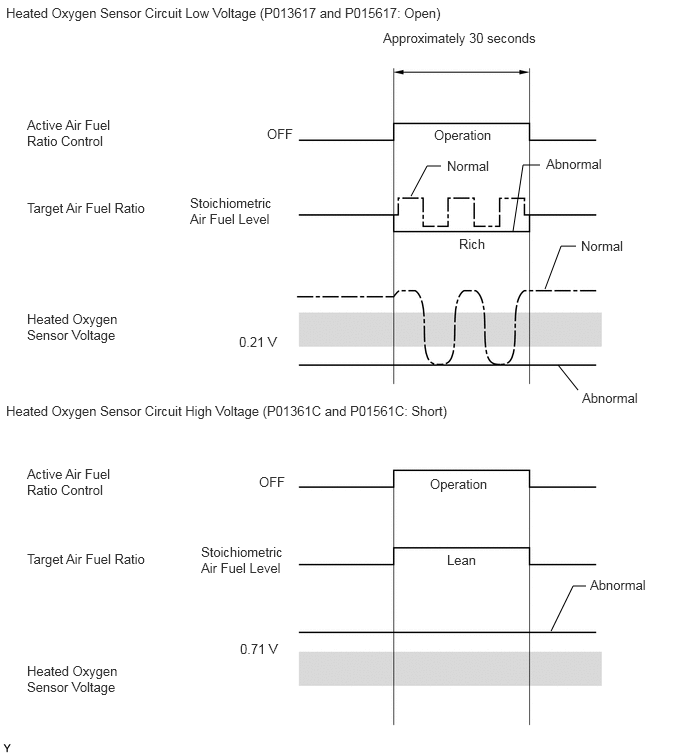

Open in Heated Oxygen Sensor Circuit (DTCs P013617 and P01361C or P015617 and P01561C)

During active air fuel ratio control, the ECM calculates the Oxygen Storage Capacity (OSC)* of the Three-Way Catalytic Converter (TWC) by forcibly regulating the air fuel ratio to become rich or lean.

If the heated oxygen sensor has an open circuit, or the voltage output of the sensor noticeably decreases, the OSC indicates an extraordinarily high value. Even if the ECM attempts to continue regulating the air fuel ratio to become rich or lean, the heated oxygen sensor output does not change.

While performing active air fuel ratio control, when the target air fuel ratio is rich and the heated oxygen sensor voltage output is less than 0.21 V (lean), the ECM interprets this as an abnormally low sensor output voltage and stores DTC P013617 or P015617. When the target air fuel ratio is lean and the voltage output is higher than 0.71 V (rich) during active air fuel ratio control, the ECM determines that the sensor voltage output is abnormally high and stores DTC P01361C or P01561C.

HINT:: *: The TWC has the capability to store oxygen. The OSC and the emission purification capacity of the TWC are mutually related. The ECM determines whether the catalyst has deteriorated based on the calculated OSC value.; Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>P042000201902,999999,_51,_078720,_0381907,RM100000001G2UK,P042000

5.813,3.802 6.021,4.063 false 4.281,2.042 4.448,1.729 false 4.448,1.729 4.594,1.729 false 5.344,2.406 5.448,1.719 false 5.448,1.719 5.625,1.719 false 5.677,3.01 5.844,2.563 false 5.844,2.563 6,2.563 false 5.74,6.573 5.969,6.104 false 5.969,6.104 6.104,6.104 false 0.063,0.052 4.865,0.292 4.802,0.24 10 false Heated Oxygen Sensor Circuit Low Voltage (P013617 and P015617: Open) 0.281,1.219 1.177,1.688 0.896,0.469 10 false Active Air Fuel Ratio Control 0.281,3.24 1.25,3.75 0.969,0.51 10 false Heated Oxygen Sensor Voltage 0.281,2.083 1.688,2.375 1.406,0.292 10 false Target Air Fuel Ratio 1.979,2.031 2.938,2.396 0.958,0.365 10 false Stoichiometric Air Fuel Level 2.781,1.313 3.146,1.51 0.365,0.198 10 false OFF 2.49,3.479 2.979,3.677 0.49,0.198 10 false 0.21 V 0.063,4.198 4.875,4.448 4.813,0.25 10 false Heated Oxygen Sensor Circuit High Voltage (P01361C and P01561C: Short) 0.281,4.854 1.198,5.271 0.917,0.417 10 false Active Air Fuel Ratio Control 0.281,6.906 1.25,7.354 0.969,0.448 10 false Heated Oxygen Sensor Voltage 0.281,5.74 1.677,6.031 1.396,0.292 10 false Target Air Fuel Ratio 2.094,5.667 3.042,6.031 0.948,0.365 10 false Stoichiometric Air Fuel Level 2.698,4.938 3.052,5.135 0.354,0.198 10 false OFF 3.99,0.313 5.646,0.51 1.656,0.198 10 false Approximately 30 seconds 4.521,1.323 5.281,1.521 0.76,0.198 10 false Operation 4.479,4.958 5.177,5.156 0.698,0.198 10 false Operation 4.656,5.75 5.052,5.948 0.396,0.198 10 false Lean 4.656,1.646 5.219,1.844 0.563,0.198 10 false Normal 6.146,6.01 6.833,6.208 0.688,0.198 10 false Abnormal 5.688,1.625 6.333,1.823 0.646,0.198 10 false Abnormal 6.063,4.063 6.802,4.26 0.74,0.198 10 false Abnormal 6.052,2.479 6.615,2.677 0.563,0.198 10 false Normal 4.781,2.458 5.146,2.656 0.365,0.198 10 false Rich 2.5,6.677 2.99,6.875 0.49,0.198 10 false 0.71 V

MONITOR STRATEGY

Required Sensors/Components (Main)	Heated oxygen sensor (sensor 2)
Required Sensors/Components (Related)	Crankshaft position sensor Engine coolant temperature sensor Mass air flow meter sub-assembly Throttle position sensor Air fuel ratio sensor
Frequency of Operation	Once per driving cycle

TYPICAL ENABLING CONDITIONS

Active air fuel ratio control	Executing
Active air fuel ratio control begins when all of the following conditions met	-
Battery voltage	11 V or higher
Engine coolant temperature	75°C (167°F) or higher
Idling	Off
Engine speed	Less than 3500 rpm
Air fuel ratio sensor status	Activated
Fuel system status	Closed loop
Engine load	10% or higher, and less than 100%

TYPICAL MALFUNCTION THRESHOLDS

P0136 and P0156: Heated Oxygen Sensor Voltage Check (Voltage Malfunction)
Either of following conditions is met	1 or 2
1. Both of following conditions are met	-
(a) Commanded air fuel ratio	14.3 or less
(b) Heated oxygen sensor voltage	0.21 V or higher, and less than 0.71 V
2. Both of following conditions are met	-
(c) Commanded air fuel ratio	14.8 or more
(d) Heated oxygen sensor voltage	0.21 V or higher, and less than 0.71 V

P0137 and P0157: Heated Oxygen Sensor Voltage Check (Low Voltage)
Both of following conditions are met	-
(a) Commanded air fuel ratio	14.3 or less
(b) Heated oxygen sensor voltage	Less than 0.21 V

P0138 and P0158: Heated Oxygen Sensor Voltage Check (High Voltage)
Both of following conditions are met	-
(a) Commanded air fuel ratio	14.8 or more
(b) Heated oxygen sensor voltage	Higher than 0.71 V

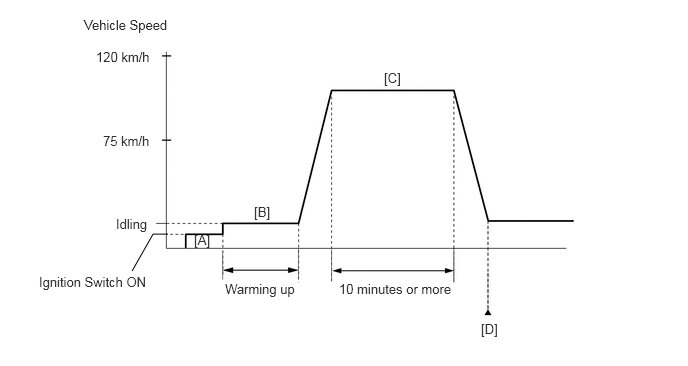

CONFIRMATION DRIVING PATTERN

HINT:: ·

This confirmation driving pattern is used in the "Perform Confirmation Driving Pattern" procedure of the following diagnostic troubleshooting procedure.

·

Performing this confirmation driving pattern will activate the heated oxygen sensor monitor (The catalyst monitor is performed simultaneously). This is very useful for verifying the completion of a repair.

1.375,2.823 1.594,2.438 1.594,2.438 1.75,2.438 false 1,0.51 2.229,0.708 1.229,0.198 10 false 120 km/h 1.073,1.385 2.302,1.583 1.229,0.198 10 false 75 km/h 1.208,2.25 2.292,2.458 1.083,0.208 10 false Idling 0.406,2.854 1.885,3.135 1.479,0.281 10 false Ignition Switch ON 2.021,2.417 3.25,2.615 1.229,0.198 10 false [A] 2.646,2.125 3.333,2.469 0.688,0.344 10 false [B] 4,0.729 4.469,1 0.469,0.271 10 false [C] 2.344,2.927 3.573,3.125 1.229,0.198 10 false Warming up 3.531,2.927 4.76,3.125 1.229,0.198 10 false 10 minutes or more 5.01,3.344 5.948,3.563 0.938,0.219 10 false [D] 0.875,0.177 2.104,0.375 1.229,0.198 10 false Vehicle Speed

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

Turn the ignition switch off and wait for at least 30 seconds.

Turn the ignition switch to ON [A].

Turn the GTS on.

Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].

With the transmission in 5th gear or higher, drive the vehicle at 75 to 120 km/h (47 to 75 mph) for 10 minutes or more [C].

CAUTION:: When performing the confirmation driving pattern, obey all speed limits and traffic laws.

10.

Enter the following menus: Powertrain / Engine / Trouble Codes [D].

11.

Read the pending DTCs.

HINT:: ·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.

12.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

13.

Input the DTC: P013613, P013617, P01361C, P015613, P015617 or P01561C.

14.

Check the DTC judgment result.

GTS Display	Description
NORMAL	· DTC judgment completed · System normal
ABNORMAL	· DTC judgment completed · System abnormal
INCOMPLETE	· DTC judgment not completed · Perform driving pattern after confirming DTC enabling conditions

HINT:: ·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

If the judgment result is INCOMPLETE, perform steps [C] through [D] again.

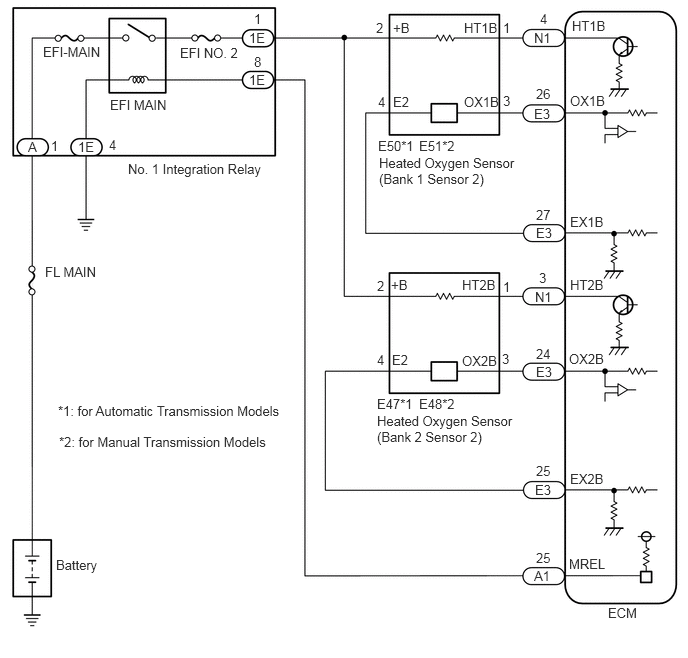

WIRING DIAGRAM

1.146,1.01 3.292,1.208 2.146,0.198 10 false EFI MAIN 4.094,0.208 4.406,0.406 0.313,0.198 10 false +B 4.094,0.979 4.406,1.177 0.313,0.198 10 false E2 3.917,0.208 4.073,0.406 0.156,0.198 10 false 2 3.938,0.979 4.094,1.177 0.156,0.198 10 false 4 5.24,2.906 5.396,3.104 0.156,0.198 10 false 1 5.24,0.969 5.375,1.188 0.135,0.219 10 false 3 4.833,0.208 5.448,0.406 0.615,0.198 10 false HT1B 4.833,0.979 5.448,1.177 0.615,0.198 10 false OX1B 5.583,2.344 6.042,2.542 0.458,0.198 10 false E3 5.563,0.313 6.021,0.51 0.458,0.198 10 false N1 5.563,1.104 6.021,1.302 0.458,0.198 10 false E3 5.573,3.01 6.031,3.208 0.458,0.198 10 false N1 5.583,3.792 6.042,3.99 0.458,0.198 10 false E3 5.573,5.021 6.031,5.219 0.458,0.198 10 false E3 5.563,5.917 6.021,6.115 0.458,0.198 10 false A1 5.583,5.729 5.896,5.927 0.313,0.198 10 false 25 5.583,4.823 5.896,5.021 0.313,0.198 10 false 25 5.583,3.604 5.896,3.802 0.313,0.198 10 false 24 5.615,2.813 5.927,3.01 0.313,0.198 10 false 3 5.583,2.156 5.896,2.354 0.313,0.198 10 false 27 5.583,0.896 5.896,1.094 0.313,0.198 10 false 26 5.625,0.115 5.938,0.313 0.313,0.198 10 false 4 4.073,2.885 4.385,3.083 0.313,0.198 10 false +B 4.083,3.667 4.396,3.865 0.313,0.198 10 false E2 4.813,2.885 5.427,3.083 0.615,0.198 10 false HT2B 4.813,3.677 5.427,3.875 0.615,0.198 10 false OX2B 3.927,2.896 4.083,3.094 0.156,0.198 10 false 2 3.927,3.667 4.083,3.865 0.156,0.198 10 false 4 5.24,0.208 5.396,0.406 0.156,0.198 10 false 1 5.229,3.656 5.365,3.875 0.135,0.219 10 false 3 5.958,0.188 6.573,0.385 0.615,0.198 10 false HT1B 5.938,0.969 6.552,1.167 0.615,0.198 10 false OX1B 5.938,2.229 6.552,2.427 0.615,0.198 10 false EX1B 5.938,2.885 6.552,3.083 0.615,0.198 10 false HT2B 5.927,3.656 6.542,3.854 0.615,0.198 10 false OX2B 5.938,4.906 6.552,5.104 0.615,0.198 10 false EX2B 5.927,5.792 6.542,5.99 0.615,0.198 10 false MREL 6.333,6.302 6.792,6.5 0.458,0.198 10 false ECM 0.583,5.802 1.656,6 1.073,0.198 10 false Battery 3.927,4.125 4.385,4.323 0.458,0.198 10 false E47*1 3.927,4.302 5.396,5.229 1.469,0.927 10 false Heated Oxygen Sensor (Bank 2 Sensor 2) 3.938,1.438 4.396,1.635 0.458,0.198 10 false E50*1 3.948,1.615 5.417,2.542 1.469,0.927 10 false Heated Oxygen Sensor (Bank 1 Sensor 2) 0.448,0.458 1.083,0.885 0.635,0.427 10 false EFI-MAIN 1.875,0.469 3.104,0.667 1.229,0.198 10 false EFI NO. 2 0.531,1.438 0.688,1.635 0.156,0.198 10 false 1 1.135,1.427 1.292,1.625 0.156,0.198 10 false 4 2.646,0.115 2.958,0.313 0.313,0.198 10 false 1 2.646,0.563 2.802,0.76 0.156,0.198 10 false 8 1.333,1.677 2.844,1.906 1.51,0.229 10 false No. 1 Integration Relay 0.292,1.448 0.531,1.646 0.24,0.198 10 false A 0.813,1.448 1.125,1.646 0.313,0.198 10 false 1E 2.594,0.313 2.906,0.51 0.313,0.198 10 false 1E 2.594,0.75 2.906,0.948 0.313,0.198 10 false 1E 0.469,2.75 2.615,2.948 2.146,0.198 10 false FL MAIN 0.604,4.198 3.021,4.479 2.417,0.281 10 false *1: for Automatic Transmission Models 0.615,4.521 3.031,4.802 2.417,0.281 10 false *2: for Manual Transmission Models 4.365,1.438 4.823,1.635 0.458,0.198 10 false E51*2 4.365,4.125 4.823,4.323 0.458,0.198 10 false E48*2

CAUTION / NOTICE / HINT

HINT:: Malfunctioning areas can be identified by performing the Control the Injection Volume for A/F Sensor function provided in the Active Test. The Control the Injection Volume for A/F Sensor function can help to determine whether the air fuel ratio sensor, heated oxygen sensor and other potential trouble areas are malfunctioning.; The following instructions describe how to conduct the Control the Injection Volume for A/F Sensor operation using the GTS.

Connect the GTS to the DLC3.

Start the engine.

Turn the GTS on.

Warm up the engine and run the engine at an engine speed of 2500 rpm for approximately 90 seconds.

Enter the following menus: Powertrain / Engine / Active Test / Control the Injection Volume for A/F Sensor / Data List / A/F (O2) Sensor Voltage B1S1 and O2 Sensor Voltage B1S2 or A/F (O2) Sensor Voltage B2S1 and O2 Sensor Voltage B2S2.

Perform the Active Test with the engine idling (change the fuel injection volume).

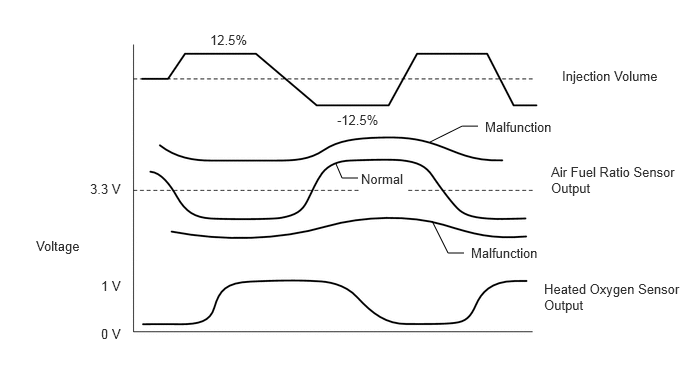

Monitor the output voltages of the air fuel ratio and heated oxygen sensors (A/F (O2) Sensor Voltage B1S1 and O2 Sensor Voltage B1S2 or A/F (O2) Sensor Voltage B2S1 and O2 Sensor Voltage B2S2) displayed on the GTS.

HINT:: ·

The Control the Injection Volume for A/F Sensor operation lowers the fuel injection volume by 12.5% or increases the injection volume by 12.5%.

·

Each sensor reacts in accordance with increases and decreases in the fuel injection volume.

Standard
GTS Display (Sensor)	Injection Volume	Status	Voltage
A/F (O2) Sensor Voltage B1S1 A/F (O2) Sensor Voltage B2S1 (Air fuel ratio)	12.5%	Rich	Below 3.1 V
	-12.5%	Lean	Higher than 3.4 V
O2 Sensor Voltage B1S2 O2 Sensor Voltage B2S2 (Heated oxygen)	12.5%	Rich	Higher than 0.55 V
	-12.5%	Lean	Below 0.4 V

NOTICE:: The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds.

5.792,3.625 7.115,3.896 1.323,0.271 10 false - Air fuel ratio sensor 3.823,4.927 4.531,5.104 0.708,0.177 8 false Below 0.4 V 3.208,4.396 4.333,4.615 1.125,0.219 10 false Output Voltage 3.25,3.365 4.542,3.615 1.292,0.25 10 false Injection Volume 3.229,1.292 4.521,1.542 1.292,0.25 10 false Injection Volume 3.24,2.313 4.333,2.521 1.094,0.208 10 false Output Voltage 0.625,1.292 1.917,1.542 1.292,0.25 10 false Injection Volume 0.625,3.365 1.917,3.615 1.292,0.25 10 false Injection Volume 0.594,5.438 1.885,5.688 1.292,0.25 10 false Injection Volume 0.604,7.49 1.896,7.74 1.292,0.25 10 false Injection Volume 3.25,7.49 4.542,7.74 1.292,0.25 10 false Injection Volume 3.25,5.438 4.542,5.688 1.292,0.25 10 false Injection Volume 0.635,2.302 1.823,2.51 1.188,0.208 10 false Output Voltage 0.625,4.396 1.792,4.646 1.167,0.25 10 false Output Voltage 0.552,6.479 1.719,6.729 1.167,0.25 10 false Output Voltage 0.573,8.563 1.74,8.813 1.167,0.25 10 false Output Voltage 3.24,8.563 4.406,8.813 1.167,0.25 10 false Output Voltage 3.25,6.479 4.417,6.729 1.167,0.25 10 false Output Voltage 3.51,4.698 4.542,4.885 1.031,0.188 8 false Higher than 0.55 V 0.927,2.646 1.958,2.833 1.031,0.188 8 false Higher than 3.4 V 1.177,2.885 1.927,3.073 0.75,0.188 8 false Below 3.1 V 1.531,1.594 1.979,1.781 0.448,0.188 8 false 12.5% 1.479,1.833 1.927,2.021 0.448,0.188 8 false -12.5% 3.5,2.604 4.531,2.792 1.031,0.188 8 false Higher than 0.55 V 3.813,2.844 4.521,3.021 0.708,0.177 8 false Below 0.4 V 4.156,1.594 4.604,1.781 0.448,0.188 8 false 12.5% 4.115,1.833 4.563,2.021 0.448,0.188 8 false -12.5% 4.146,3.729 4.594,3.917 0.448,0.188 8 false 12.5% 4.104,3.917 4.552,4.104 0.448,0.188 8 false -12.5% 4.104,5.958 4.552,6.146 0.448,0.188 8 false -12.5% 4.104,8.021 4.552,8.208 0.448,0.188 8 false -12.5% 4.156,5.74 4.604,5.927 0.448,0.188 8 false 12.5% 4.156,7.813 4.604,8 0.448,0.188 8 false 12.5% 1.49,7.813 1.938,8 0.448,0.188 8 false 12.5% 1.49,5.75 1.938,5.938 0.448,0.188 8 false 12.5% 1.5,3.677 1.948,3.865 0.448,0.188 8 false 12.5% 1.448,3.896 1.896,4.083 0.448,0.188 8 false -12.5% 1.448,5.948 1.896,6.135 0.448,0.188 8 false -12.5% 1.438,8.021 1.885,8.208 0.448,0.188 8 false -12.5% 0.844,4.802 2.042,5.052 1.198,0.25 8 false Almost no reaction 0.854,8.938 2.052,9.188 1.198,0.25 8 false Almost no reaction 3.5,8.938 4.698,9.188 1.198,0.25 8 false Almost no reaction 3.49,6.865 4.688,7.115 1.198,0.25 8 false Almost no reaction 0.917,6.771 1.948,6.958 1.031,0.188 8 false Higher than 3.4 V 1.167,7.021 1.917,7.208 0.75,0.188 8 false Below 3.1 V 0.24,2.083 0.396,2.281 0.156,0.198 10 false 1 0.24,4.25 0.396,4.448 0.156,0.198 10 false 2 0.25,6.333 0.406,6.531 0.156,0.198 10 false 3 0.24,8.417 0.396,8.615 0.156,0.198 10 false 4 0.125,0.688 0.573,0.938 0.448,0.25 10 false Case 0.792,0.583 2.802,0.969 2.01,0.385 10 false Air Fuel Ratio Sensor (Sensor 1) Output Voltage 3.5,0.583 5.594,1.031 2.094,0.448 10 false Heated Oxygen Sensor (Sensor 2) Output Voltage 5.969,0.583 7.01,1 1.042,0.417 10 false Main Suspected Trouble Area 6.396,2.115 6.552,2.313 0.156,0.198 10 false - 5.802,4.031 7.125,4.469 1.323,0.438 10 false - Air fuel ratio sensor heater 5.802,4.635 7.125,5.073 1.323,0.438 10 false - Air fuel ratio sensor circuit 5.917,5.604 6.969,5.979 1.052,0.375 10 false - Heated oxygen sensor 5.927,6.198 6.969,6.625 1.042,0.427 10 false - Heated oxygen sensor heater 5.927,6.792 6.969,7.229 1.042,0.438 10 false - Heated oxygen sensor circuit 5.927,7.469 6.813,7.875 0.885,0.406 10 false - Fuel injector assembly 5.917,8.083 7.073,8.417 1.156,0.333 10 false - Fuel pressure 5.917,8.531 7.01,9.313 1.094,0.781 10 false - Gas leak from exhaust system 2.552,2.75 3,2.938 0.448,0.188 8 false OK 2.5,4.719 2.948,4.906 0.448,0.188 8 false NG 2.552,6.865 3,7.052 0.448,0.188 8 false OK 2.5,8.844 2.948,9.031 0.448,0.188 8 false NG 5.167,2.708 5.615,2.896 0.448,0.188 8 false OK 5.167,4.813 5.615,5 0.448,0.188 8 false OK 5.135,8.854 5.583,9.042 0.448,0.188 8 false NG 5.135,6.771 5.583,6.958 0.448,0.188 8 false NG

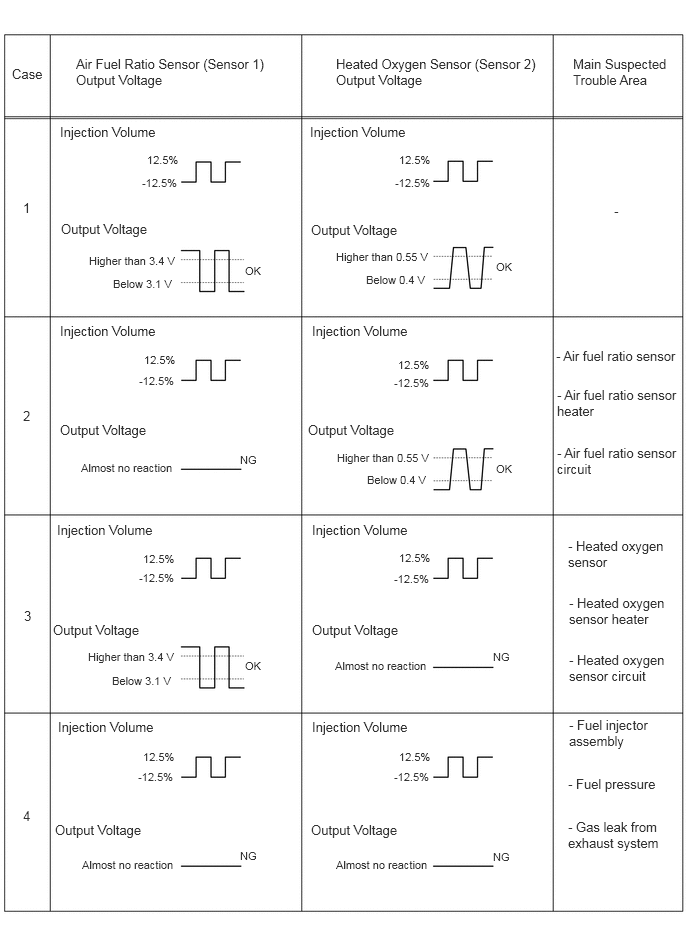

Following the Control the Injection Volume for A/F Sensor procedure enables technicians to check and graph the voltage outputs of both the air fuel ratio and heated oxygen sensors.

To display the graph, enter the following menus: Powertrain / Engine / Active Test / Control the Injection Volume for A/F Sensor / Data List / A/F (O2) Sensor Voltage B1S1 and O2 Sensor Voltage B1S2 or A/F (O2) Sensor Voltage B2S1 and O2 Sensor Voltage B2S2; and then press the graph button on the Data List view.

NOTICE:: Inspect the fuses for circuits related to this system before performing the following procedure.

HINT:: ·

Bank 1 refers to the bank that includes the No. 1 cylinder*.

*: The No. 1 cylinder is the cylinder which is farthest from the transmission.

·

Bank 2 refers to the bank that does not include the No. 1 cylinder.

·

Sensor 1 refers to the sensor closest to the engine assembly.

·

Sensor 2 refers to the sensor farthest away from the engine assembly.

·

Read Freeze Frame Data using the GTS. Freeze Frame Data records the engine condition when malfunctions are detected. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.READ OUTPUT DTC (DTC P013613, P013617, P01361C, P015613, P015617 OR P01561C)

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Enter the following menus: Powertrain / Engine / Trouble Codes.

Read the DTCs.

Powertrain > Engine > Trouble Codes: 50001 372

Result:

Result	Proceed to
P01361C or P01561C is output	A
P013617 or P015617 is output	B
P013613 or P015613 is output	C
P013613, P013617, P01361C, P015613, P015617 or P01561C and other DTCs are output	D

HINT:: If any DTCs other than P013613, P013617, P01361C, P015613, P015617 or P01561C are output, troubleshoot those DTCs first.

2.READ VALUE USING GTS (O2 SENSOR VOLTAGE)

13.CHECK FOR EXHAUST GAS LEAK

7.PERFORM ACTIVE TEST USING GTS (CONTROL THE INJECTION VOLUME FOR A/F SENSOR)

GO TO DTC CHART

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>DIAGNOSTIC TROUBLE CODE CHART201902,201906,_51,_078720,_0381907,RM100000001G2WW,201906,202208,_51,_078720,_0381907,RM100000001IFLS,202208,202310,_51,_078720,_0381907,RM1000000024WGN,202310,999999,_51,_078720,_0381907,RM100000002G57D,

2.READ VALUE USING GTS (O2 SENSOR VOLTAGE)

Connect the GTS to the DLC3.

Start the engine.

Turn the GTS on.

Enter the following menus: Powertrain / Engine / Data List / O2 Sensor Voltage B1S2 or O2 Sensor Voltage B2S2.

Powertrain > Engine > Data List

Tester Display
O2 Sensor Voltage B1S2
O2 Sensor Voltage B2S2

50003 372 218,510

Allow the engine to idle.

Read the heated oxygen sensor output voltage while idling.

Result:

Heated Oxygen Sensor Output Voltage	Proceed to
1.0 V or higher	A
Less than 1.0 V	B

3.INSPECT HEATED OXYGEN SENSOR (CHECK FOR SHORT)

5.PERFORM ACTIVE TEST USING GTS (CONTROL THE INJECTION VOLUME FOR A/F SENSOR)

3.INSPECT HEATED OXYGEN SENSOR (CHECK FOR SHORT)

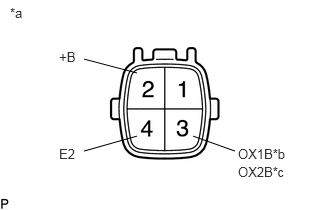

2.448,1.573 2.01,1.417 false 0.875,0.615 1.427,0.76 false 0.875,1.573 1.427,1.417 false 0.104,0.052 0.333,0.229 0.229,0.177 10 false *a 0.615,0.51 0.99,0.802 0.375,0.292 10 false +B 0.615,1.521 1.031,1.781 0.417,0.26 10 false E2 2.479,1.708 3.115,1.885 0.635,0.177 10 false OX2B*c 2.479,1.521 3.115,1.698 0.635,0.177 10 false OX1B*b

*a	Component without harness connected (Heated Oxygen Sensor)
*b	Bank 1
*c	Bank 2

Disconnect the heated oxygen sensor connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
2 (+B) - 4 (E2)	Always	10 kΩ or higher
2 (+B) - 3 (OX1B)	Always	10 kΩ or higher
2 (+B) - 4 (E2)	Always	10 kΩ or higher
2 (+B) - 3 (OX2B)	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

4.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT)

REPLACE HEATED OXYGEN SENSOR

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>HEATED OXYGEN SENSOR>REMOVAL201902,999999,_51,_078720,_0381927,RM100000001G2Z5,

4.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT)

Turn the ignition switch off and wait for 5 minutes or more.

Disconnect the ECM connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
N1-4 (HT1B) - E3-26 (OX1B)	Always	10 kΩ or higher
N1-3 (HT2B) - E3-24 (OX2B)	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE ECM

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>ECM>REMOVAL201902,201906,_51,_078720,_0381918,RM100000001G2Y7,201906,202310,_51,_078720,_0381918,RM100000001IOND,202310,999999,_51,_078720,_0381918,RM100000002G3CO,

REPAIR OR REPLACE HARNESS OR CONNECTOR (HEATED OXYGEN SENSOR - ECM)

5.PERFORM ACTIVE TEST USING GTS (CONTROL THE INJECTION VOLUME FOR A/F SENSOR)

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.

Enter the following menus: Powertrain / Engine / Active Test / Control the Injection Volume for A/F Sensor / Data List / Coolant Temperature, A/F (O2) Sensor Voltage B1S1 and O2 Sensor Voltage B1S2 or A/F (O2) Sensor Voltage B2S1 and O2 Sensor Voltage B2S2.

Powertrain > Engine > Active Test

Active Test Display
Control the Injection Volume for A/F Sensor

Data List Display
Coolant Temperature
A/F (O2) Sensor Voltage B1S1
A/F (O2) Sensor Voltage B2S1
O2 Sensor Voltage B1S2
O2 Sensor Voltage B2S2

50004 372 8 205,225,512,218,510

Change the fuel injection volume using the GTS, and monitor the voltage output of air fuel ratio sensor (A/F (O2) Sensor Voltage B1S1, A/F (O2) Sensor Voltage B2S1) and heated oxygen sensor (O2 Sensor Voltage B1S2, O2 Sensor Voltage B2S2) displayed on the GTS.

HINT:: ·

The Active Test "Control the Injection Volume for A/F Sensor" can be used to lower the fuel injection volume by 12.5% or increases the injection volume by 12.5%.

·

The air fuel ratio sensor is displayed as A/F (O2) Sensor Voltage B1S1 or A/F (O2) Sensor Voltage B2S1, and the heated oxygen sensor is displayed as O2 Sensor Voltage B1S2 or O2 Sensor Voltage B2S2 on the GTS.

·

The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds.

·

If the sensor output voltage does not change (almost no reaction) while performing the Active Test, the sensor may be malfunctioning.

Result:

GTS Display (Sensor)	Voltage Variation	Proceed to
A/F (O2) Sensor Voltage B1S1 or A/F (O2) Sensor Voltage B2S1 (Air fuel ratio)	Alternates between higher and less than 3.3 V	OK
	Remains at higher than 3.3 V	NG
	Remains at less than 3.3 V	NG

HINT:: A normal heated oxygen sensor voltage (O2 Sensor Voltage B1S2 or O2 Sensor Voltage B2S2) reacts in accordance with increases and decreases in fuel injection volumes. When the air fuel ratio sensor voltage (A/F (O2) Sensor Voltage B1S1 or A/F (O2) Sensor Voltage B2S1) remains at either less or higher than 3.3 V despite the heated oxygen sensor indicating a normal reaction, the air fuel ratio sensor is malfunctioning.

4.479,1.479 4.813,1.313 4.813,1.313 4.979,1.313 false 4.5,2.302 4.667,2.635 4.667,2.635 4.833,2.635 false 3.5,1.708 3.563,1.854 3.563,1.854 3.729,1.854 false 0.375,2.479 1.448,2.677 1.073,0.198 10 false Voltage 5.854,0.708 6.979,0.958 1.125,0.25 10 false Injection Volume 2.188,0.333 3.313,0.583 1.125,0.25 10 false 12.5% 3.51,1.167 4.635,1.417 1.125,0.25 10 false -12.5% 3.76,1.781 4.25,2.135 0.49,0.354 10 true Normal 5.052,1.24 6.177,1.49 1.125,0.25 10 false Malfunction 0.938,1.885 2.063,2.135 1.125,0.25 10 false 3.3 V 1.052,2.896 2.177,3.146 1.125,0.25 10 false 1 V 1.052,3.396 2.177,3.646 1.125,0.25 10 false 0 V 5.667,2.927 7.104,3.365 1.438,0.438 10 false Heated Oxygen Sensor Output 5.74,1.708 7.063,2.135 1.323,0.427 10 false Air Fuel Ratio Sensor Output 4.906,2.552 6.031,2.802 1.125,0.25 10 false Malfunction

6.INSPECT AIR FUEL RATIO SENSOR

9.REPLACE AIR FUEL RATIO SENSOR

6.INSPECT AIR FUEL RATIO SENSOR

HINT:: This air fuel ratio sensor test is to check the air fuel ratio sensor current during the fuel-cut operation. When the sensor is normal, the sensor current will indicate below 2.2 mA in this test.

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Clear the DTCs.

Powertrain > Engine > Clear DTCs: 50002 372

Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.

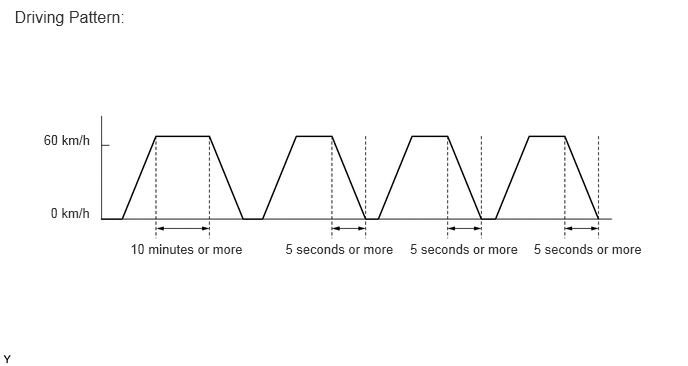

Drive the vehicle at 60 km/h (37 mph) or more for 10 minutes or more.

CAUTION:: When performing the confirmation driving pattern, obey all speed limits and traffic laws.

Stop the vehicle.

Enter the following menus: Powertrain / Engine / Data List / A/F (O2) Sensor Current B1S1 or A/F (O2) Sensor Current B2S1.

Powertrain > Engine > Data List

Tester Display
A/F (O2) Sensor Current B1S1
A/F (O2) Sensor Current B2S1

50003 372 230,432

Drive the vehicle at 60 km/h (37 mph) or more and release the accelerator pedal for at least 5 seconds without depressing the brake pedal in order to execute fuel-cut control. Perform this 3 times.

CAUTION:: When performing the confirmation driving pattern, obey all speed limits and traffic laws.

1.357,2.513 2.638,2.697 1.281,0.184 10 10 minutes or more 2.973,2.513 4.186,2.697 1.213,0.184 10 5 seconds or more 4.271,2.513 5.468,2.697 1.197,0.184 10 5 seconds or more 5.56,2.513 6.739,2.697 1.179,0.184 10 5 seconds or more 0.152,0.078 1.451,0.293 1.299,0.215 12 Driving Pattern: 0.455,1.379 1.114,1.594 0.658,0.215 10 60 km/h 0.527,2.139 1.062,2.342 0.536,0.203 10 0 km/h

Read the value of the air fuel ratio sensor current while the fuel-cut operation is performed.

Standard Current:: Less than 2.2 mA

HINT:: ·

To measure the air fuel ratio sensor current precisely, perform the fuel-cut operation as long as possible.

·

If it is difficult to measure the air fuel ratio sensor current, use the snapshot function of the GTS.

Result:

Proceed to
OK
NG

16.REPLACE HEATED OXYGEN SENSOR

9.REPLACE AIR FUEL RATIO SENSOR

7.PERFORM ACTIVE TEST USING GTS (CONTROL THE INJECTION VOLUME FOR A/F SENSOR)

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.

Enter the following menus: Powertrain / Engine / Active Test / Control the Injection Volume for A/F Sensor / Data List / Coolant Temperature, O2 Sensor Voltage B1S2 or O2 Sensor Voltage B2S2.

Powertrain > Engine > Active Test

Active Test Display
Control the Injection Volume for A/F Sensor

Data List Display
Coolant Temperature
O2 Sensor Voltage B1S2
O2 Sensor Voltage B2S2

50004 372 8 205,218,510

Change the fuel injection volume using the GTS, and monitor the voltage output of heated oxygen sensor (O2 Sensor Voltage B1S2, O2 Sensor Voltage B2S2) displayed on the GTS.

HINT:: ·

The Active Test "Control the Injection Volume for A/F Sensor" can be used to lower the fuel injection volume by 12.5% or increases the injection volume by 12.5%.

·

The heated oxygen sensor has a maximum output delay of approximately 20 seconds.

Standard Voltage:: Fluctuates between 0.4 V or less, and 0.55 V or higher.

Result:

Proceed to
OK
NG

8.PERFORM ACTIVE TEST USING GTS (CONTROL THE INJECTION VOLUME FOR A/F SENSOR)

13.CHECK FOR EXHAUST GAS LEAK

8.PERFORM ACTIVE TEST USING GTS (CONTROL THE INJECTION VOLUME FOR A/F SENSOR)

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.

Powertrain > Engine > Active Test

Active Test Display
Control the Injection Volume for A/F Sensor

Data List Display
Coolant Temperature
A/F (O2) Sensor Voltage B1S1
A/F (O2) Sensor Voltage B2S1
O2 Sensor Voltage B1S2
O2 Sensor Voltage B2S2

50004 372 8 205,225,512,218,510

HINT:: ·

The Active Test "Control the Injection Volume for A/F Sensor" can be used to lower the fuel injection volume by 12.5% or increases the injection volume by 12.5%.

·

The air fuel ratio sensor is displayed as A/F (O2) Sensor Voltage B1S1 or A/F (O2) Sensor Voltage B2S1, and the heated oxygen sensor is displayed as O2 Sensor Voltage B1S2 or O2 Sensor Voltage B2S2 on the GTS.

·

The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds.

·

If the sensor output voltage does not change (almost no reaction) while performing the Active Test, the sensor may be malfunctioning.

Result:

GTS Display (Sensor)	Voltage Variation	Proceed to
A/F (O2) Sensor Voltage B1S1 or A/F (O2) Sensor Voltage B2S1 (Air fuel ratio)	Alternates between higher and less than 3.3 V	OK
	Remains at higher than 3.3 V	NG
	Remains at less than 3.3 V	NG

HINT:: A normal heated oxygen sensor voltage (O2 Sensor Voltage B1S2 or O2 Sensor Voltage B2S2) reacts in accordance with increases and decreases in fuel injection volumes. When the air fuel ratio sensor voltage (A/F (O2) Sensor Voltage B1S1 or A/F (O2) Sensor Voltage B2S1) remains at either less or higher than 3.3 V despite the heated oxygen sensor indicating a normal reaction, the air fuel ratio sensor is malfunctioning.

CHECK ENGINE TO DETERMINE CAUSE OF EXTREMELY RICH OR LEAN ACTUAL AIR FUEL RATIO (FUEL INJECTOR ASSEMBLY, FUEL SYSTEM, INTAKE SYSTEM, ETC.)

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>P017100201902,999999,_51,_078720,_0381907,RM100000001G2W5,P017100

9.REPLACE AIR FUEL RATIO SENSOR

Replace the air fuel ratio sensor.

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>AIR FUEL RATIO SENSOR>REMOVAL201902,999999,_51,_078720,_0381926,RM100000001G2Z1,

HINT:: Perform "Inspection After Repair" after replacing the air fuel ratio sensor.; Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION201902,999999,_51,_078720,_0381907,RM100000001G2VV,

Result:

Proceed to
NEXT

10.PERFORM CONFIRMATION DRIVING PATTERN

Perform the Confirmation Driving Pattern.

Result:

Proceed to
NEXT

11.CLEAR DTC

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Clear the DTCs.

Powertrain > Engine > Clear DTCs: 50002 372

Turn the ignition switch off and wait for at least 30 seconds.

Result:

Proceed to
NEXT

12.CHECK WHETHER DTC OUTPUT RECURS (DTC P013613 OR P015613)

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility

Tester Display
All Readiness

50005 372 20

Input the DTC: P013613 or P015613.

Check that the DTC monitor is NORMAL. If the DTC monitor is INCOMPLETE, perform the drive pattern again but increase the vehicle speed.

Result:

Result	Proceed to
NORMAL (DTCs are not output)	A
ABNORMAL (DTC P013613 or P015613 is output)	B

END

REPLACE HEATED OXYGEN SENSOR

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>HEATED OXYGEN SENSOR>REMOVAL201902,999999,_51,_078720,_0381927,RM100000001G2Z5,

13.CHECK FOR EXHAUST GAS LEAK

Check for exhaust gas leaks.

OK:: No gas leaks in exhaust system.

HINT:: Perform "Inspection After Repair" after repairing or replacing the exhaust system.; Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION201902,999999,_51,_078720,_0381907,RM100000001G2VV,

Result:

Proceed to
OK
NG

14.INSPECT HEATED OXYGEN SENSOR (HEATER RESISTANCE)

REPAIR OR REPLACE EXHAUST SYSTEM

14.INSPECT HEATED OXYGEN SENSOR (HEATER RESISTANCE)

Inspect the heated oxygen sensor.

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>HEATED OXYGEN SENSOR>INSPECTION201902,999999,_51,_078720,_0381927,RM100000001G2Z3,

Result:

Proceed to
OK
NG

15.CHECK HARNESS AND CONNECTOR (HEATED OXYGEN SENSOR - ECM)

REPLACE HEATED OXYGEN SENSOR

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>HEATED OXYGEN SENSOR>REMOVAL201902,999999,_51,_078720,_0381927,RM100000001G2Z5,

15.CHECK HARNESS AND CONNECTOR (HEATED OXYGEN SENSOR - ECM)

Disconnect the heated oxygen sensor connector.

Disconnect the ECM connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for Automatic Transmission Models):

Tester Connection	Condition	Specified Condition
E50-1 (HT1B) - N1-4 (HT1B)	Always	Below 1 Ω
E50-3 (OX1B) - E3-26 (OX1B)	Always	Below 1 Ω
E50-4 (E2) - E3-27 (EX1B)	Always	Below 1 Ω
E47-1 (HT2B) - N1-3 (HT2B)	Always	Below 1 Ω
E47-3 (OX2B) - E3-24 (OX2B)	Always	Below 1 Ω
E47-4 (E2) - E3-25 (EX2B)	Always	Below 1 Ω
E50-1 (HT1B) or N1-4 (HT1B) - Body ground and other terminals	Always	10 kΩ or higher
E50-3 (OX1B) or E3-26 (OX1B) - Body ground and other terminals	Always	10 kΩ or higher
E47-1 (HT2B) or N1-3 (HT2B) - Body ground and other terminals	Always	10 kΩ or higher
E47-3 (OX2B) or E3-24 (OX2B) - Body ground and other terminals	Always	10 kΩ or higher

Standard Resistance (for Manual Transmission Models):

Tester Connection	Condition	Specified Condition
E51-1 (HT1B) - N1-4 (HT1B)	Always	Below 1 Ω
E51-3 (OX1B) - E3-26 (OX1B)	Always	Below 1 Ω
E51-4 (E2) - E3-27 (EX1B)	Always	Below 1 Ω
E48-1 (HT2B) - N1-3 (HT2B)	Always	Below 1 Ω
E48-3 (OX2B) - E3-24 (OX2B)	Always	Below 1 Ω
E48-4 (E2) - E3-25 (EX2B)	Always	Below 1 Ω
E51-1 (HT1B) or N1-4 (HT1B) - Body ground and other terminals	Always	10 kΩ or higher
E51-3 (OX1B) or E3-26 (OX1B) - Body ground and other terminals	Always	10 kΩ or higher
E48-1 (HT2B) or N1-3 (HT2B) - Body ground and other terminals	Always	10 kΩ or higher
E48-3 (OX2B) or E3-24 (OX2B) - Body ground and other terminals	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

16.REPLACE HEATED OXYGEN SENSOR

REPAIR OR REPLACE HARNESS OR CONNECTOR

16.REPLACE HEATED OXYGEN SENSOR

Replace the heated oxygen sensor.

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>HEATED OXYGEN SENSOR>REMOVAL201902,999999,_51,_078720,_0381927,RM100000001G2Z5,

Result:

Proceed to
NEXT

17.CLEAR DTC

Connect the GTS to the DLC3.

Turn the ignition switch to ON.

Turn the GTS on.

Clear the DTCs.

Powertrain > Engine > Clear DTCs: 50002 372

Turn the ignition switch off and wait for at least 30 seconds.

Result:

Proceed to
NEXT

18.CHECK WHETHER DTC OUTPUT RECURS (DTC P013613, P013617, P015613 OR P015617)

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility

Tester Display
All Readiness

50005 372 20

Input the DTC: P013613, P013617, P015613 or P015617.

Check that the DTC monitor is NORMAL. If the DTC monitor is INCOMPLETE, perform the drive pattern again but increase the vehicle speed.

Result:

Result	Proceed to
NORMAL (DTCs are not output)	A
ABNORMAL (DTC P013613, P013617, P015613 or P015617 is output)	B

HINT:: Perform "Inspection After Repair" after replacing the air fuel ratio sensor.; Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION201902,999999,_51,_078720,_0381907,RM100000001G2VV,

END

REPLACE AIR FUEL RATIO SENSOR

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>AIR FUEL RATIO SENSOR>REMOVAL201902,999999,_51,_078720,_0381926,RM100000001G2Z1,
