7GR-FKS ENGINE CONTROL HEATED OXYGEN SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during heated oxygen sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Gas leak from exhaust system is repaired	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201902,999999,_51,_078720,_0381907,RM100000001G2VV,)

PROCEDURE

Hide Display 17403 1.REMOVE FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL201902,999999,_51,_079308,_0385728,RM100000001GNNZ_04_0066,

Hide Display 17410 2.REMOVE FRONT EXHAUST PIPE ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST MANIFOLD>REMOVAL201902,999999,_51,_079308,_0385727,RM100000001GNNW_01_0151,

Hide Display 17450B 3.REMOVE FRONT NO. 2 EXHAUST PIPE ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST MANIFOLD>REMOVAL201902,999999,_51,_079308,_0385727,RM100000001GNNW_01_0145,

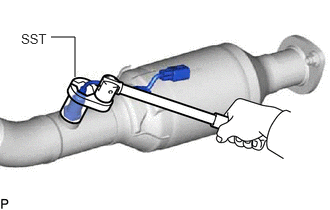

Hide Display 89465A 4.REMOVE HEATED OXYGEN SENSOR (for Bank 1)

0.531,0.385 0.781,0.385 0.781,0.385 0.781,0.802 false 0.219,0.323 0.677,0.521 0.458,0.198 10 false SST

Using SST, remove the heated oxygen sensor.

SST: 09224-00012

NOTICE:: If the heated oxygen sensor has been struck or dropped, replace it.

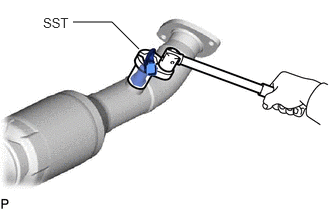

Hide Display 89465 5.REMOVE HEATED OXYGEN SENSOR (for Bank 2)

0.76,0.229 1.167,0.229 1.167,0.229 1.448,0.51 false 0.448,0.156 0.906,0.354 0.458,0.198 10 false SST

Using SST, remove the heated oxygen sensor.

SST: 09224-00012

NOTICE:: If the heated oxygen sensor has been struck or dropped, replace it.
