RM35X0E _51 Engine / Hybrid System _078720 7GR-FKS ENGINE CONTROL _0381907 SFI SYSTEM C

7GR-FKS ENGINE CONTROL  SFI SYSTEM  P044313  Evaporative Emission System Purge Control Valve "A" Circuit Open


DESCRIPTION

To reduce hydrocarbon (HC) emissions, evaporated fuel from the fuel tank is routed through a charcoal canister to the intake manifold for combustion in the cylinders.

The ECM changes the duty signals to the purge VSV (Vacuum Switching Valve for Purge Control) so that the intake amount of hydrocarbon (HC) emissions is appropriate for the driving conditions (engine load, engine speed, vehicle speed, etc.) after the engine is warmed up.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P044313 Evaporative Emission System Purge Control Valve "A" Circuit Open Both of the following conditions (a) and (b) are met (1 trip detection logic):
(a) The purge VSV operation duty signal is 5 to 95%.
(b) The target control value and actual control value do not match for 10 seconds or more.
·

Open or short in purge VSV circuit

·

Purge VSV

·

ECM


Comes on DTC stored SAE Code: P0443

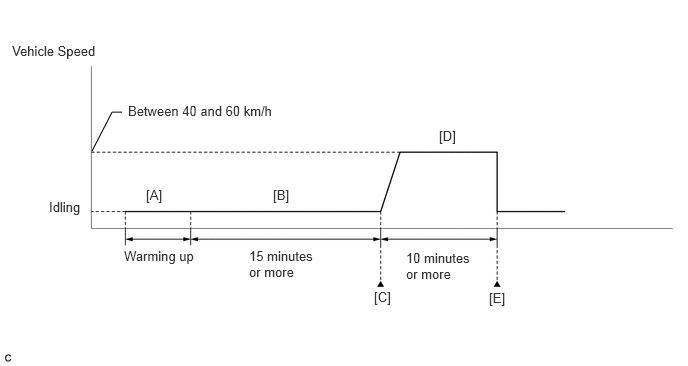

CONFIRMATION DRIVING PATTERN

A179391E19
0.958,1.573 1.167,1.167 1.167,1.167 1.271,1.167 false 1.521,1.948 1.75,2.125 0.229,0.177 10 [A] 2.844,1.948 3.073,2.125 0.229,0.177 10 [B] 3.896,3.01 4.125,3.188 0.229,0.177 10 [C] 4.573,1.333 4.802,1.51 0.229,0.177 10 [D] 5.094,3.021 5.323,3.198 0.229,0.177 10 [E] 0.51,2.073 0.885,2.26 0.375,0.188 10 Idling 4.229,2.604 5.01,2.917 0.781,0.313 10 10 minutes or more 2.594,2.583 3.375,2.896 0.781,0.313 10 15 minutes or more 1.292,2.583 2.083,2.75 0.792,0.167 10 Warming up 1.333,1.073 2.906,1.396 1.573,0.323 10 Between 40 and 60 km/h 0.125,0.448 1.073,0.615 0.948,0.167 10 Vehicle Speed

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON.

7.

Turn the GTS on.

8.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher [A].

HINT:

The A/C switch and all accessory switches should be off.


9.

Idle the engine for 15 minutes or more [B].

HINT:

Check the EVAP (Purge) VSV item in the Data List. When the value of this item is between 5 and 95%, the judgment will be performed.


10.

Enter the following menus: Powertrain / Engine / Trouble Codes [C].

11.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



12.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

13.

Input the DTC: P044313.

14.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system has a malfunction.



15.

Drive the vehicle at a constant speed between 40 and 60 km/h (25 and 37 mph) for 10 minutes or more [D].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


16.

Enter the following menus: Powertrain / Engine / Trouble Codes [E].

17.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



18.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

19.

Input the DTC: P044313.

20.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system has a malfunction.

·

If the judgment result is INCOMPLETE, perform steps [D] through [F] again.

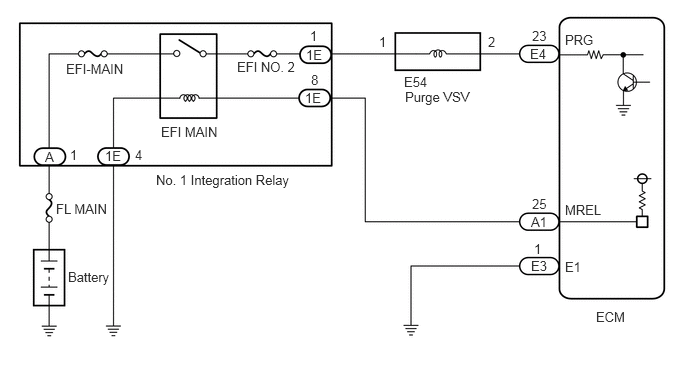

WIRING DIAGRAM

A439412E06
0.708,2.802 1.781,3 1.073,0.198 10 false Battery 1.677,1.292 2.365,1.531 0.688,0.24 10 false EFI MAIN 2.469,0.615 3.156,0.854 0.688,0.24 10 false EFI NO. 2 5.083,0.354 5.563,0.583 0.479,0.229 10 false 2 5.885,0.333 6.365,0.563 0.479,0.229 10 false PRG 5.885,2.104 6.365,2.333 0.479,0.229 10 false MREL 5.885,2.698 6.365,2.927 0.479,0.229 10 false E1 6.208,3.219 6.688,3.448 0.479,0.229 10 false ECM 0.688,0.635 1.375,0.875 0.688,0.24 10 false EFI-MAIN 0.729,1.531 0.885,1.729 0.156,0.198 10 false 1 1.406,1.531 1.563,1.729 0.156,0.198 10 false 4 3.24,0.75 3.396,0.948 0.156,0.198 10 false 8 3.229,0.292 3.385,0.49 0.156,0.198 10 false 1 5.542,0.292 5.854,0.49 0.313,0.198 10 false 23 5.542,2.042 5.854,2.24 0.313,0.198 10 false 25 5.563,2.51 5.875,2.708 0.313,0.198 10 false 1 4.219,0.927 5.594,1.125 1.375,0.198 10 false Purge VSV 1.625,1.792 3.229,2.01 1.604,0.219 10 false No. 1 Integration Relay 0.469,1.552 0.688,1.75 0.219,0.198 10 false A 1.094,1.542 1.313,1.74 0.219,0.198 10 false 1E 0.583,2.094 1.458,2.49 0.875,0.396 10 false FL MAIN 3.188,0.49 3.406,0.688 0.219,0.198 10 false 1E 3.177,0.938 3.396,1.135 0.219,0.198 10 false 1E 3.948,0.354 4.26,0.552 0.313,0.198 10 false 1 4.208,0.771 4.552,0.969 0.344,0.198 10 false E54 5.521,0.479 5.865,0.677 0.344,0.198 10 false E4 5.531,2.229 5.875,2.427 0.344,0.198 10 false A1 5.531,2.688 5.875,2.885 0.344,0.198 10 false E3

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses of circuits related to this system before performing the following procedure.


HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

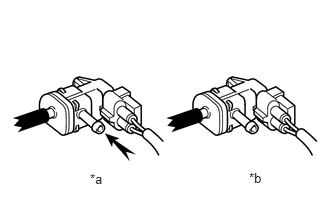

1.PERFORM ACTIVE TEST USING GTS (ACTIVATE THE EVAP PURGE VSV)
A226269C06
0.938,1.781 1.25,1.979 0.313,0.198 10 *a 2.594,1.771 2.906,1.969 0.313,0.198 10 *b
*a VSV is on
*b VSV is off


a.

Connect the GTS to the DLC3.


b.

Disconnect the fuel vapor feed hose (on the canister side) from the purge VSV.


c.

Start the engine.


d.

Turn the GTS on.


e.

Enter the following menus: Powertrain / Engine / Active Test / Activate the EVAP Purge VSV.

Powertrain > Engine > Active Test
Tester Display
Activate the EVAP Purge VSV
50004 372 1

f.

When the purge VSV is operated using the GTS, check whether the port of the purge VSV applies suction to your finger.

OK:
GTS Operation Specified Condition
ON Purge VSV port applies suction to finger
OFF Purge VSV port applies no suction to finger


HINT:

Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.



Result:
Proceed to
OK
NG



OK

NG

2.INSPECT PURGE VSV
2.INSPECT PURGE VSV

OK

3.CHECK TERMINAL VOLTAGE (POWER SOURCE OF PURGE VSV)

NG

3.CHECK TERMINAL VOLTAGE (POWER SOURCE OF PURGE VSV)
A399949C43
0.5,0.979 0.896,1.281 0.396,0.302 0.146,0.146 0.458,0.344 0.313,0.198 10 false *a 0.573,1.052 1.031,1.25 0.458,0.198 10 false E54
*a Front view of wire harness connector
(to Purge VSV)


a.

Disconnect the purge VSV connector.


b.

Turn the ignition switch to ON.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
E54-1 - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (PURGE VSV - ECM)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (NO. 1 INTEGRATION RELAY - PURGE VSV)

4.CHECK HARNESS AND CONNECTOR (PURGE VSV - ECM)
a.

Disconnect the purge VSV connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E54-2 - E4-23 (PRG) Always Below 1 Ω
E54-2 or E4-23 (PRG) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
