7GR-FKS EMISSION CONTROL PURGE VALVE INSPECTION
PROCEDURE
25860
1.INSPECT PURGE VALVE (PURGE VSV)
a.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 23 to 26 Ω
If the result is not as specified, replace the purge valve (purge VSV).
b.
0.365,0.219 0.583,0.219
0.583,0.219 0.781,0.656
true
1.469,1.354 1.469,0.865
true
1.396,1.406 1.594,1.615
0.198,0.208
10
false
*a
0.188,0.135 0.448,0.333
0.26,0.198
10
false
*b
2.01,1.521 2.229,1.719
0.219,0.198
10
false
*c
2.323,0.042 2.542,0.25
0.219,0.208
10
false
*d
| *a | Port (E) |
| *b | Port (F) |
| *c | Air |
| *d | Component without harness connected
(Purge Valve (Purge VSV)) |

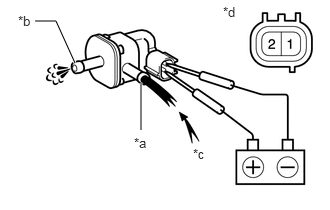

Apply battery voltage between the terminals of the purge valve (purge VSV) and check that the following occurs when blowing air into the port (E).
- OK:
Measurement Condition Specified Condition Battery voltage applied between terminals 1 and 2 Air flows from port (F) Battery voltage not applied between terminals 1 and 2 Air does not flow
If the result is not as specified, replace the purge valve (purge VSV).
