RM35X0E _51 Engine / Hybrid System _079025 7GR-FKS EMISSION CONTROL _0383271 PURGE VALVE A

7GR-FKS EMISSION CONTROL PURGE VALVE REMOVAL

PROCEDURE

Hide Display 11209 1.REMOVE V-BANK COVER SUB-ASSEMBLY (w/ Cover)

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201902,201906,_51,_078603,_0381343,RM100000001FZPC_01_0018,201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0018,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0018,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0018,

Hide Display 25860 2.REMOVE PURGE VALVE (PURGE VSV)

a.

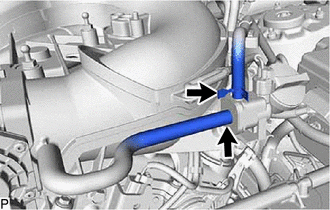

A434485

Slide the clip and disconnect the fuel vapor feed hose from the purge valve (purge VSV).

b.

Disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).

c.

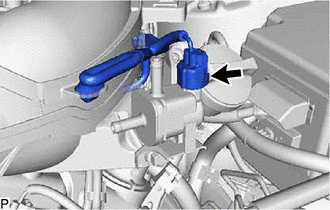

A434487

Disconnect the purge valve (purge VSV) connector.

d.

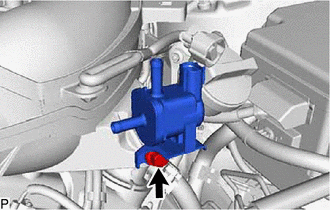

A437937

Remove the bolt and purge valve (purge VSV) from the intake air surge tank assembly.
