7GR-FKS ENGINE CONTROL  SFI SYSTEM  P070513  Transmission Range Sensor "A" Circuit Open  P070562  Transmission Range Sensor "A" Signal Compare Failure


DESCRIPTION

The park/neutral position switch assembly detects the shift lever position and sends signals to the ECM.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P070513 Transmission Range Sensor "A" Circuit Open All switches are off simultaneously for NSW, P, R, N and D for 1 minute or more (2 trip detection logic).
·

Open or short in park/neutral position switch assembly circuit

·

Park/neutral position switch assembly

·

ECM


Comes on DTC stored SAE Code: P0705
P070562 Transmission Range Sensor "A" Signal Compare Failure Either of the following conditions A or B is met (2 trip detection logic):
A. One of the following conditions (a), (b) or (c) is met for 2 seconds or more:
(a) Any 2 or more of the following signals are on simultaneously:
·

P input signal

·

R input signal

·

D input signal


(b) Any 2 or more of the following signals are on simultaneously:
·

N input signal

·

R input signal

·

D input signal


(c) Any 2 or more of the following signals are on simultaneously:
·

NSW input signal

·

R input signal

·

D input signal


B. Any of the following conditions is met for 2 seconds or more with the shift lever in S:
·

NSW input signal is on

·

P input signal is on

·

N input signal is on

·

R input signal is on


·

Open or short in park/neutral position switch assembly circuit

·

Park/neutral position switch assembly

·

Open or short in transmission control switch circuit

·

Transmission control switch (shift lock control unit assembly)

·

ECM


Comes on DTC stored SAE Code: P0705

MONITOR DESCRIPTION

These DTCs indicate a problem with the park/neutral position switch assembly and the wire harness in the park/neutral position switch assembly circuit.

The park/neutral position switch assembly detects the shift lever position and sends a signal to the ECM.

For security, the park/neutral position switch assembly detects the shift lever position so that the engine can be started only when the shift lever is in P or N.

The park/neutral position switch assembly sends a signal to the ECM according to the shift lever position (P, R, N, D or S). The ECM determines that there is a problem with the switch or related parts if it receives more than 1 position signal simultaneously. The ECM will then illuminate the MIL and store a DTC.

MONITOR STRATEGY

Required Sensors/Components Park/Neutral position switch assembly
Frequency of Operation Continuous

CONFIRMATION DRIVING PATTERN

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Move the shift lever to R and wait 2 seconds or more [B].

9.

Move the shift lever to N and wait 2 seconds or more [C].

10.

Move the shift lever to D and wait 2 seconds or more [D].

11.

Move the shift lever to S and wait 2 seconds or more [E].

12.

Move the shift lever to P and wait 2 seconds or more [F].

13.

Wait 1 minute or more [G].

14.

Enter the following menus: Powertrain / Engine / Trouble Codes [H].

15.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



16.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

17.

Input the DTC: P070513 or P070562.

18.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

If the judgment result is INCOMPLETE, perform steps [B] through [H] again.

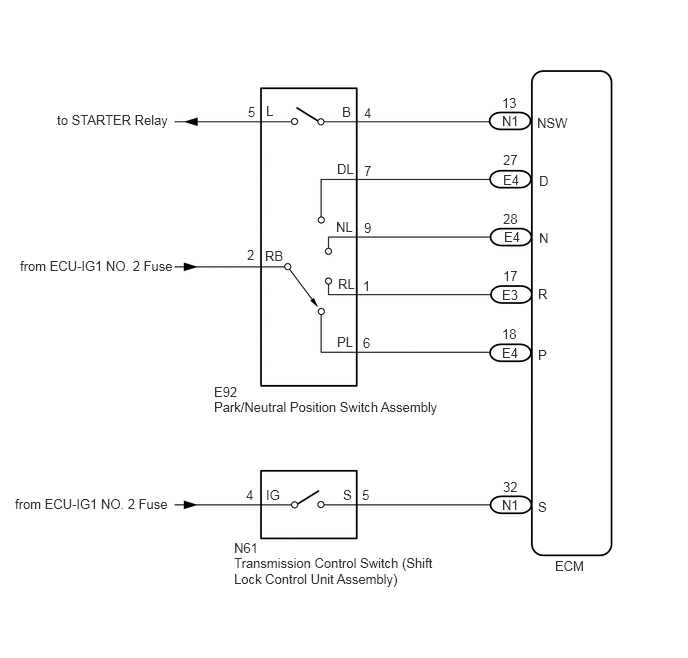

WIRING DIAGRAM

A349645E57
0.594,1.167 2.281,1.365 1.688,0.198 10 false to STARTER Relay 0.156,5.167 1.958,5.385 1.802,0.219 10 false from ECU-IG1 NO. 2 Fuse 2.583,1.083 2.906,1.292 0.323,0.208 10 false 5 2.573,2.573 2.896,2.781 0.323,0.208 10 false 2 2.771,1.073 3.094,1.281 0.323,0.208 10 false L 2.76,2.583 3.083,2.792 0.323,0.208 10 false RB 2.229,4 2.552,4.208 0.323,0.208 10 false E92 2.229,4.156 4.802,4.385 2.573,0.229 10 false Park/Neutral Position Switch Assembly 2.563,5.073 2.885,5.281 0.323,0.208 10 false 4 2.771,5.073 3.094,5.281 0.323,0.208 10 false IG 3.573,5.073 3.896,5.281 0.323,0.208 10 false S 3.771,5.073 4.094,5.281 0.323,0.208 10 false 5 2.438,5.625 2.76,5.833 0.323,0.208 10 false N61 2.438,5.781 4.583,6.198 2.146,0.417 10 false Transmission Control Switch (Shift Lock Control Unit Assembly) 5.229,5.177 5.552,5.385 0.323,0.208 10 false N1 5.24,4.99 5.563,5.198 0.323,0.208 10 false 32 5.604,5.198 5.927,5.406 0.323,0.208 10 false S 5.781,5.813 6.167,6.083 0.385,0.271 10 false ECM 3.51,3.479 3.833,3.688 0.323,0.208 10 false PL 3.521,2.875 3.844,3.083 0.323,0.208 10 false RL 3.5,2.281 3.823,2.49 0.323,0.208 10 false NL 3.51,1.677 3.833,1.885 0.323,0.208 10 false DL 3.563,1.083 3.885,1.292 0.323,0.208 10 false B 3.792,1.094 4.115,1.302 0.323,0.208 10 false 4 3.792,1.698 4.115,1.906 0.323,0.208 10 false 7 3.792,2.292 4.115,2.5 0.323,0.208 10 false 9 3.781,2.896 4.104,3.104 0.323,0.208 10 false 1 3.781,3.49 4.104,3.698 0.323,0.208 10 false 6 5.229,1.177 5.552,1.385 0.323,0.208 10 false N1 5.229,0.99 5.615,1.208 0.385,0.219 10 false 13 5.594,1.198 6.281,1.458 0.688,0.26 10 false NSW 5.24,1.583 5.646,1.792 0.406,0.208 10 false 27 5.24,1.792 5.563,2 0.323,0.208 10 false E4 5.25,2.385 5.573,2.594 0.323,0.208 10 false E4 5.229,2.99 5.552,3.198 0.323,0.208 10 false E3 5.229,3.594 5.552,3.802 0.323,0.208 10 false E4 5.24,2.198 5.635,2.406 0.396,0.208 10 false 28 5.24,2.792 5.656,3.01 0.417,0.219 10 false 17 5.229,3.396 5.625,3.594 0.396,0.198 10 false 18 5.615,1.802 5.938,2.01 0.323,0.208 10 false D 5.615,2.396 5.938,2.604 0.323,0.208 10 false N 5.604,2.979 5.927,3.188 0.323,0.208 10 false R 5.604,3.615 5.927,3.823 0.323,0.208 10 false P 0.208,2.688 2.01,2.906 1.802,0.219 10 false from ECU-IG1 NO. 2 Fuse

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.


HINT:

Using the GTS to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.


DATA LIST


a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Data List / Shift SW Status (P Range), Shift SW Status (R Range), Shift SW Status (N Range), Shift SW Status (N,P Range), Shift SW Status (S Range) and Shift SW Status (D Range).

Powertrain > Engine > Data List
Tester Display
Shift SW Status (P Range)
Shift SW Status (R Range)
Shift SW Status (N Range)
Shift SW Status (N,P Range)
Shift SW Status (S Range)
Shift SW Status (D Range)
50003 372 15,14,13,263,27,28

e.

Read the values displayed on the GTS.

GTS Display Measurement Item/Range Normal Condition Diagnostic Note
Shift SW Status (P Range) Park/Neutral position switch assembly status:
ON or OFF
·

ON: Shift lever in P

·

OFF: Shift lever not in P


-
Shift SW Status (R Range) Park/Neutral position switch assembly status:
ON or OFF
·

ON: Shift lever in R

·

OFF: Shift lever not in R


-
Shift SW Status (N Range) Park/Neutral position switch assembly status:
ON or OFF
·

ON: Shift lever in N

·

OFF: Shift lever not in N


-
Shift SW Status (N,P Range) Park/Neutral position switch assembly status:
ON or OFF
·

ON: Shift lever in N or P

·

OFF: Shift lever not in N or P


-
Shift SW Status (S Range) Transmission control switch status:
ON or OFF
·

ON: Shift lever in S

·

OFF: Shift lever not in S


-
Shift SW Status (D Range) Park/Neutral position switch assembly status:
ON or OFF
·

ON: Shift lever in D or S

·

OFF: Shift lever not in D or S


-



PROCEDURE

1.READ VALUE USING GTS (NEUTRAL POSITION SW AND SHIFT SW STATUS)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Data List / Neutral Position SW, Shift SW Status (P Range), Shift SW Status (R Range), Shift SW Status (N Range), Shift SW Status (N,P Range) and Shift SW Status (D Range).

Powertrain > Engine > Data List
Tester Display
Neutral Position SW
Shift SW Status (P Range)
Shift SW Status (R Range)
Shift SW Status (N Range)
Shift SW Status (N,P Range)
Shift SW Status (D Range)
50003 372 20,15,14,13,263,28

e.

According to the display on the GTS, read the Data List.

OK:
GTS Display Shift Lever Position Specified Condition
Neutral Position SW P or N ON
Except P or N OFF
Shift SW Status (P Range) P ON
Except P OFF
Shift SW Status (R Range) R ON
Except R OFF
Shift SW Status (N Range) N ON
Except N OFF
Shift SW Status (N,P Range) P or N ON
Except P or N OFF
Shift SW Status (D Range) D or S ON
Except D or S OFF



Result:
Proceed to
OK
NG



OK

2.READ VALUE USING GTS (SHIFT SW STATUS (S RANGE))

NG

6.CHECK TERMINAL VOLTAGE (POWER SOURCE OF PARK/NEUTRAL POSITION SWITCH ASSEMBLY)
2.READ VALUE USING GTS (SHIFT SW STATUS (S RANGE))
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Data List / Shift SW Status (S Range).

Powertrain > Engine > Data List
Tester Display
Shift SW Status (S Range)
50003 372 27

e.

According to the display on the GTS, read the Data List.

OK:
GTS Display Shift Lever Position Specified Condition
Shift SW Status (S Range) S ON
Except S OFF



Result:
Proceed to
OK
NG



OK

CHECK FOR INTERMITTENT PROBLEMS

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>CHECK FOR INTERMITTENT PROBLEMS


NG

3.INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY (TRANSMISSION CONTROL SWITCH)
3.INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY (TRANSMISSION CONTROL SWITCH)
a.

Inspect the transmission control switch.

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SHIFT LEVER>INSPECTION


Result:
Proceed to
OK
NG



OK

4.CHECK TERMINAL VOLTAGE (POWER SOURCE OF TRANSMISSION CONTROL SWITCH)

NG

REPLACE SHIFT LOCK CONTROL UNIT ASSEMBLY

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SHIFT LEVER>REMOVAL


4.CHECK TERMINAL VOLTAGE (POWER SOURCE OF TRANSMISSION CONTROL SWITCH)
A371978C29
0.385,1.031 0.781,1.313 0.396,0.281 2.125,1.781 1.958,1.344 true 0.458,1.083 0.917,1.281 0.458,0.198 10 false N61 0.125,0.083 0.438,0.281 0.313,0.198 10 false *a 2.104,1.833 2.448,2.094 0.344,0.26 10 false IG
*a Front view of wire harness connector
(to Transmission Control Switch)


a.

Disconnect the transmission control switch connector.


b.

Turn the ignition switch to ON.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
N61-4 (IG) - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

5.CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION CONTROL SWITCH POWER SOURCE CIRCUIT)

5.CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)
a.

Disconnect the transmission control switch connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N61-5 (S) - N1-32 (S) Always Below 1 Ω
N61-5 (S) or N1-32 (S) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK TERMINAL VOLTAGE (POWER SOURCE OF PARK/NEUTRAL POSITION SWITCH ASSEMBLY)
C321062C40
0.438,1 0.833,1.24 0.396,0.24 1.802,1.104 1.833,1.698 true 0.521,1.042 0.979,1.24 0.458,0.198 10 false E92 1.771,1.74 2.083,1.938 0.313,0.198 10 false RB 0.083,0.083 0.396,0.281 0.313,0.198 10 false *a
*a Front view of wire harness connector
(to Park/Neutral Position Switch Assembly)


a.

Disconnect the park/neutral position switch assembly connector.


b.

Turn the ignition switch to ON.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
E92-2 (RB) - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

7.INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY POWER SOURCE CIRCUIT)

7.INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
a.

Inspect the park/neutral position switch assembly.

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>PARK / NEUTRAL POSITION SWITCH>INSPECTION


Result:
Proceed to
OK
NG



OK

8.CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY - ECM)

NG

REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>PARK / NEUTRAL POSITION SWITCH>REMOVAL


8.CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY - ECM)
a.

Disconnect the park/neutral position switch assembly connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E92-4 (B) - N1-13 (NSW) Always Below 1 Ω
E92-7 (DL) - E4-27 (D) Always Below 1 Ω
E92-9 (NL) - E4-28 (N) Always Below 1 Ω
E92-1 (RL) - E3-17 (R) Always Below 1 Ω
E92-6 (PL) - E4-18 (P) Always Below 1 Ω
E92-4 (B) or N1-13 (NSW) - Body ground and other terminals Always 10 kΩ or higher
E92-7 (DL) or E4-27 (D) - Body ground and other terminals Always 10 kΩ or higher
E92-9 (NL) or E4-28 (N) - Body ground and other terminals Always 10 kΩ or higher
E92-1 (RL) or E3-17 (R) - Body ground and other terminals Always 10 kΩ or higher
E92-6 (PL) or E4-18 (P) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
